Hysteresis loop plot to visually inspect hysteresis

Hysteresis loop plot to visually inspect hysteresis

eda_hysteresis_loop_plot(
  data,
  ntime_col,
  deltaqtc_col,
  conc_col,
  dosef_col,
  group_col = NULL,
  reference_dose = NULL,
  show_hysteresis_warning = TRUE,
  style = list()
)

Arguments

data

A data frame containing C-QT analysis dataset

ntime_col

An unquoted column name for nominal time points

deltaqtc_col

An unquoted column name for dQTC measurements at the time points in NTLD

conc_col

An unquoted column name for drug concentrations at each NTLD

dosef_col

An unquoted column name for DOSE factors.

group_col

An unquoted column name for additional grouping column

reference_dose

Reference dose value for comparison calculations

show_hysteresis_warning

Boolean, if TRUE adds Hysteresis Detected to facet wrap label for groups with hysteresis detected

style

A named list of arguments passed to style_plot()

Value

a plot

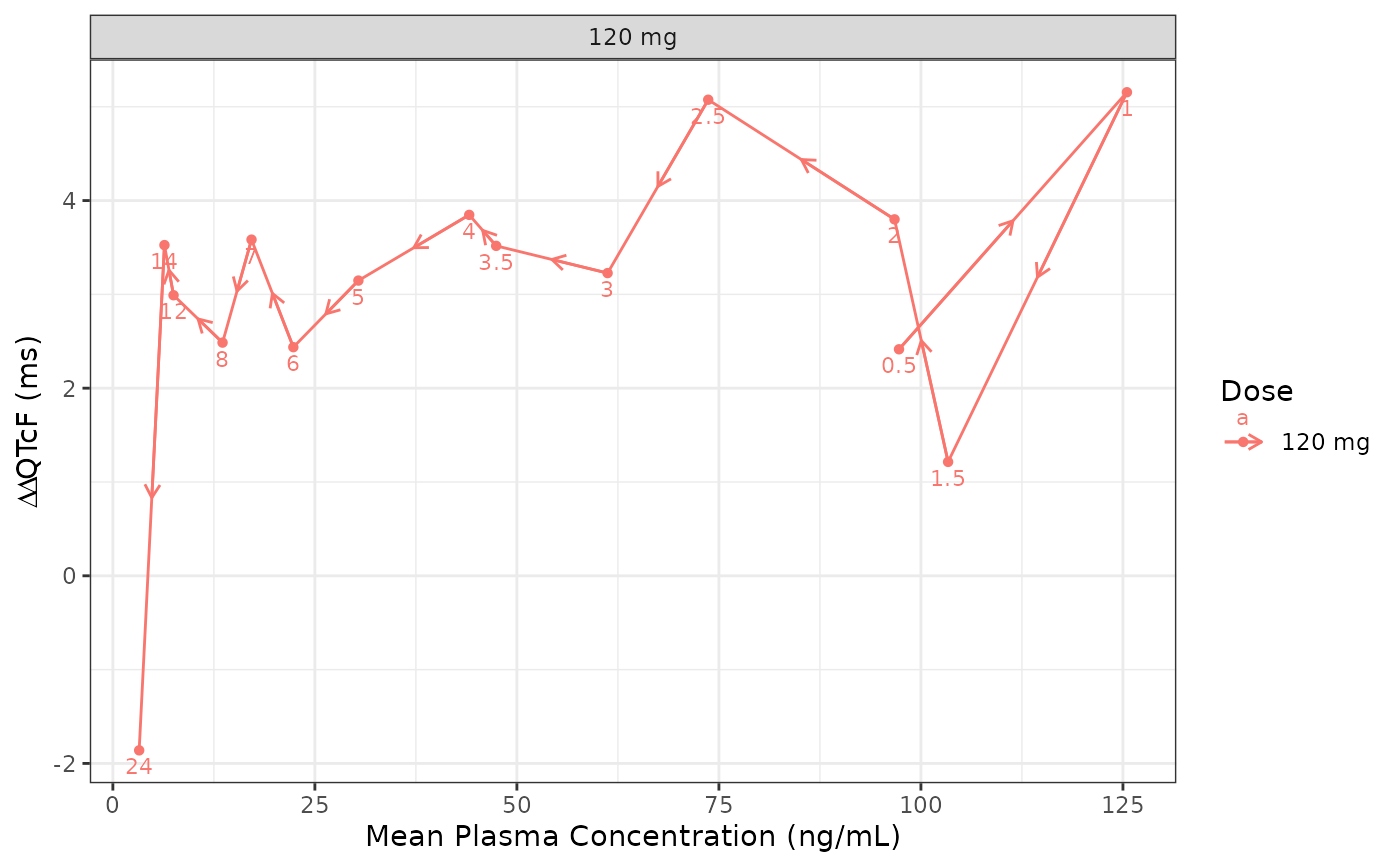

Examples

data_proc <- preprocess(cqtkit_data_verapamil)

eda_hysteresis_loop_plot(
  data_proc,
  NTLD,
  deltaQTCF,
  CONC,
  DOSEF,
  reference_dose = "0 mg",
  style = set_style(
    ylabel = bquote(Delta~Delta~"QTcF (ms)")
  )
)
