Plots mean dependent variable over time

Plots mean dependent variable over time

eda_mean_dv_over_time(
  data,
  dv_col,
  ntime_col,
  dosef_col,
  secondary_data_col = NULL,
  group_col = NULL,
  reference_dose = NULL,
  reference_threshold = NULL,
  conf_int = 0.9,
  scale_factor = NULL,
  shift_factor = NULL,
  error_bars = "CI",
  sec_ylabel = "Concentration (ng/mL)",
  style = list()
)

Arguments

data

A data frame containing C-QT analysis dataset

dv_col

An unquoted column name for dependent variable

ntime_col

An unquoted column name for nominal Time grouping

dosef_col

An unquoted column name for Dose grouping

secondary_data_col

Optional unquoted column name to overlay on secondary y-axis

group_col

An unquoted column name for additional grouping column

reference_dose

Reference dose value for comparison calculations

reference_threshold

Optional - a numeric or vector of numerics to add dashed lines to plot

conf_int

Numeric confidence interval level (default: 0.9)

scale_factor

Optional scale factor for scaling secondary_data_col

shift_factor

Optional additive factor for shifting secondary data

error_bars

A string for setting which errorbars are shown, CI, SE, SD

sec_ylabel

A string for secondary ylabel, default is Concentration (ng/mL)

style

A named list of arguments passed to style_plot(). Shapes are mapped to grouping variables and can be controlled via the shapes parameter in style

Value

a plot

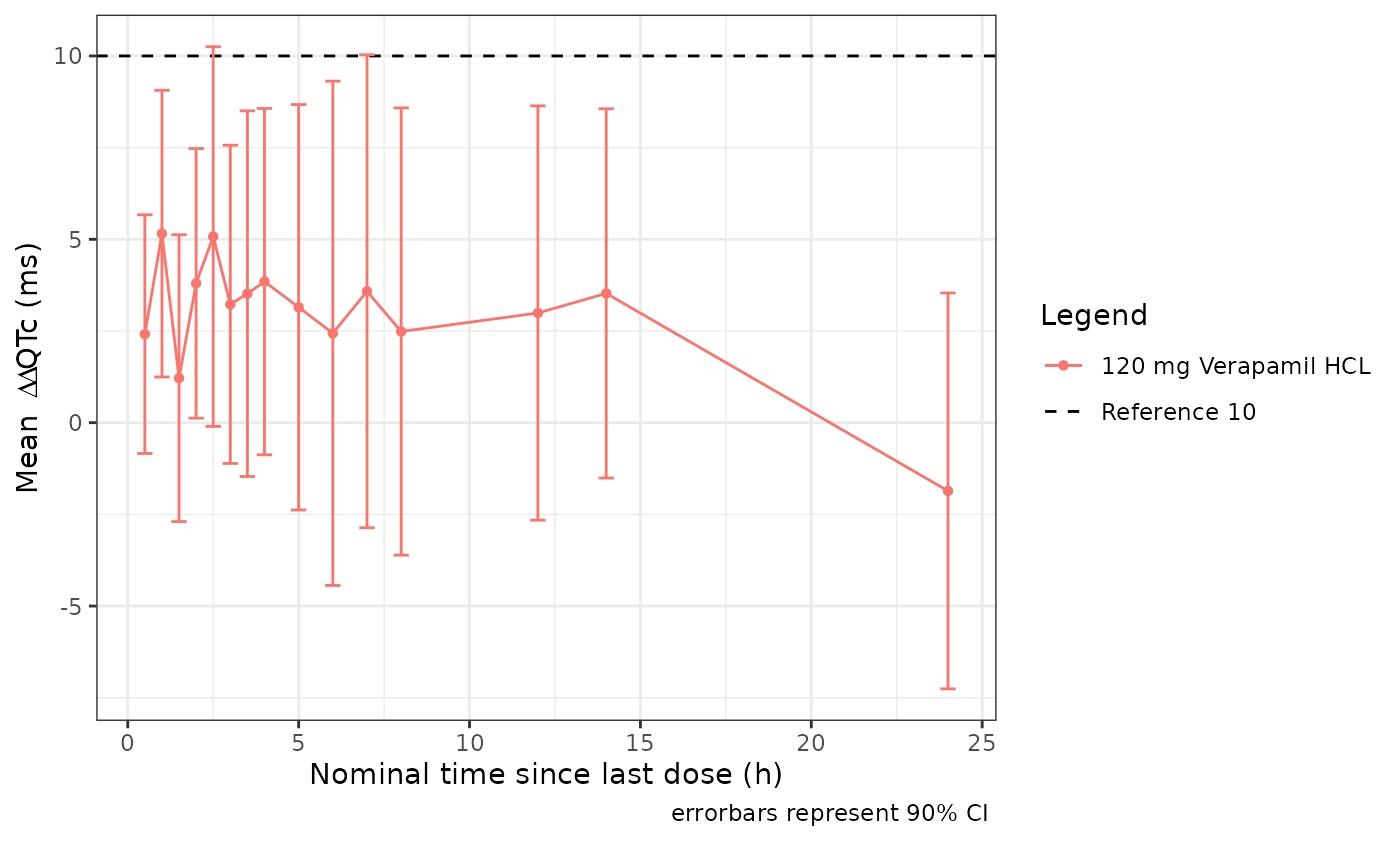

Examples

data_proc <- preprocess(cqtkit_data_verapamil)

eda_mean_dv_over_time(
  data_proc,
  deltaQTCF,
  NTLD,
  DOSEF,
  group_col = TRTG,
  reference_dose = "0 mg",
  reference_threshold = 10,
  style = set_style(ylabel = bquote('Mean '~Delta~Delta~'QTc (ms)')))
