Exponential, Matern and general covariance functions for 2-d gridded locations.

Given two sets of locations defined on a 2-d grid efficiently multiplies a cross covariance with a vector. The intermediate compuations (the setup) can also be used for fast simulation of the processes on a grid using the circulant embedding technique.

stationaryImageCov(ind1 = NULL, ind2 = NULL, Y, covObject = NULL, gridList = NULL,
    mKrigObject = NULL, setup = FALSE, M = NULL, cov.function = "stationary.cov",
    delta = NULL, cov.args = NULL, ...)

stationary.image.cov(ind1, ind2, Y, cov.obj = NULL, setup = FALSE,
grid, M=NULL,N=NULL,cov.function="stationary.cov", delta = NULL, cov.args = NULL, ...)

Exp.image.cov(ind1, ind2, Y, cov.obj = NULL, setup = FALSE, grid, ...)

Rad.image.cov(ind1, ind2, Y, cov.obj = NULL, setup = FALSE, grid, ...)

matern.image.cov(ind1, ind2, Y, cov.obj = NULL, setup = FALSE, grid,
M=NULL,N=NULL,aRange= 1.0, smoothness=.5, theta=NULL)

wendland.image.cov(ind1, ind2, Y, cov.obj = NULL,
    setup = FALSE, grid, M = NULL, N = NULL, cov.args=NULL, ...)

Arguments

ind1

Matrix of indices for first set of locations this is a two column matrix where each row is the row/column index of the image element. If missing the default is to use all grid locations.

ind2

Matrix of indices for second set of locations. If missing this is taken to be ind2. If ind1 is missing ind2 is coerced to be all grid locations.

Y

Vector to multiply by the cross covariance matrix. Y must be the same locations as those referred to by ind2.

cov.args

Any additional arguments or parameters to the covariance function.

cov.obj

A list with the information needed to do the multiplication by convolutions. This is usually found by using the returned list when setup=T.

covObject

Same as cov.obj above.

cov.function

Name of the (stationary) covariance function.

setup

If true do not do the multiplication but just return the covariance object required by this function.

delta

A distance that indicates the range of the covariance when it has compact support. For example this is the aRange parameter in the Wendland covariance.

grid

A grid list giving the X and Y grids for the image. (See example below.) This is only required if setup is true.

gridList

Same as grid above.

M

For stationaryImageCov a vector of two integers that are the desired size for the larger grid to to facilitate the computation. If NULL then this is chosen to be at least twice the grid size and powers of 2 and 3.

For stationary.image.cov Size of x-grid used to compute multiplication (see notes on image.smooth for details) by the FFT. If NULL, the default for M is the largest power of 2 greater than or equal to 2*m where m is the length of the x component of the grid.

In either case this will give an exact result but smaller values of M will yield an approximate, faster result.

mKrigObject

The fit object from spatialProcess or mKrig. This is in place of specifying the covariance parameters individually.

N

Size of y-grid used to compute multiplication by the FFT for stationary.image.cov

aRange

Scale parameter for Matern.

theta

Same as aRange.

smoothness

Smoothness parameter for Matern (.5=Exponential)

...

Any arguments to pass to the covariance function in setting up the covariance object. This is only required if setup is TRUE. For stationary.image.cov one can include V a matrix reflecting a rotation and scaling of coordinates. See stationary.cov for details.

Value

A vector that is the multiplication of the cross covariance matrix with the vector Y.

Details

This function was provided to do fast computations for large numbers of spatial locations. In doing so the observations can be irregular spaced but their coordinates must be 2-dimensional and be restricted to grid points. (The function as.image will take irregular, continuous coordinates and overlay a grid on them.)

Returned value: If ind1 and ind2 are matrices where nrow(ind1)=m and nrow(ind2)=n then the cross covariance matrix, Sigma, is an mXn matrix (i,j) element is the covariance between the grid locations indexed at ind1[i,] and ind2[j,]. The returned result is Sigma multiplied by Y. Note that one can always recover the coordinates themselves by evaluating the grid list at the indices. E.g. If x and y are the grids for the X and Y dimensions, cbind( x[ind1[,1]], y[ind1[,2])) will give the coordinates associated with ind1. Clearly it is better just to work with ind1!

Functional Form: Following the same form as Exp.cov stationary.cov for irregular locations, the covariance is defined as phi( D.ij) where D.ij is the Euclidean distance between x1[i,] and x2[j,] but having first been scaled by aRange. Specifically,

D.ij = sqrt( sum.k (( x1[i,k] - x2[j,k]) /aRange[k])**2 ).

See Matern for the version of phi for the Matern family.

Note that if aRange is a scalar then this defines an isotropic covariance function.

Implementation: This function does the multiplication on the full grid efficiently by a 2-d FFT. The irregular pattern in Y is handled by padding with zeroes and once that multiplication is done only the appropriate subset is returned.

NOTE: stationary.imageCov is the current version and should be used in stead of the older stationary.image.cov

As an example assume that the grid is 100X100 let big.Sigma denote the big covariance matrix among all grid points ( If the parent grid is 100x100 then big.Sigma is 10K by 10K !) Here are the algorithmic steps:

temp<- matrix( 0, 100,100)

temp[ ind2] <- Y

temp2<- big.Sigma%*% temp

temp2[ind1]

Here the matrix multiplication is effected through fast convolution/FFT exploiting stationarity and avoids creating and multiplying big.Sigma explicitly. It is often faster to multiply the regular grid and throw away the parts we do not need then to deal directly with the irregular set of locations.

Note: In this entire discussion Y is treated as vector. However if one has complete data then Y can also be interpreted as a image matrix conformed to correspond to spatial locations. See the last example for this distinction.

Examples

# multiply 2-d isotropic exponential with aRange=4 by a random vector

junk<- matrix(rnorm(50*100), 50,100)
gridList<- list( x= seq(0,1,length.out=50),
     y= seq(-1,1,length.out=100) )

covObject<- stationaryImageCov( setup=TRUE,
Covariance="Matern",
smoothness=1.0,
aRange=.08,
             gridList=gridList)

result<-  stationaryImageCov(Y=junk, covObject=covObject)

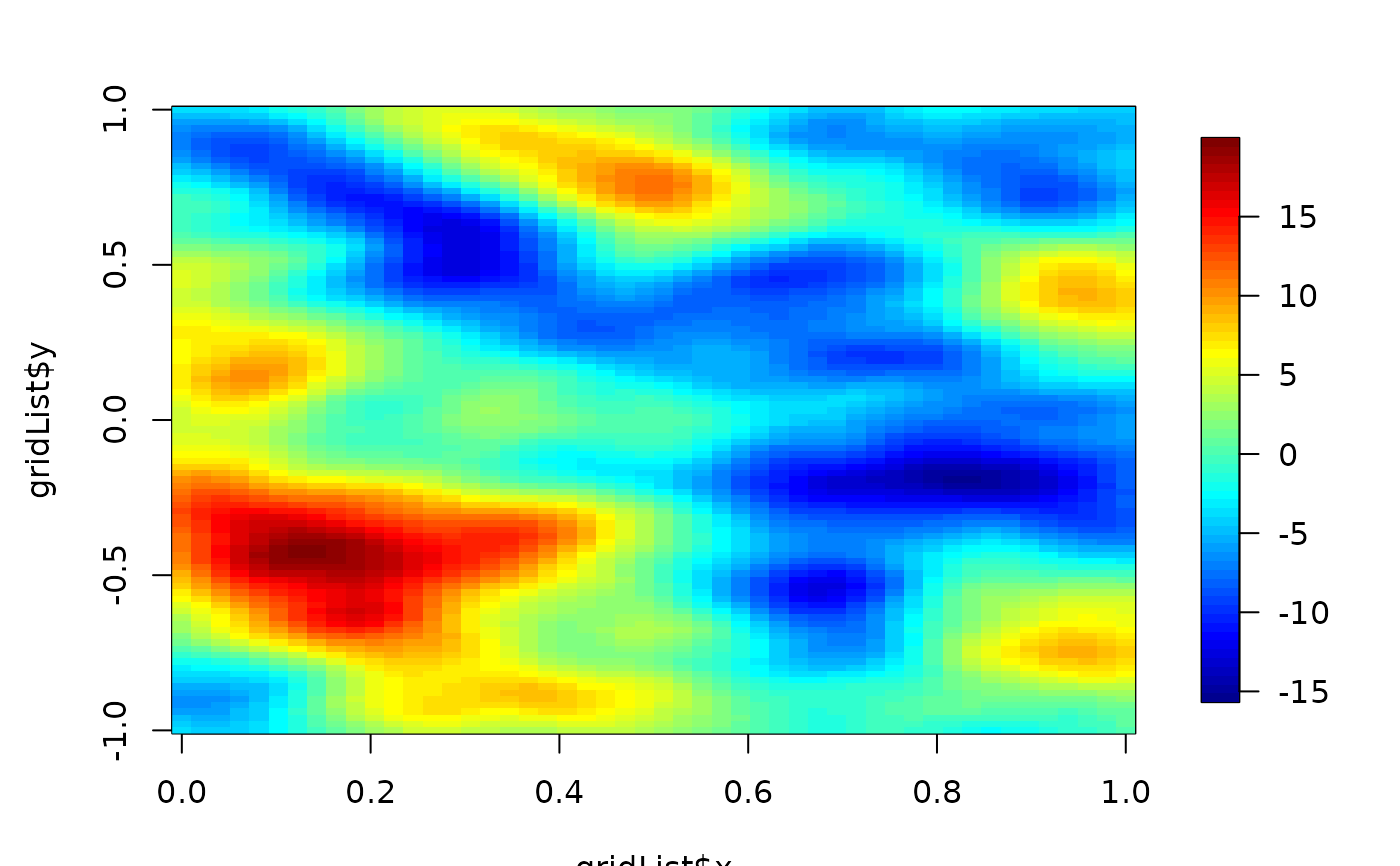

imagePlot(gridList$x,gridList$y, result ) # NOTE that is also a smoother!


# to do it again, no setup is needed
#  e.g.
#  junk2<- matrix(rnorm(100**2, 100,100))
#  result2<-  stationaryImageCov(Y=junk2, cov.obj=cov.obj)

# generate a grid and set of indices based on discretizing the locations
# in the precip dataset

 out<-as.image( RMprecip$y, x= RMprecip$x)
 ind1<- out$ind
 gridList<- list( x= out$x, y=out$y)

#
# discretized x locations  to use for comparison
  xd<- cbind( out$x[ out$ind[,1]], out$y[ out$ind[,2]] )

# setup to create cov.obj for exponential covariance with range= 1.25

 covObject<- stationaryImageCov( setup=TRUE, gridList=gridList, aRange=1.25)

# multiply covariance matrix by an arbitrary vector
 junk<-  rnorm(nrow( ind1))
 result<- stationaryImageCov( ind1, ind1, Y= junk,covObject=covObject)

# The brute force way would be
#   result<- stationary.cov( xd, xd, aRange=1.25, C=junk)
# or
#   result<- stationary.cov( xd, xd, aRange=1.25) %*% junk
# both of these take much longer


# evaluate the covariance between all grid points and the center grid point
mGrid<- covObject$m
 Y<- matrix(0,mGrid[1], mGrid[2])
 Y[32,32]<- 1
 result<- stationaryImageCov( Y= Y,covObject=covObject)

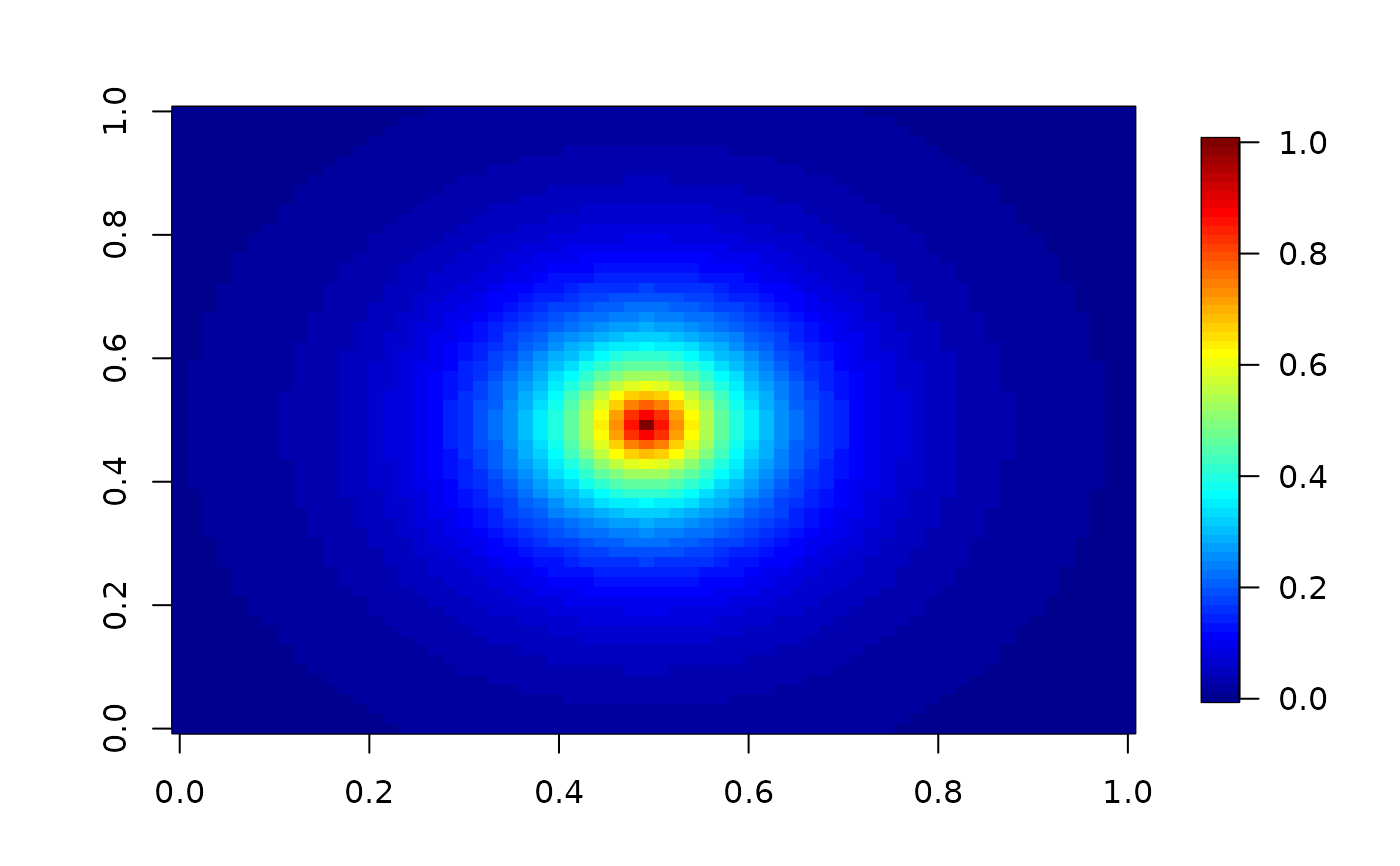

# covariance surface with respect to the grid point at (32,32)
#
# reshape "vector" as an image
 temp<-  matrix( result, mGrid[1],mGrid[2])
 imagePlot( temp)
