round rectangle borders and backgrounds

Usage

element_roundrect(
  fill = NULL,
  colour = NULL,
  linewidth = NULL,
  linetype = NULL,
  color = NULL,
  r = grid::unit(0.1, "snpc"),
  inherit.blank = FALSE
)

Arguments

fill: Fill colour. fill_alpha() can be used to set the transparency of the fill.
colour, color: Line/border colour. Color is an alias for colour. alpha() can be used to set the transparency of the colour.
linewidth: Line/border size in mm
linetype: Line type for lines and borders respectively. An integer (0:8), a name (blank, solid, dashed, dotted, dotdash, longdash, twodash), or a string with an even number (up to eight) of hexadecimal digits which give the lengths in consecutive positions in the string.
r: the radius of the rounded corners, a unit object, default is unit(0.1, 'snpc').
inherit.blank: Should this element inherit the existence of an element_blank among its parents? If TRUE the existence of a blank element among its parents will cause this element to be blank as well. If FALSE any blank parent element will be ignored when calculating final element state.

Examples

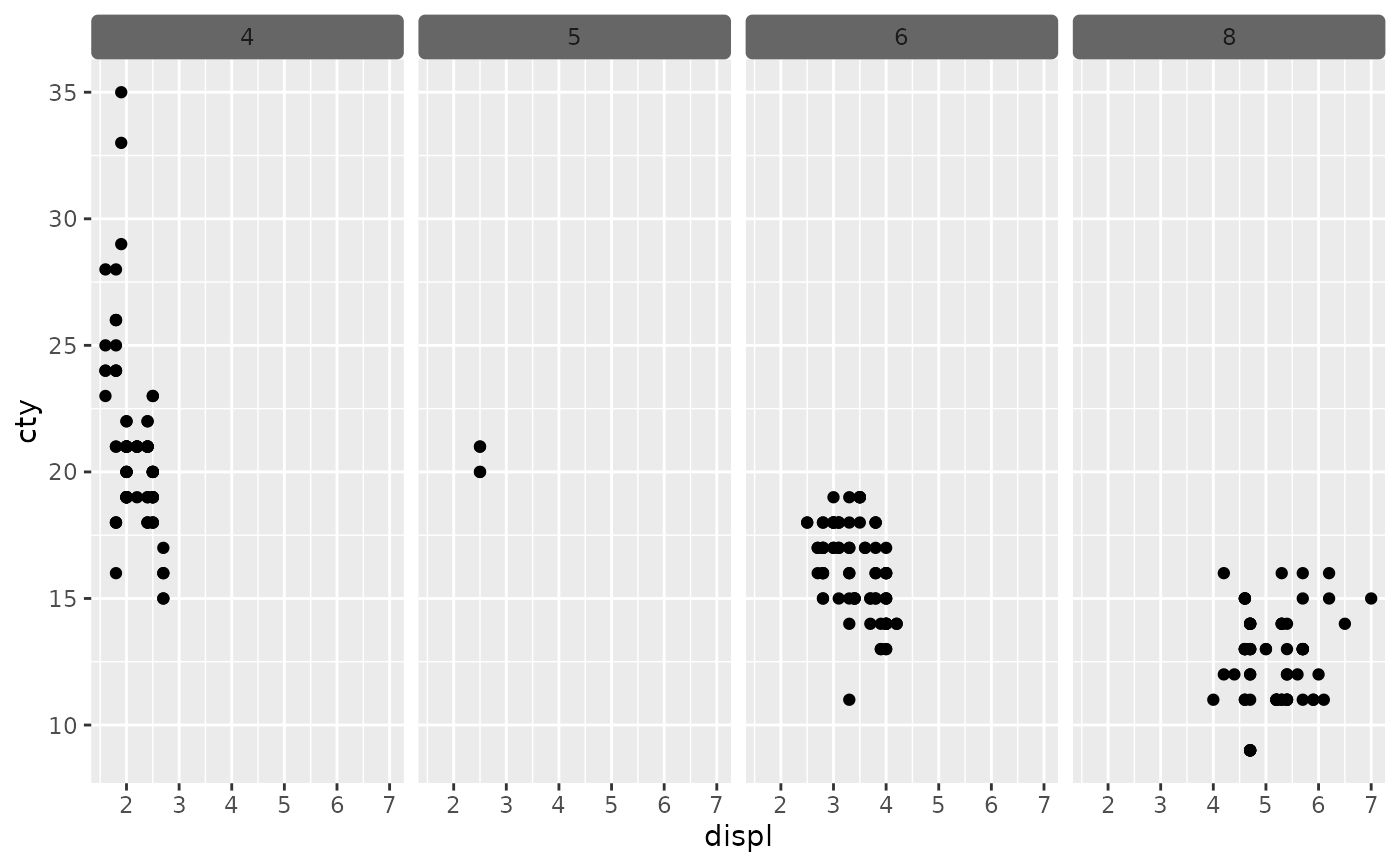

library(ggplot2)
p <- ggplot(mpg, aes(displ, cty)) + geom_point()
p <- p + facet_grid(cols = vars(cyl))
p <- p + theme(strip.background=element_roundrect(fill="grey40", color=NA, r=0.15))
p

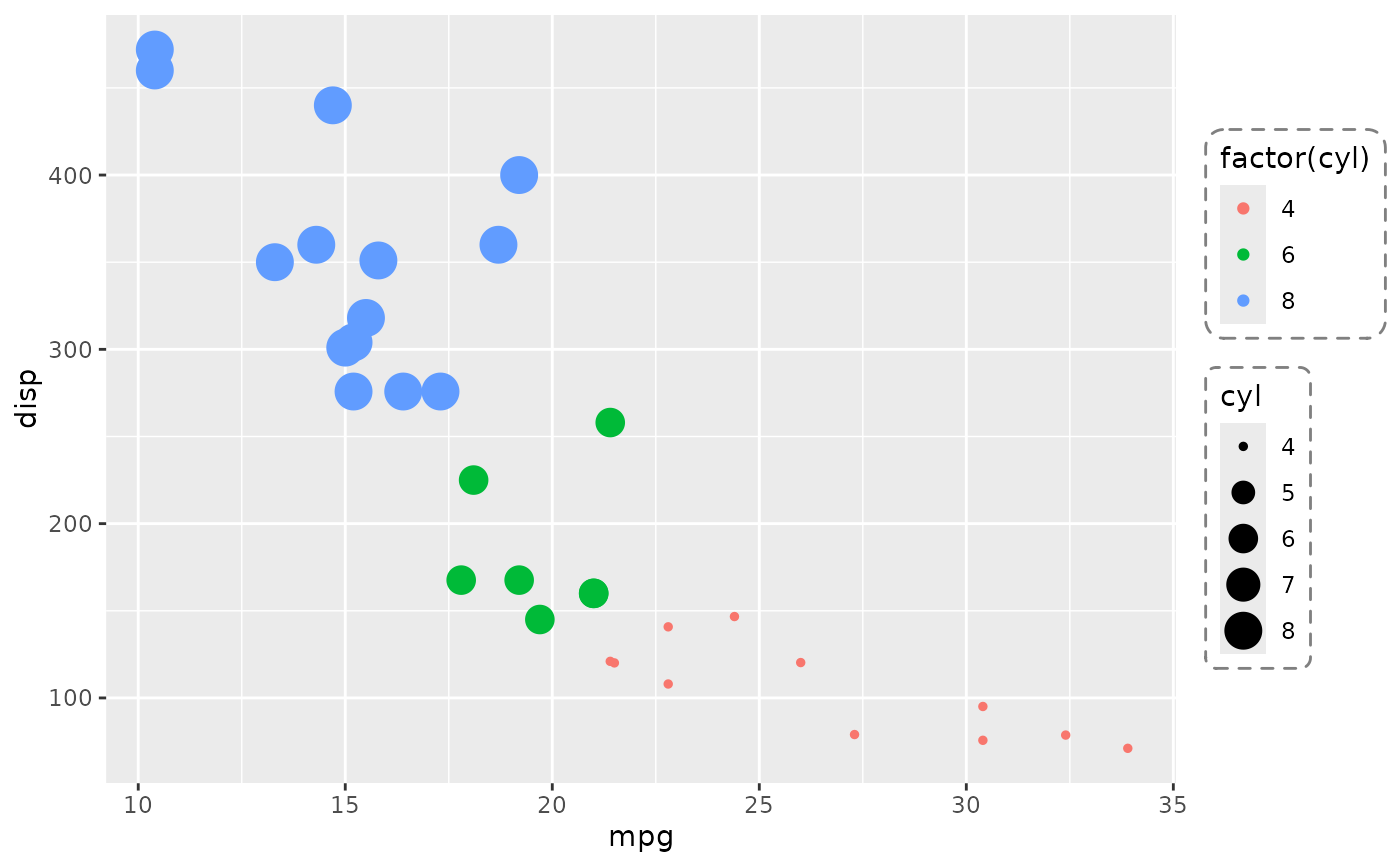

p2 <- ggplot(mtcars, aes(mpg, disp, color=factor(cyl), size=cyl)) +
      geom_point()
p2 + theme(legend.background=element_roundrect(color="#808080", linetype=2))
