Polar coordinates

The polar coordinate system is most commonly used for pie charts, which are a stacked bar chart in polar coordinates. coord_radial() has extended options.

coord_polar(theta = "x", start = 0, direction = 1, clip = "on")

coord_radial(
  theta = "x",
  start = 0,
  end = NULL,
  expand = TRUE,
  direction = 1,
  clip = "off",
  r.axis.inside = NULL,
  rotate.angle = FALSE,
  inner.radius = 0,
  r_axis_inside = deprecated(),
  rotate_angle = deprecated()
)

Arguments

theta: variable to map angle to (x or y)
start: Offset of starting point from 12 o'clock in radians. Offset is applied clockwise or anticlockwise depending on value of direction.
direction: 1, clockwise; -1, anticlockwise
clip: Should drawing be clipped to the extent of the plot panel? A setting of "on" (the default) means yes, and a setting of "off" means no. For details, please see coord_cartesian().
end: Position from 12 o'clock in radians where plot ends, to allow for partial polar coordinates. The default, NULL, is set to start + 2 * pi.
expand: If TRUE, the default, adds a small expansion factor the the limits to prevent overlap between data and axes. If FALSE, limits are taken directly from the scale.
r.axis.inside: If TRUE, places the radius axis inside the panel. If FALSE, places the radius axis next to the panel. The default, NULL, places the radius axis outside if the start and end arguments form a full circle.
rotate.angle: If TRUE, transforms the angle aesthetic in data in accordance with the computed theta position. If FALSE (default), no such transformation is performed. Can be useful to rotate text geoms in alignment with the coordinates.
inner.radius: A numeric between 0 and 1 setting the size of a inner.radius hole.
r_axis_inside, rotate_angle

Note

In coord_radial(), position guides are can be defined by using guides(r = ..., theta = ..., r.sec = ..., theta.sec = ...). Note that these guides require r and theta as available aesthetics. The classic guide_axis() can be used for the r positions and guide_axis_theta() can be used for the theta positions. Using the theta.sec position is only sensible when inner.radius > 0.

Examples

# NOTE: Use these plots with caution - polar coordinates has
# major perceptual problems.  The main point of these examples is
# to demonstrate how these common plots can be described in the
# grammar.  Use with EXTREME caution.

#' # A pie chart = stacked bar chart + polar coordinates
pie <- ggplot(mtcars, aes(x = factor(1), fill = factor(cyl))) +
 geom_bar(width = 1)

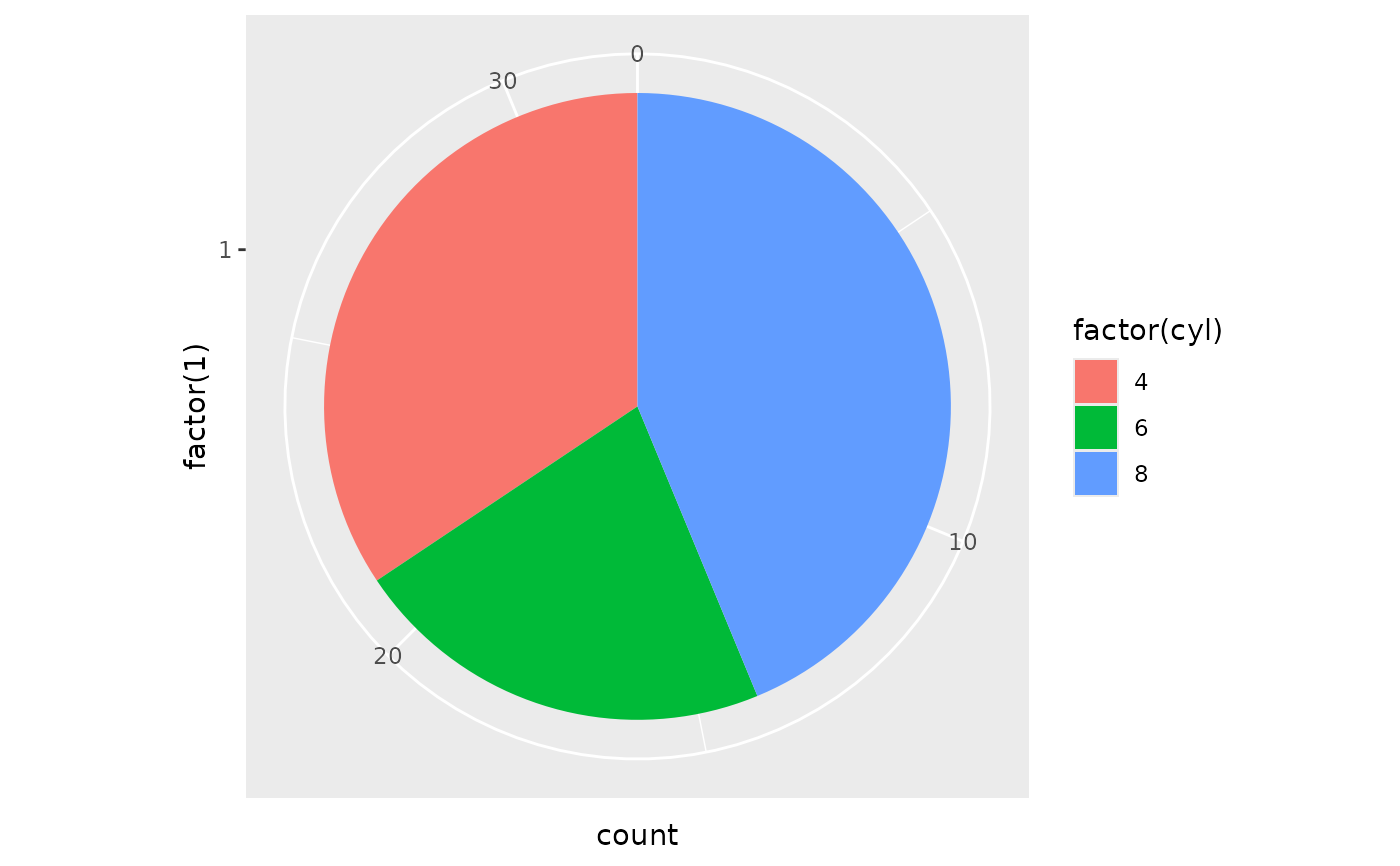

pie + coord_polar(theta = "y")


# \donttest{

# A coxcomb plot = bar chart + polar coordinates
cxc <- ggplot(mtcars, aes(x = factor(cyl))) +
  geom_bar(width = 1, colour = "black")

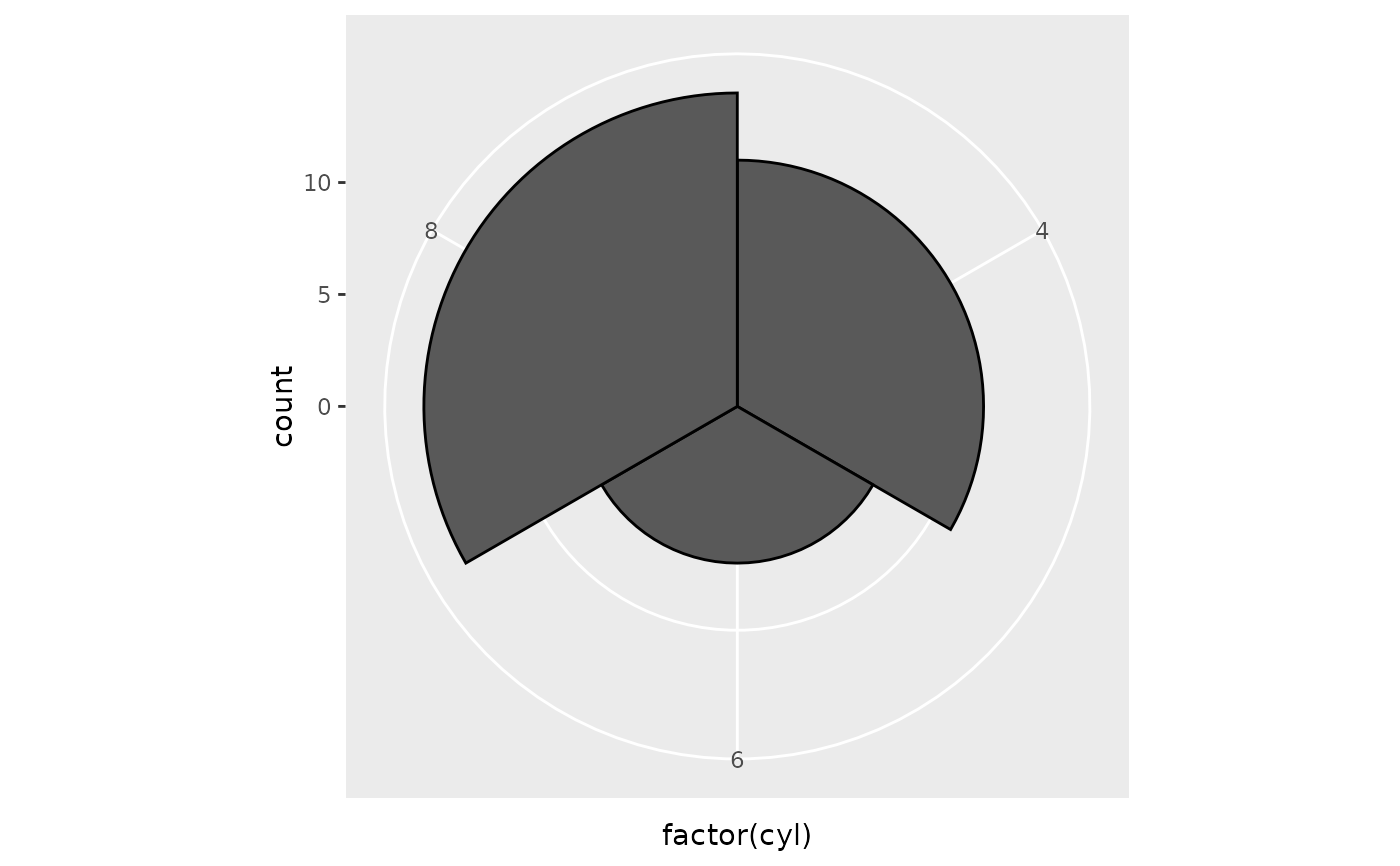

cxc + coord_polar()

# A new type of plot?

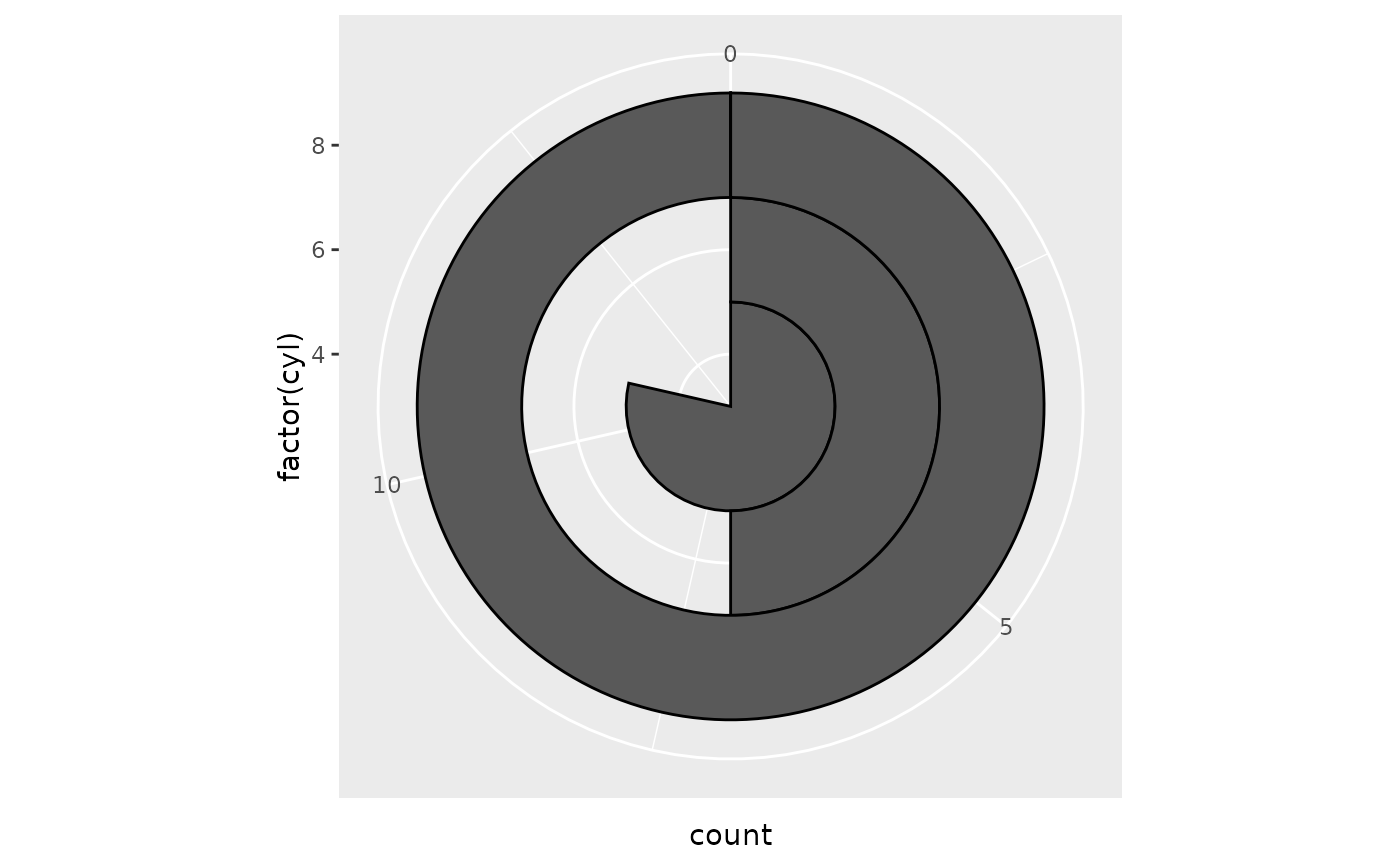

cxc + coord_polar(theta = "y")


# The bullseye chart

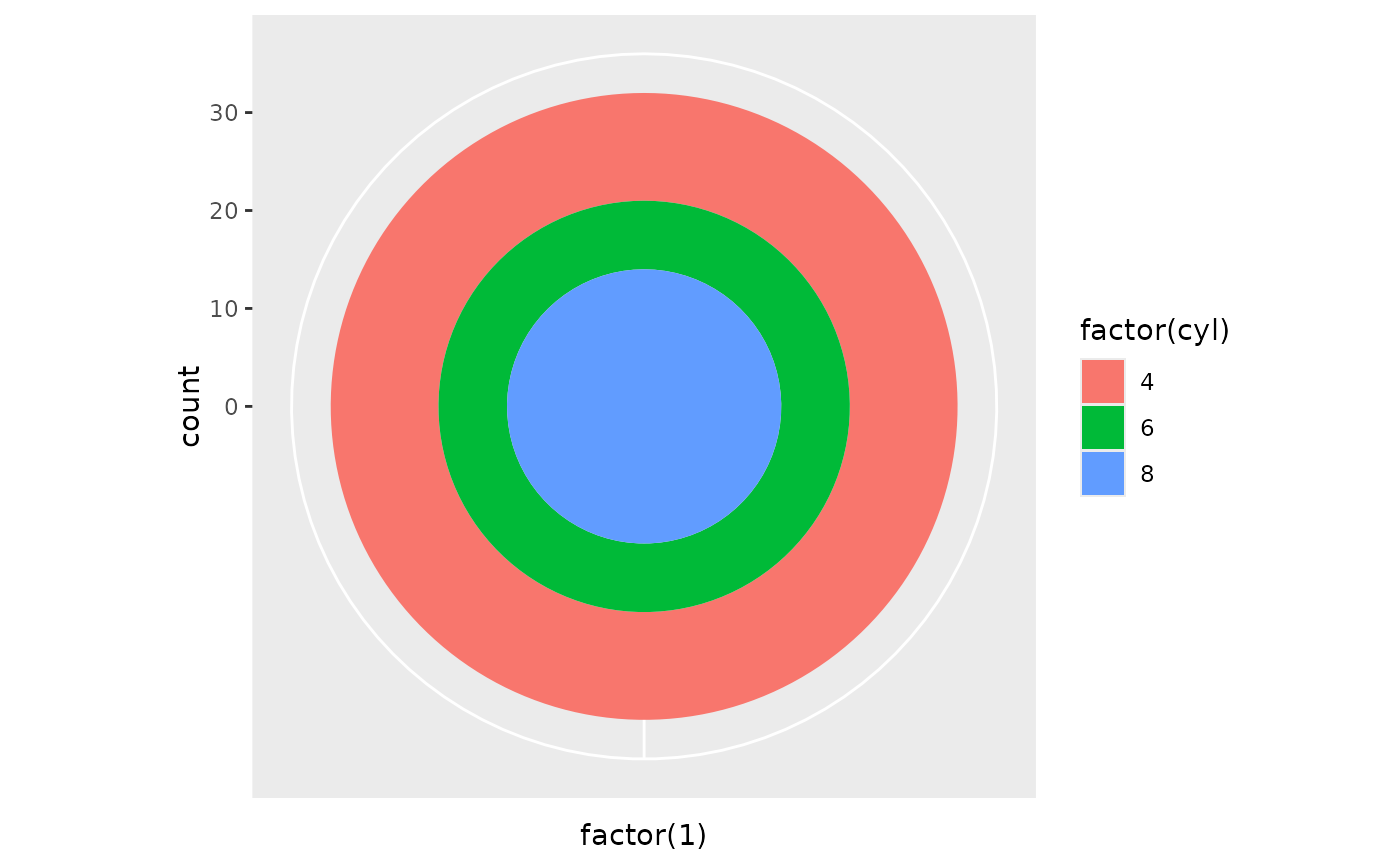

pie + coord_polar()


# Hadley's favourite pie chart
df <- data.frame(
  variable = c("does not resemble", "resembles"),
  value = c(20, 80)
)
ggplot(df, aes(x = "", y = value, fill = variable)) +
  geom_col(width = 1) +
  scale_fill_manual(values = c("red", "yellow")) +
  coord_polar("y", start = pi / 3) +

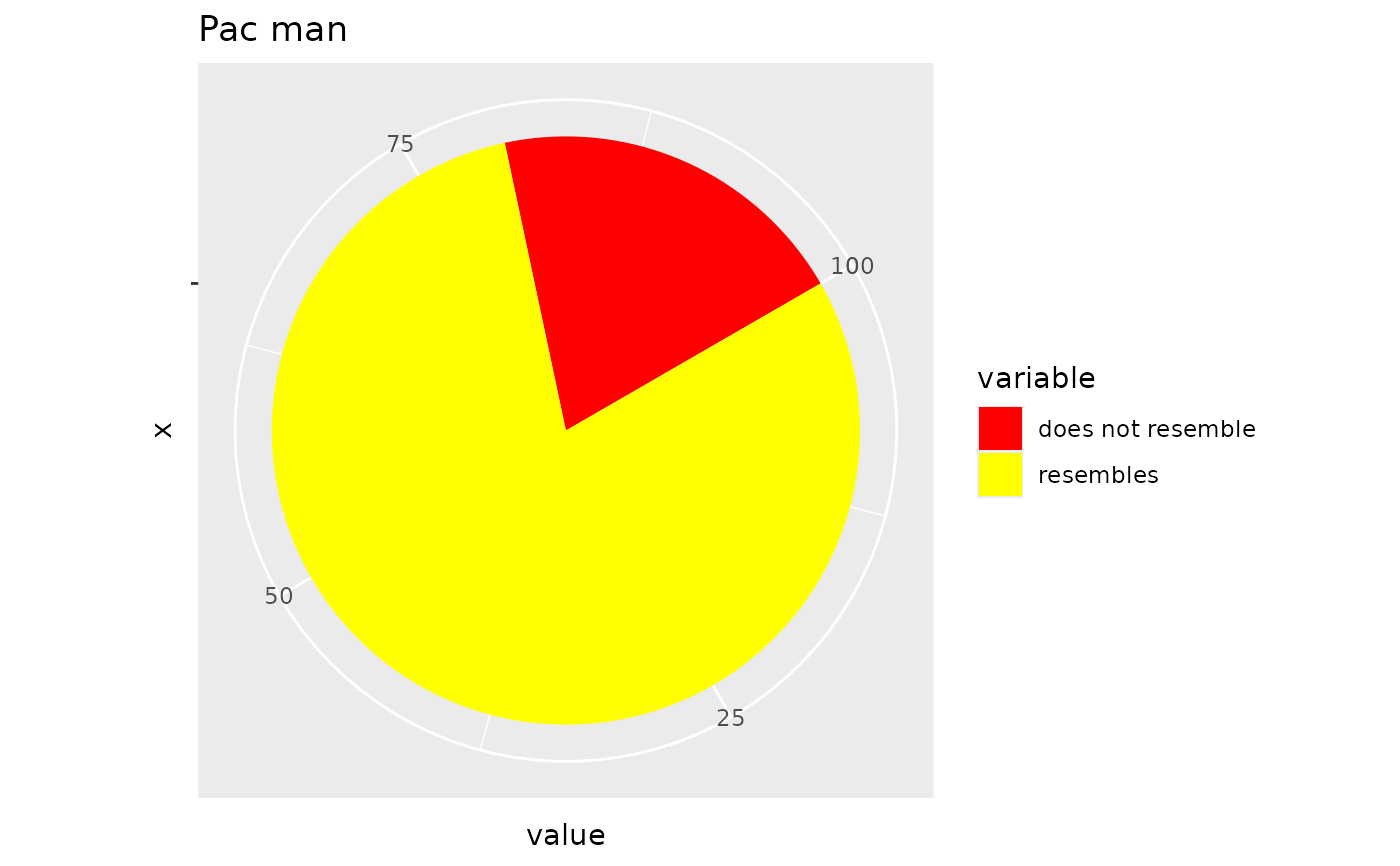

  labs(title = "Pac man")


# Windrose + doughnut plot
if (require("ggplot2movies")) {
movies$rrating <- cut_interval(movies$rating, length = 1)
movies$budgetq <- cut_number(movies$budget, 4)

doh <- ggplot(movies, aes(x = rrating, fill = budgetq))

# Wind rose

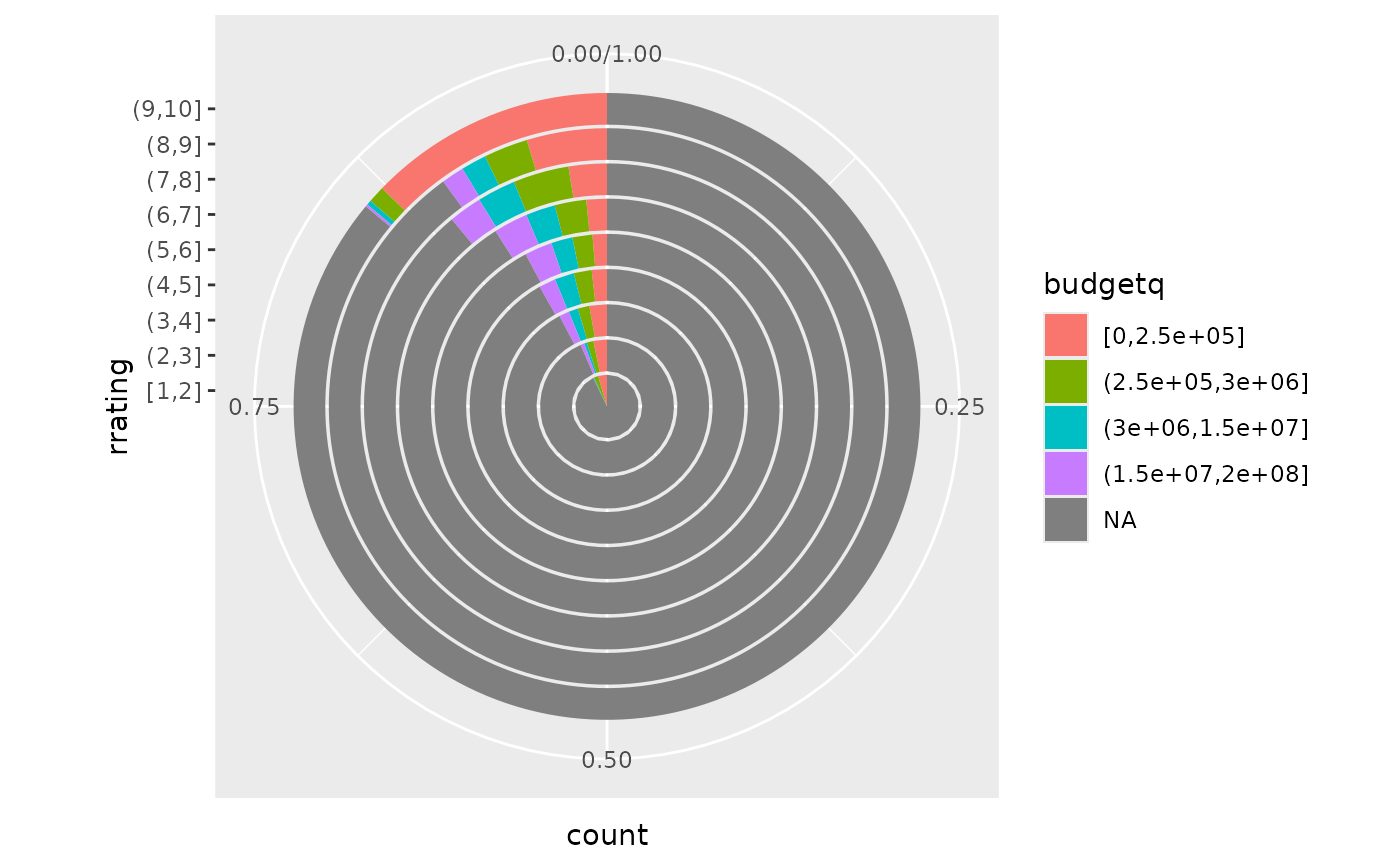

doh + geom_bar(width = 1) + coord_polar()
# Race track plot
doh + geom_bar(width = 0.9, position = "fill") + coord_polar(theta = "y")
}
#> Loading required package: ggplot2movies

# }
# A partial polar plot
ggplot(mtcars, aes(disp, mpg)) +
  geom_point() +

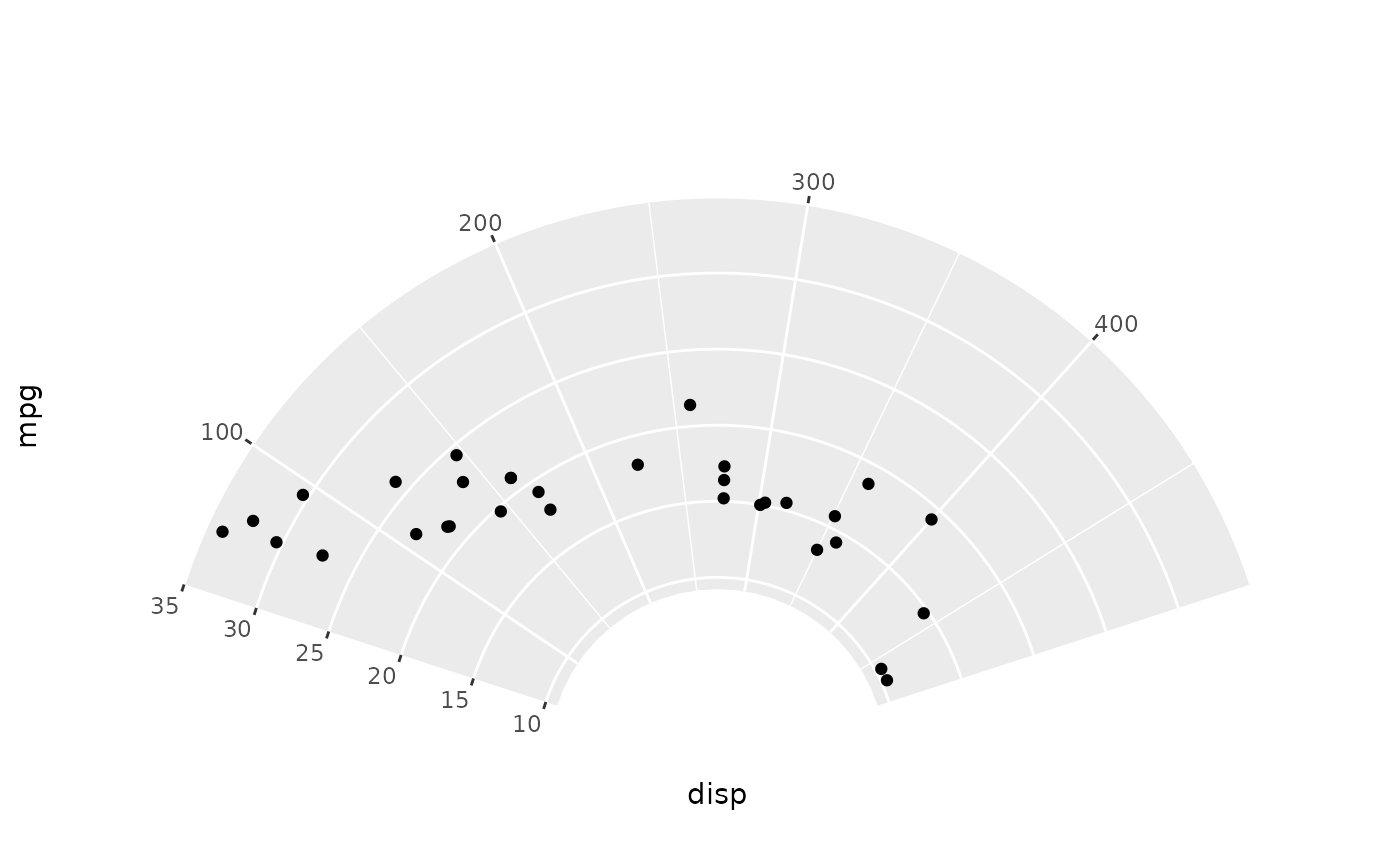

  coord_radial(start = -0.4 * pi, end = 0.4 * pi, inner.radius = 0.3)
