Add layout to graph — add_layout_ • igraph

Add layout to graph

add_layout_(graph, ..., overwrite = TRUE)

Arguments

graph: The input graph.
...: Additional arguments are passed to layout_().
overwrite: Whether to overwrite the layout of the graph, if it already has one.

Value

The input graph, with the layout added.

See also

layout_() for a description of the layout API.

Other graph layouts: component_wise(), layout_(), layout_as_bipartite(), layout_as_star(), layout_as_tree(), layout_in_circle(), layout_nicely(), layout_on_grid(), layout_on_sphere(), layout_randomly(), layout_with_dh(), layout_with_fr(), layout_with_gem(), layout_with_graphopt(), layout_with_kk(), layout_with_lgl(), layout_with_mds(), layout_with_sugiyama(), merge_coords(), norm_coords(), normalize()

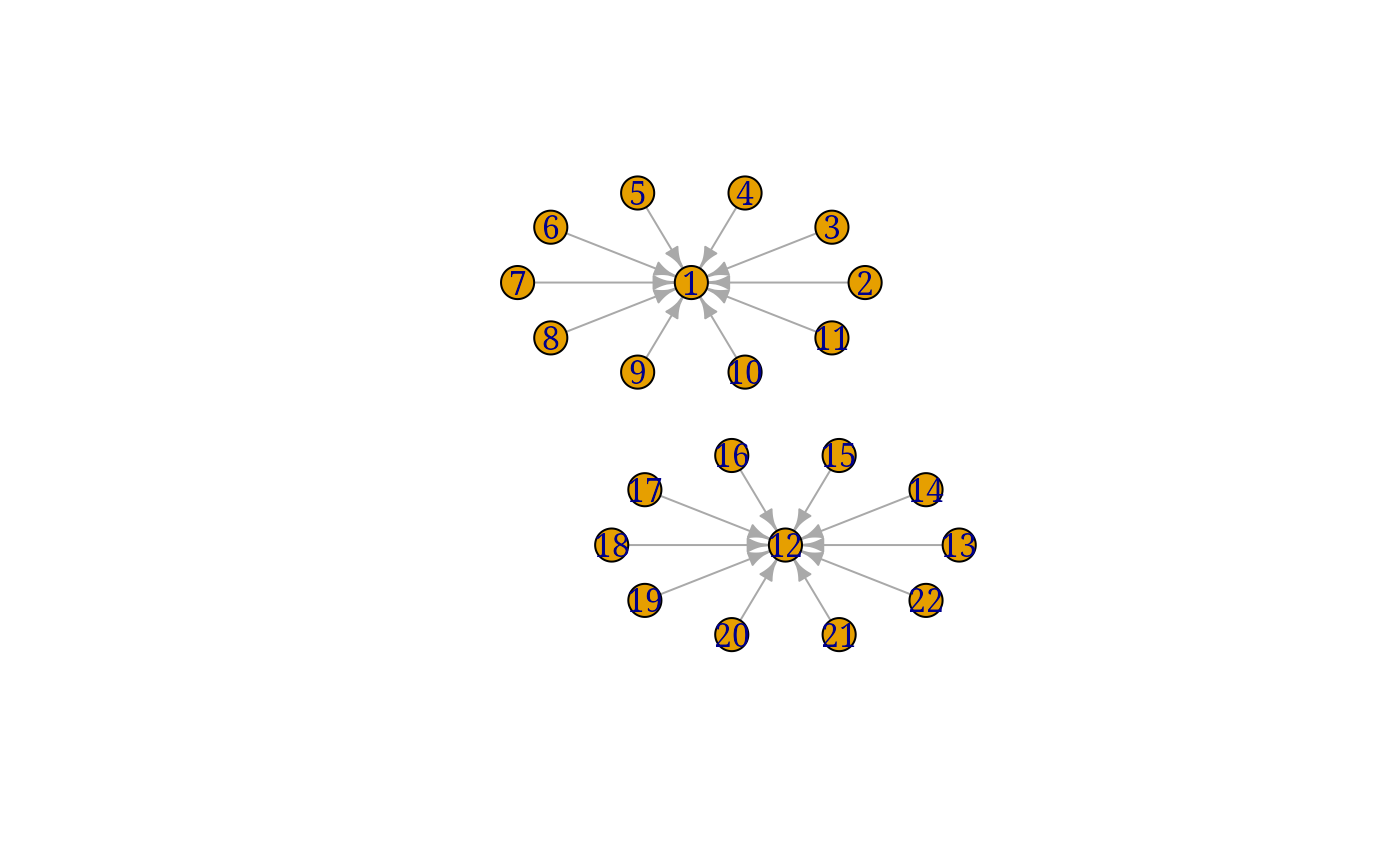

Examples

(make_star(11) + make_star(11)) %>%
  add_layout_(as_star(), component_wise()) %>%
  plot()
