X-Y GOF-plot

X-Y GOF plot with reflines and data smoother and with caption added as reurned by get.caption

do.one.GOF(
  data,
  x,
  y,
  color = "",
  add.loess = TRUE,
  refline = c("abline", "href0", "hrefmean", "hrefmedian", "none"),
  title = "",
  lines.by.id = FALSE,
  id.column = "ID",
  fx = NULL,
  fy = NULL,
  control = GOF.control()
)

Arguments

data

data.frame to plot

x

character string with name of column for x

y

character string with name of column for y

color

data columns to set different colors in plot, interpreted as factor

add.loess

add loess smoother to plot (TRUE), or not (FALSE)

refline

add reference line with intercept=0, slope=1 (abline), horizontal at y=0( href0), horizontal at y=mean of y( hrefmean), horizontal at y=median of y( hrefmedian), or don't add reference line (none)

title

title

lines.by.id

connect subjects by lines (TRUE), or don't (FALSE)

id.column

column name that indicate subject identifier

fx

function for transformation of x before plotting

fy

function for transformation of y before plotting

control

an optional list of control settings. See GOF.control for the names of the settable control values and their effect.

Examples

# Get path to the example files included in nonmem2R package
file1 <- system.file("extdata", "sdtab999", package = "nonmem2R")
sdtab<-read.table(file=file1,skip=1,header=TRUE)
set.script.name("MyScript.R")

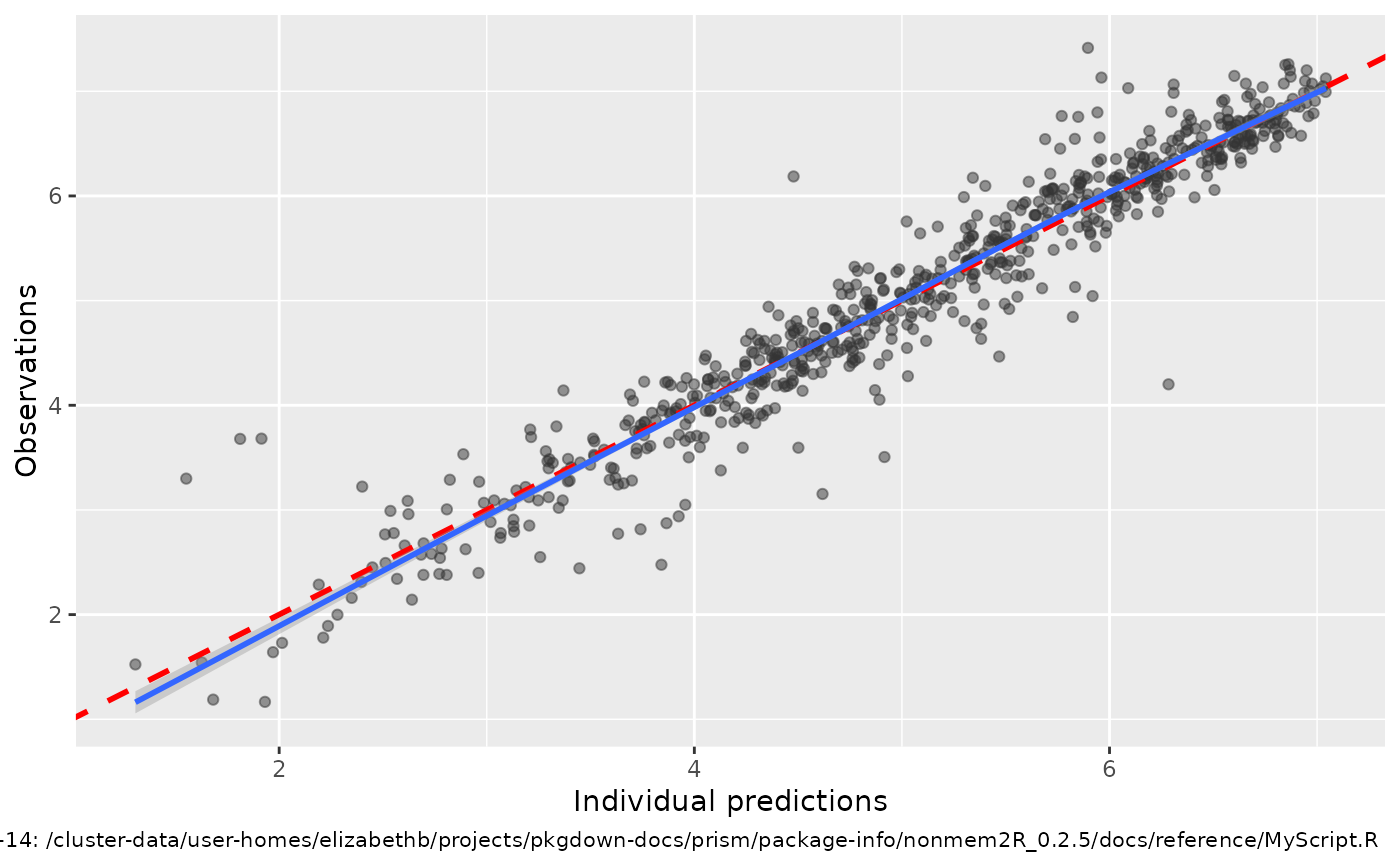

do.one.GOF(subset(sdtab,DV>0),"IPRED","DV")
#> `geom_smooth()` using formula = 'y ~ x'
