Convert a NONMEM source file to a rxode model (nlmixr2-syle)

nonmem2rx(
  file,
  inputData = NULL,
  nonmemOutputDir = NULL,
  rename = NULL,
  tolowerLhs = TRUE,
  thetaNames = TRUE,
  etaNames = TRUE,
  cmtNames = TRUE,
  updateFinal = TRUE,
  determineError = TRUE,
  validate = getOption("nonmem2rx.validate", TRUE),
  nonmemData = FALSE,
  strictLst = FALSE,
  unintFixed = FALSE,
  extended = getOption("nonmem2rx.extended", FALSE),
  nLinesPro = 20L,
  delta = 1e-04,
  usePhi = TRUE,
  useExt = TRUE,
  useCov = TRUE,
  useXml = TRUE,
  useLst = TRUE,
  mod = ".mod",
  cov = ".cov",
  phi = ".phi",
  lst = getOption("nonmem2rx.lst", ".lst"),
  xml = ".xml",
  ext = ".ext",
  scanLines = getOption("nonmem2rx.scanLines", 50L),
  save = getOption("nonmem2rx.save", NA),
  saveTime = getOption("nonmem2rx.saveTime", 15),
  overwrite = getOption("nonmem2rx.overwrite", TRUE),
  load = getOption("nonmem2rx.load", TRUE),
  compress = getOption("nonmem2rx.compress", TRUE),
  keep = getOption("nonmem2rx.keep", c("dfSub", "dfObs", "thetaMat", "sigma"))
)

Arguments

file

NONMEM run file, like an .xml or .lst file or even a control stream

inputData

this is a path to the input dataset (or NULL to determine from the dataset). Often the input dataset may be different from the place it points to in the control stream because directories can be created to run NONMEM from a script. Because of this, when this is specified the input data will be assumed to be from here instead.

nonmemOutputDir

This is a path the the nonmem output directory. When not NULL it will assume that the diretory for the output files is located here instead of where the control stream currently exists.

rename

When not NULL this should be a named character vector that contains the parameters that should be renamed. For example, if the model uses the variable YTYPE and has CMT it isn't compatible with rxode2/nlmixr2. You can change this for the input dataset and the model to create a new model that still reproduces the NONMEM output by specifying rename=c(dvid="YTYPE")

tolowerLhs

Boolean to change the lhs to lower case (default: TRUE)

thetaNames

this could be a boolean indicating that the theta names should be changed to the comment-labeled names (default: TRUE). This could also be a character vector of the theta names (in order) to be replaced.

etaNames

this could be a boolean indicating that the eta names should be changed to the comment-labeled names (default: TRUE). This could also be a character vector of the theta names (in order) to be replaced.

cmtNames

this could be a boolean indicating that the compartment names should be changed to the named compartments in the $MODEL by COMP = (name) (default: TRUE). This could also be a character vector of the compartment names (in order) to be replaced.

updateFinal

Update the parsed model with the model estimates from the .lst output file.

determineError

Boolean to try to determine the nlmixr2-style residual error model (like ipred ~ add(add.sd)), otherwise endpoints are not defined in the rxode2/nlmixr2 model (default: TRUE)

validate

Boolean that this tool will attempt to "validate" the model by solving the derived model under pred conditions (etas are zero and eps values are zero)

nonmemData

Boolean that tells nonmem2rx to read in the nonmem data (if possible) even if the model will not be validated (like if it is a simulation run or missing final parameter estimates). By default this is FALSE, nonmem data will not be integrated into the nonmem2rx ui.

strictLst

The list parsing needs to be correct for a successful load (default FALSE).

unintFixed

Treat uninteresting values as fixed parameters (default FALSE)

extended

Translate extended control streams from tools like wings for NONMEM

nLinesPro

The number of lines to check for the $PROBLEM statement.

delta

this is the offset for NONMEM times that are tied

usePhi

if present, use the NONMEM phi file to extract etas (default TRUE), otherwise defaults to etas in the tables (if present)

useExt

if present, use the NONMEM ext file to extract parameter estimates (default TRUE), otherwise defaults to parameter estimates extracted in the NONMEM output

useCov

if present, use the NONMEM cov file to import the covariance, otherwise import the covariance with list file

useXml

if present, use the NONMEM xml file to import much of the NONMEM information

useLst

if present, use the NONMEM lst file to extract NONMEM information

mod

the NONMEM output extension, defaults to .mod

cov

the NONMEM covariance file extension, defaults to .cov

phi

the NONMEM eta/phi file extension, defaults to .phi

lst

the NONMEM output extension, defaults to .lst

xml

the NONMEM xml file extension , defaults to .xml

ext

the NONMEM ext file extension, defaults to .ext

scanLines

number of lines to scan for comment chars when IGNORE=@, default is 50

save

This can be:

a NULL (meaning don't save),
a logical (default FALSE, don't save) that when TRUE will use the base name of the control stream, append .qs and save the file using qs::qsave()
A path to a file to write

Note that this file will be saved with qs::qsave() and can be loaded with qs::qread()
A NA value which means save if the whole process (including validation) takes too much time

saveTime

The time that the translation/validation needs (in secs) before it will save to avoid having to rerun the model (default 15 for 15 seconds)

overwrite

is a boolean to allow overwriting the save file (see load for more information).

load

a boolean that says to load the save file (if it exists) instead of re-running the translation and validation. Note if overwrite=TRUE and load=TRUE then this will overwrite based on time stamp of the files. If the save file is newer than the input file, then load that file, otherwise regenerate and overwrite. This works best if you point to an output file, like a .xml or listing file instead of the control stream

compress

a boolean indicating if the UI should be a compressed UI. If you are using this for simulation with old versions of rxode2, the compressed ui is not supported, so this should be FALSE. Otherwise use TRUE if you are using a newer rxode2.

keep

is a character vector of imported model items that are kept in the model itself; The defaults is "sigma" which keeps the sigma matrix in the model itself. You can add rxode2 solving options that are imported from NONMEM to keep in the model.

Value

rxode2 function

Details

Since some of these options you may want to set per project, the following options are queried:

nonmem2rx.validate - boolean to validate the model (default: TRUE)
nonmem2rx.lst - default extension for output (default: .lst)
nonmem2rx.save - should nonmem2rx save the model output?
nonmem2rx.overwrite - should nonmem2rx save output be overwritten (default TRUE)
nonmem2rx.load - should nonmem2rx load a saved model instead of translating and validating again? (default TRUE)
nonmem2rx.extended - should nonmem2rx support extended control streams? (default FALSE)
nonmem2rx.compress - should the ui be compressed or uncompressed (default: TRUE)

Examples


# You can run a translation without validating the input.  This is
# a faster way to import a dataset (and allows the CRAN machines to
# run a quick example)

mod <- nonmem2rx(system.file("mods/cpt/runODE032.ctl", package="nonmem2rx"), lst=".res",
                save=FALSE, validate=FALSE, compress=FALSE)
#> ℹ getting information from  '/tmp/RtmpIKfpyU/temp_libpath2ba6ad543cde5e/nonmem2rx/mods/cpt/runODE032.ctl'
#> ℹ reading in xml file
#> ℹ done
#> ℹ reading in ext file
#> ℹ done
#> ℹ reading in phi file
#> ℹ done
#> ℹ reading in lst file
#> ℹ abbreviated list parsing
#> ℹ done
#> ℹ done
#> ℹ splitting control stream by records
#> ℹ done
#> ℹ Processing record $INPUT
#> ℹ Processing record $MODEL
#> ℹ Processing record $gTHETA
#> ℹ Processing record $OMEGA
#> ℹ Processing record $SIGMA
#> ℹ Processing record $PROBLEM
#> ℹ Processing record $DATA
#> ℹ Processing record $SUBROUTINES
#> ℹ Processing record $PK
#> ℹ Processing record $DES
#> ℹ Processing record $ERROR
#> ℹ Processing record $ESTIMATION
#> ℹ Ignore record $ESTIMATION
#> ℹ Processing record $COVARIANCE
#> ℹ Ignore record $COVARIANCE
#> ℹ Processing record $TABLE
#> ℹ change initial estimate of `theta1` to `1.37034036528946`
#> ℹ change initial estimate of `theta2` to `4.19814911033061`
#> ℹ change initial estimate of `theta3` to `1.38003493562413`
#> ℹ change initial estimate of `theta4` to `3.87657341967489`
#> ℹ change initial estimate of `theta5` to `0.196446108190896`
#> ℹ change initial estimate of `eta1` to `0.101251418415006`
#> ℹ change initial estimate of `eta2` to `0.0993872449483344`
#> ℹ change initial estimate of `eta3` to `0.101302674763154`
#> ℹ change initial estimate of `eta4` to `0.0730497519364148`
#> ℹ changing most variables to lower case
#> ℹ done
#> ℹ replace theta names
#> ℹ done
#> ℹ replace eta names
#> ℹ done (no labels)
#> ℹ renaming compartments
#> ℹ done

# \donttest{

# Though by default you likely wish to validate the input

mod <- nonmem2rx(system.file("mods/cpt/runODE032.ctl", package="nonmem2rx"),
                 lst=".res", save=FALSE)
#> ℹ getting information from  '/tmp/RtmpIKfpyU/temp_libpath2ba6ad543cde5e/nonmem2rx/mods/cpt/runODE032.ctl'
#> ℹ reading in xml file
#> ℹ done
#> ℹ reading in ext file
#> ℹ done
#> ℹ reading in phi file
#> ℹ done
#> ℹ reading in lst file
#> ℹ abbreviated list parsing
#> ℹ done
#> ℹ done
#> ℹ splitting control stream by records
#> ℹ done
#> ℹ Processing record $INPUT
#> ℹ Processing record $MODEL
#> ℹ Processing record $gTHETA
#> ℹ Processing record $OMEGA
#> ℹ Processing record $SIGMA
#> ℹ Processing record $PROBLEM
#> ℹ Processing record $DATA
#> ℹ Processing record $SUBROUTINES
#> ℹ Processing record $PK
#> ℹ Processing record $DES
#> ℹ Processing record $ERROR
#> ℹ Processing record $ESTIMATION
#> ℹ Ignore record $ESTIMATION
#> ℹ Processing record $COVARIANCE
#> ℹ Ignore record $COVARIANCE
#> ℹ Processing record $TABLE
#> ℹ change initial estimate of `theta1` to `1.37034036528946`
#> ℹ change initial estimate of `theta2` to `4.19814911033061`
#> ℹ change initial estimate of `theta3` to `1.38003493562413`
#> ℹ change initial estimate of `theta4` to `3.87657341967489`
#> ℹ change initial estimate of `theta5` to `0.196446108190896`
#> ℹ change initial estimate of `eta1` to `0.101251418415006`
#> ℹ change initial estimate of `eta2` to `0.0993872449483344`
#> ℹ change initial estimate of `eta3` to `0.101302674763154`
#> ℹ change initial estimate of `eta4` to `0.0730497519364148`
#> ℹ read in nonmem input data (for model validation): /tmp/RtmpIKfpyU/temp_libpath2ba6ad543cde5e/nonmem2rx/mods/cpt/Bolus_2CPT.csv
#> ℹ ignoring lines that begin with a letter (IGNORE=@)'
#> ℹ applying names specified by $INPUT
#> ℹ subsetting accept/ignore filters code: .data[-which((.data$SD == 0)),]
#> ℹ done
#>
#>
#> using C compiler: ‘gcc (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0’
#> ℹ read in nonmem IPRED data (for model validation): /tmp/RtmpIKfpyU/temp_libpath2ba6ad543cde5e/nonmem2rx/mods/cpt/runODE032.csv
#> ℹ done
#> ℹ changing most variables to lower case
#> ℹ done
#> ℹ replace theta names
#> ℹ done
#> ℹ replace eta names
#> ℹ done (no labels)
#> ℹ renaming compartments
#> ℹ done
#>
#>
#> using C compiler: ‘gcc (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0’
#> ℹ solving ipred problem
#> ℹ done
#> ℹ solving pred problem
#> ℹ done

mod
#>  ── rxode2-based free-form 2-cmt ODE model ──────────────────────────────────────
#>  ── Initalization: ──
#> Fixed Effects ($theta):
#>    theta1    theta2    theta3    theta4       RSV
#> 1.3703404 4.1981491 1.3800349 3.8765734 0.1964461
#>
#> Omega ($omega):
#>           eta1       eta2      eta3       eta4
#> eta1 0.1012514 0.00000000 0.0000000 0.00000000
#> eta2 0.0000000 0.09938724 0.0000000 0.00000000
#> eta3 0.0000000 0.00000000 0.1013027 0.00000000
#> eta4 0.0000000 0.00000000 0.0000000 0.07304975
#>
#> States ($state or $stateDf):
#>   Compartment Number Compartment Name
#> 1                  1          CENTRAL
#> 2                  2             PERI
#>  ── μ-referencing ($muRefTable): ──
#>    theta  eta level
#> 1 theta1 eta1    id
#> 2 theta2 eta2    id
#> 3 theta3 eta3    id
#> 4 theta4 eta4    id
#>
#>  ── Model (Normalized Syntax): ──
#> function() {
#>     description <- "BOLUS_2CPT_CLV1QV2 SINGLE DOSE FOCEI (120 Ind/2280 Obs) runODE032"
#>     dfObs <- 2280
#>     dfSub <- 120
#>     sigma <- lotri({
#>         eps1 ~ 1
#>     })
#>     thetaMat <- lotri({
#>         theta1 ~ c(theta1 = 0.000887681)
#>         theta2 ~ c(theta1 = -0.00010551, theta2 = 0.000871409)
#>         theta3 ~ c(theta1 = 0.000184416, theta2 = -0.000106195,
#>             theta3 = 0.00299336)
#>         theta4 ~ c(theta1 = -0.000120234, theta2 = -5.06663e-05,
#>             theta3 = 0.000165252, theta4 = 0.00121347)
#>         RSV ~ c(theta1 = 5.2783e-08, theta2 = -1.56562e-05, theta3 = 5.99331e-06,
#>             theta4 = -2.53991e-05, RSV = 9.94218e-06)
#>         eps1 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0)
#>         eta1 ~ c(theta1 = -4.71273e-05, theta2 = 4.69667e-05,
#>             theta3 = -3.64271e-05, theta4 = 2.54796e-05, RSV = -8.16885e-06,
#>             eps1 = 0, eta1 = 0.000169296)
#>         omega.2.1 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0)
#>         eta2 ~ c(theta1 = -7.37156e-05, theta2 = 2.56634e-05,
#>             theta3 = -8.08349e-05, theta4 = 1.37e-05, RSV = -4.36564e-06,
#>             eps1 = 0, eta1 = 8.75181e-06, omega.2.1 = 0, eta2 = 0.00015125)
#>         omega.3.1 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0, eta2 = 0,
#>             omega.3.1 = 0)
#>         omega.3.2 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0, eta2 = 0,
#>             omega.3.1 = 0, omega.3.2 = 0)
#>         eta3 ~ c(theta1 = 6.63383e-05, theta2 = -8.19002e-05,
#>             theta3 = 0.000548985, theta4 = 0.000168356, RSV = 1.59122e-06,
#>             eps1 = 0, eta1 = 3.48714e-05, omega.2.1 = 0, eta2 = 4.31593e-07,
#>             omega.3.1 = 0, omega.3.2 = 0, eta3 = 0.000959029)
#>         omega.4.1 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0, eta2 = 0,
#>             omega.3.1 = 0, omega.3.2 = 0, eta3 = 0, omega.4.1 = 0)
#>         omega.4.2 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0, eta2 = 0,
#>             omega.3.1 = 0, omega.3.2 = 0, eta3 = 0, omega.4.1 = 0,
#>             omega.4.2 = 0)
#>         omega.4.3 ~ c(theta1 = 0, theta2 = 0, theta3 = 0, theta4 = 0,
#>             RSV = 0, eps1 = 0, eta1 = 0, omega.2.1 = 0, eta2 = 0,
#>             omega.3.1 = 0, omega.3.2 = 0, eta3 = 0, omega.4.1 = 0,
#>             omega.4.2 = 0, omega.4.3 = 0)
#>         eta4 ~ c(theta1 = -9.49661e-06, theta2 = 0.000110108,
#>             theta3 = -0.000306537, theta4 = -9.12897e-05, RSV = 3.1877e-06,
#>             eps1 = 0, eta1 = 1.36628e-05, omega.2.1 = 0, eta2 = -1.95096e-05,
#>             omega.3.1 = 0, omega.3.2 = 0, eta3 = -0.00012977,
#>             omega.4.1 = 0, omega.4.2 = 0, omega.4.3 = 0, eta4 = 0.00051019)
#>     })
#>     validation <- c("IPRED relative difference compared to Nonmem IPRED: 0%; 95% percentile: (0%,0%); rtol=6.43e-06",
#>         "IPRED absolute difference compared to Nonmem IPRED: 95% percentile: (2.19e-05, 0.0418); atol=0.00167",
#>         "IWRES relative difference compared to Nonmem IWRES: 0%; 95% percentile: (0%,0.01%); rtol=8.99e-06",
#>         "IWRES absolute difference compared to Nonmem IWRES: 95% percentile: (1.82e-07, 4.63e-05); atol=3.65e-06",
#>         "PRED relative difference compared to Nonmem PRED: 0%; 95% percentile: (0%,0%); rtol=6.41e-06",
#>         "PRED absolute difference compared to Nonmem PRED: 95% percentile: (1.41e-07,0.00382) atol=6.41e-06")
#>     ini({
#>         theta1 <- 1.37034036528946
#>         label("log Cl")
#>         theta2 <- 4.19814911033061
#>         label("log Vc")
#>         theta3 <- 1.38003493562413
#>         label("log Q")
#>         theta4 <- 3.87657341967489
#>         label("log Vp")
#>         RSV <- c(0, 0.196446108190896, 1)
#>         label("RSV")
#>         eta1 ~ 0.101251418415006
#>         eta2 ~ 0.0993872449483344
#>         eta3 ~ 0.101302674763154
#>         eta4 ~ 0.0730497519364148
#>     })
#>     model({
#>         cmt(CENTRAL)
#>         cmt(PERI)
#>         cl <- exp(theta1 + eta1)
#>         v <- exp(theta2 + eta2)
#>         q <- exp(theta3 + eta3)
#>         v2 <- exp(theta4 + eta4)
#>         v1 <- v
#>         scale1 <- v
#>         k21 <- q/v2
#>         k12 <- q/v
#>         d/dt(CENTRAL) <- k21 * PERI - k12 * CENTRAL - cl * CENTRAL/v1
#>         d/dt(PERI) <- -k21 * PERI + k12 * CENTRAL
#>         f <- CENTRAL/scale1
#>         ipred <- f
#>         rescv <- RSV
#>         ipred ~ prop(RSV)
#>     })
#> }
#>  ── nonmem2rx translation notes ($notes): ──
#>    • there are duplicate eta names, not renaming duplicate parameters
#>    • there are duplicate theta names, not renaming duplicate parameters
#>  ── nonmem2rx extra properties: ──
#> other properties include: $nonmemData, $etaData
#> captured NONMEM table outputs: $predData, $ipredData
#> NONMEM/rxode2 comparison data: $iwresCompare, $predCompare, $ipredCompare
#> NONMEM/rxode2 composite comparison: $predAtol, $predRtol, $ipredAtol, $ipredRtol, $iwresAtol, $iwresRtol

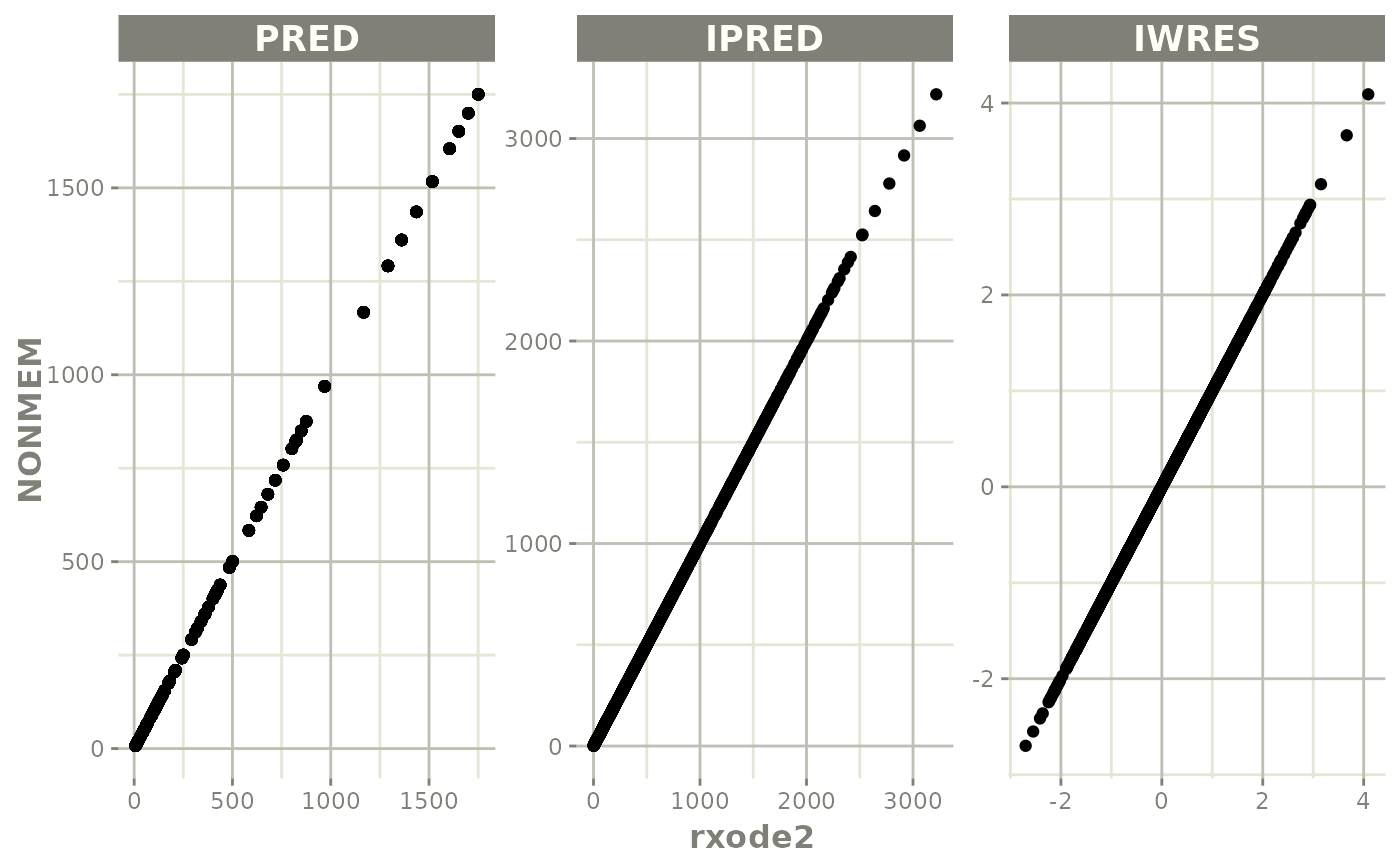

# you can plot to compare the pred/ipred differences

plot(mod)


# if you want to see the individual differences
# you can by plotting by page of plots

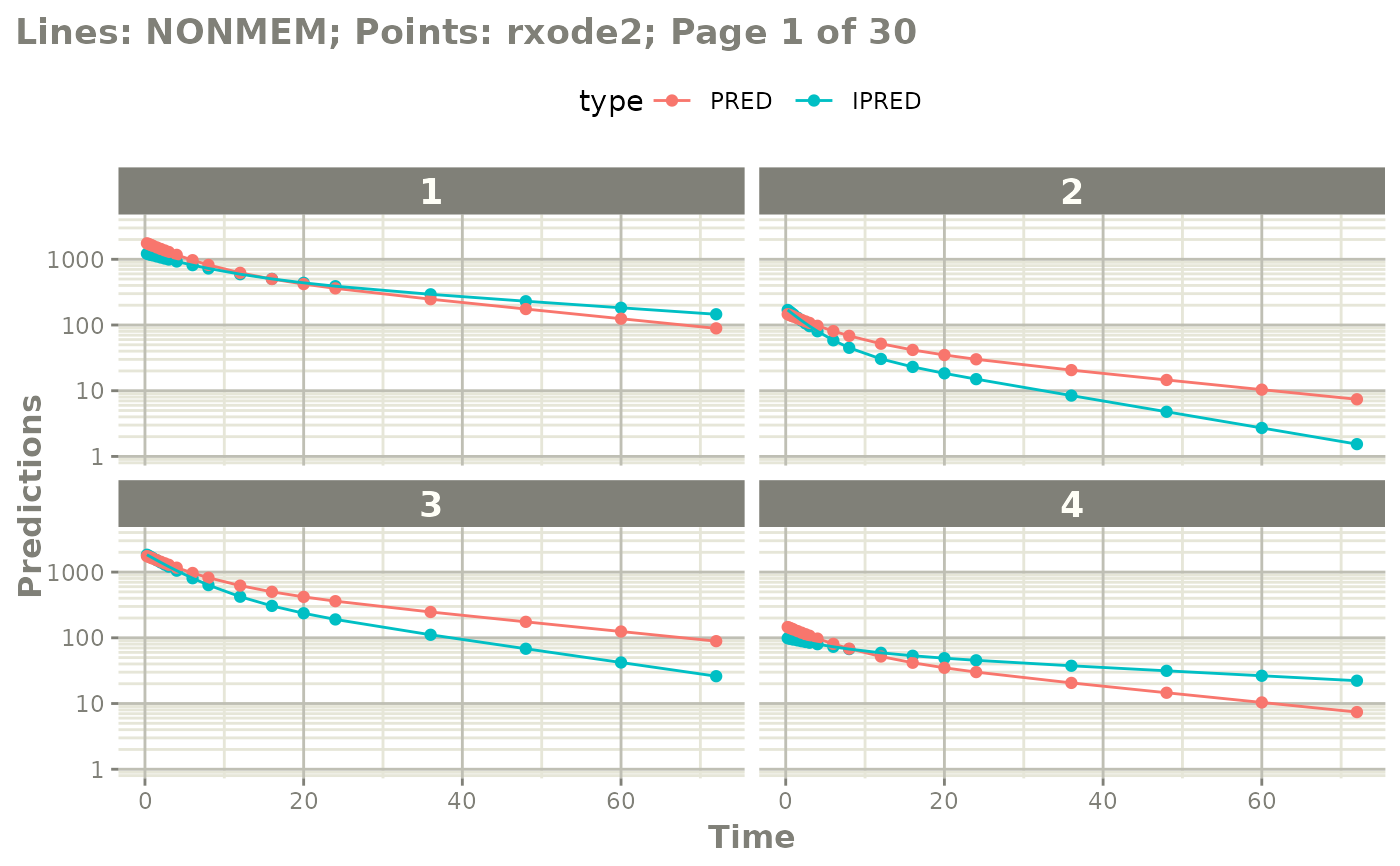

plot(mod, nrow=2, ncol=2, page=1, log="y")


# or select which pages you want to print

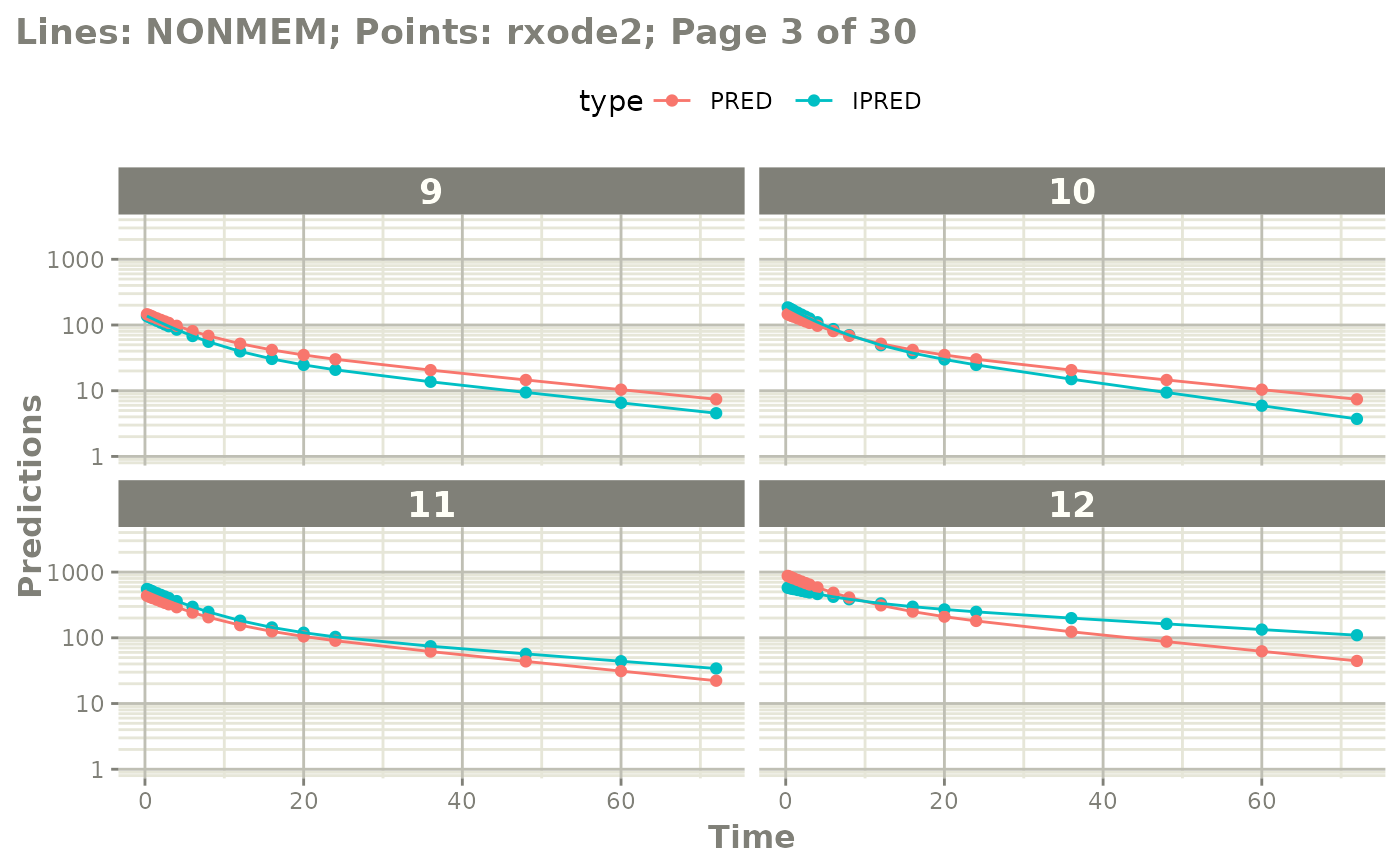

plot(mod, nrow=2, ncol=2, page=c(1,3), log="y")




#' or even  all the individuals with
# plot(page=TRUE)

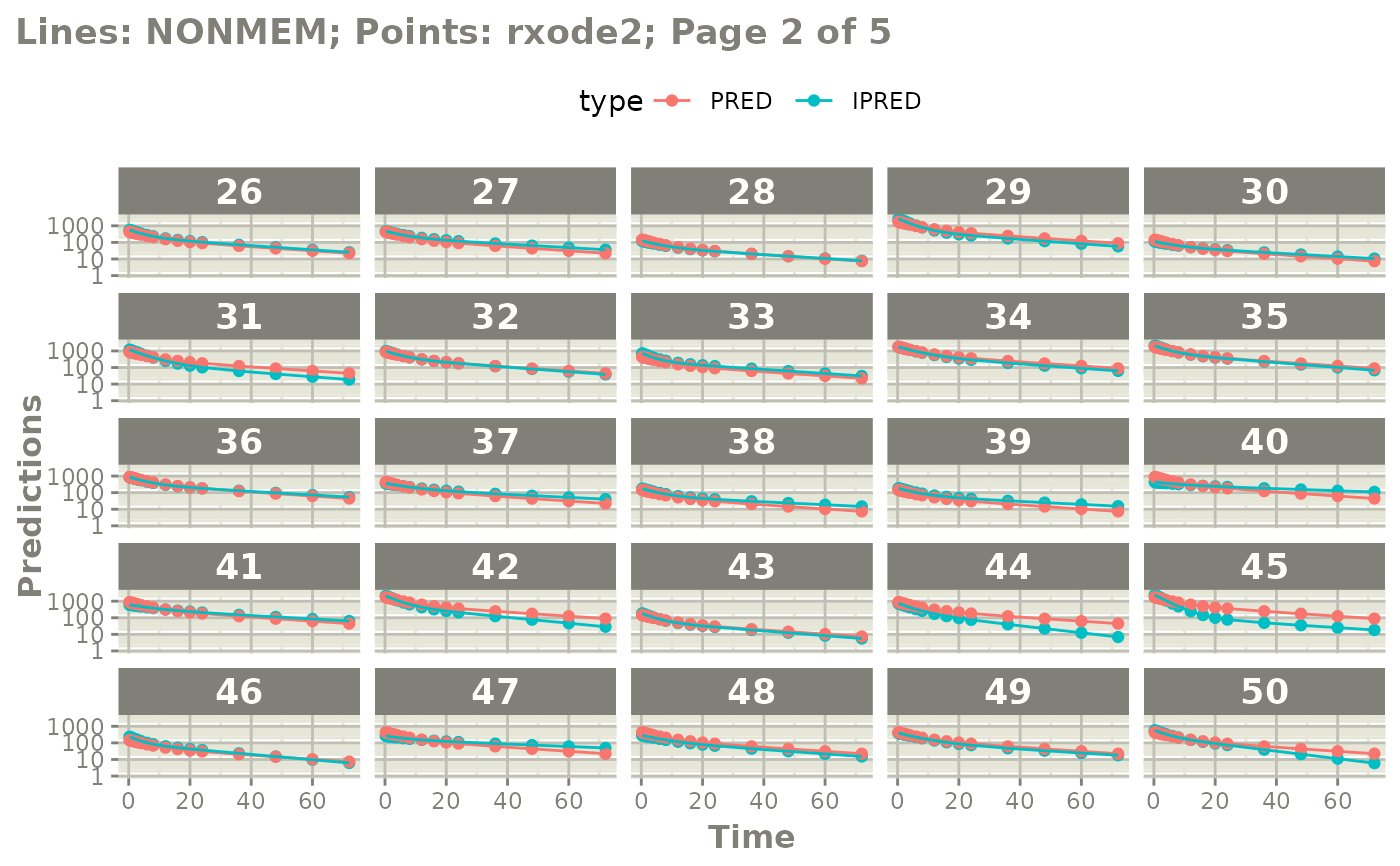

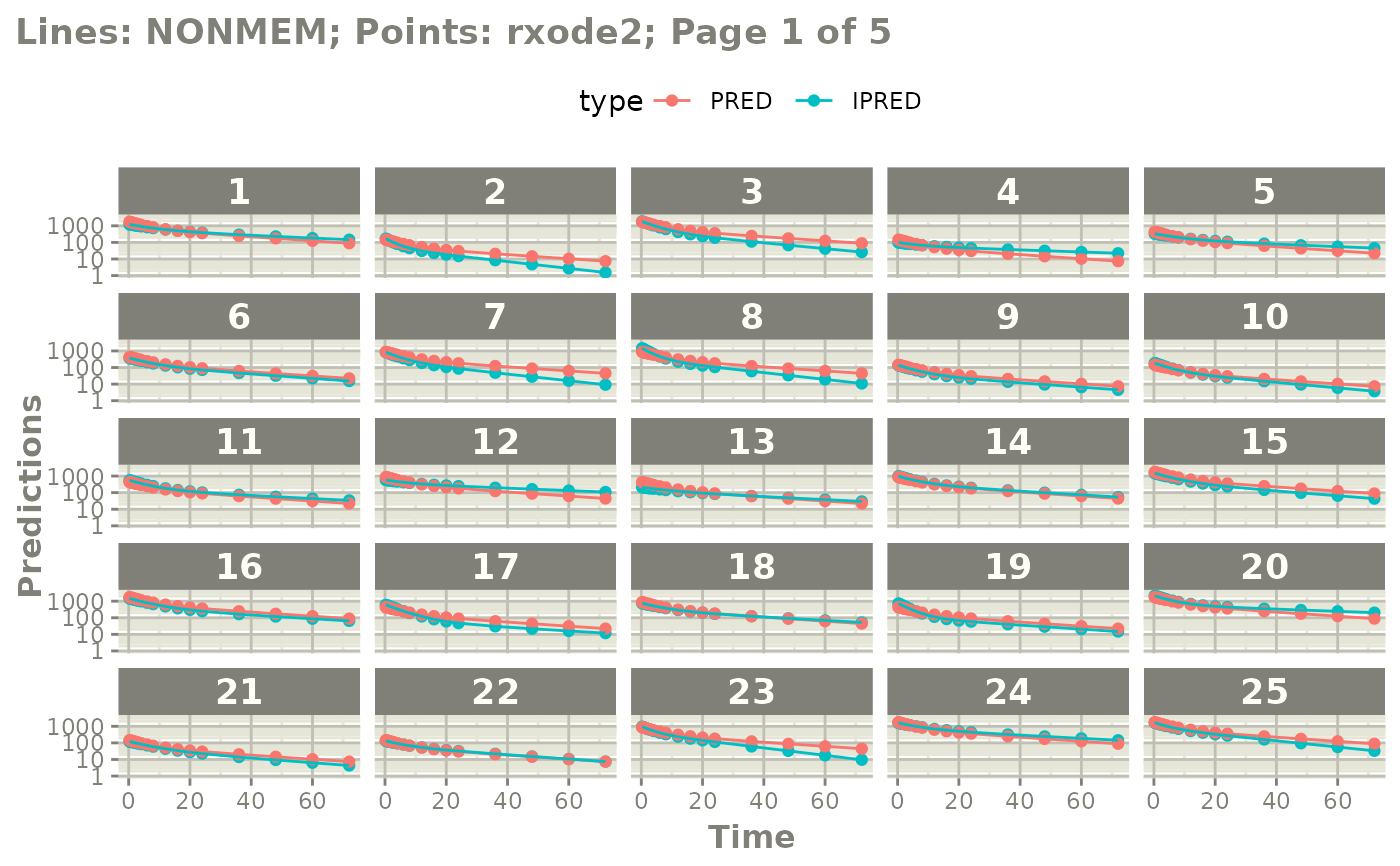

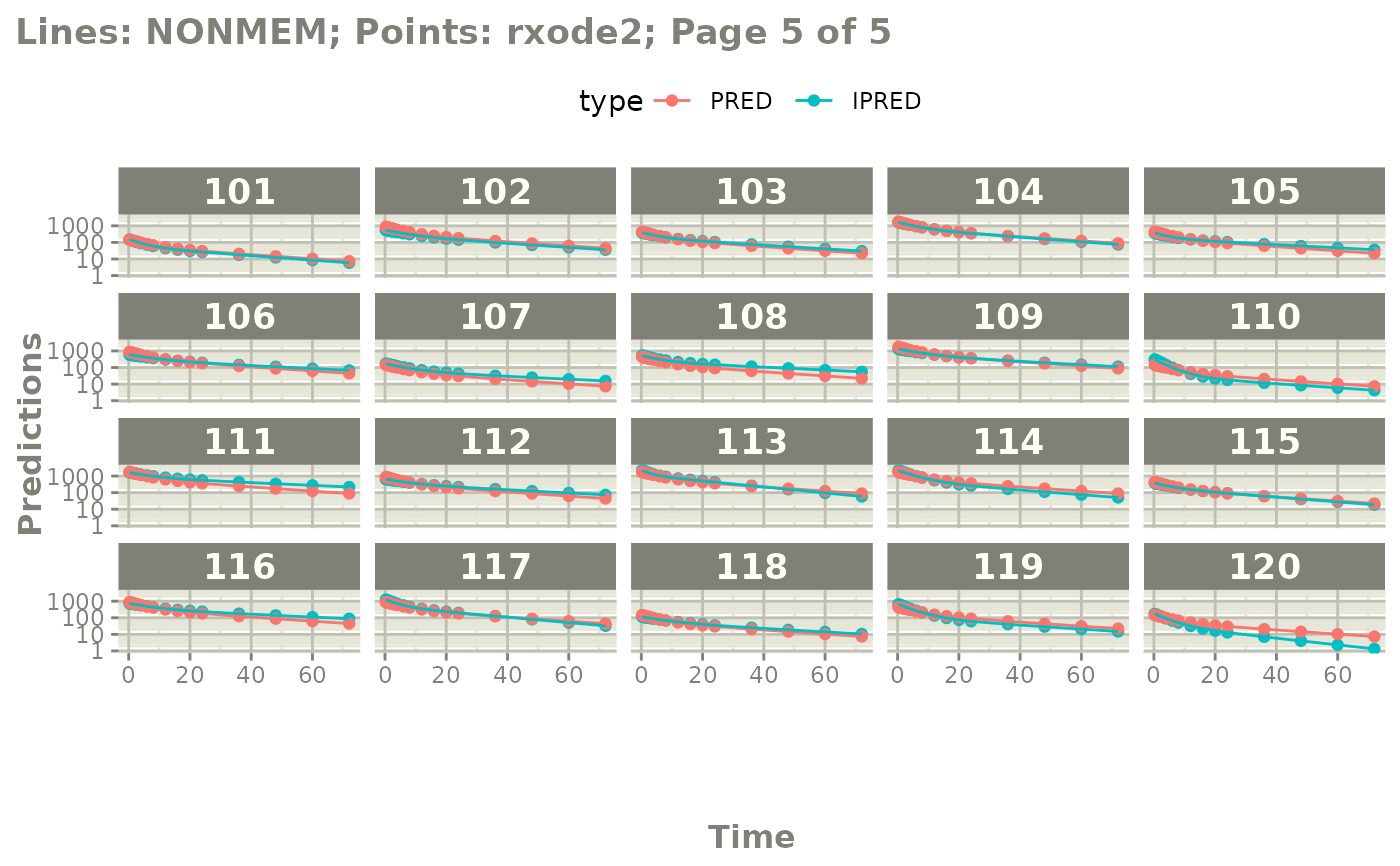

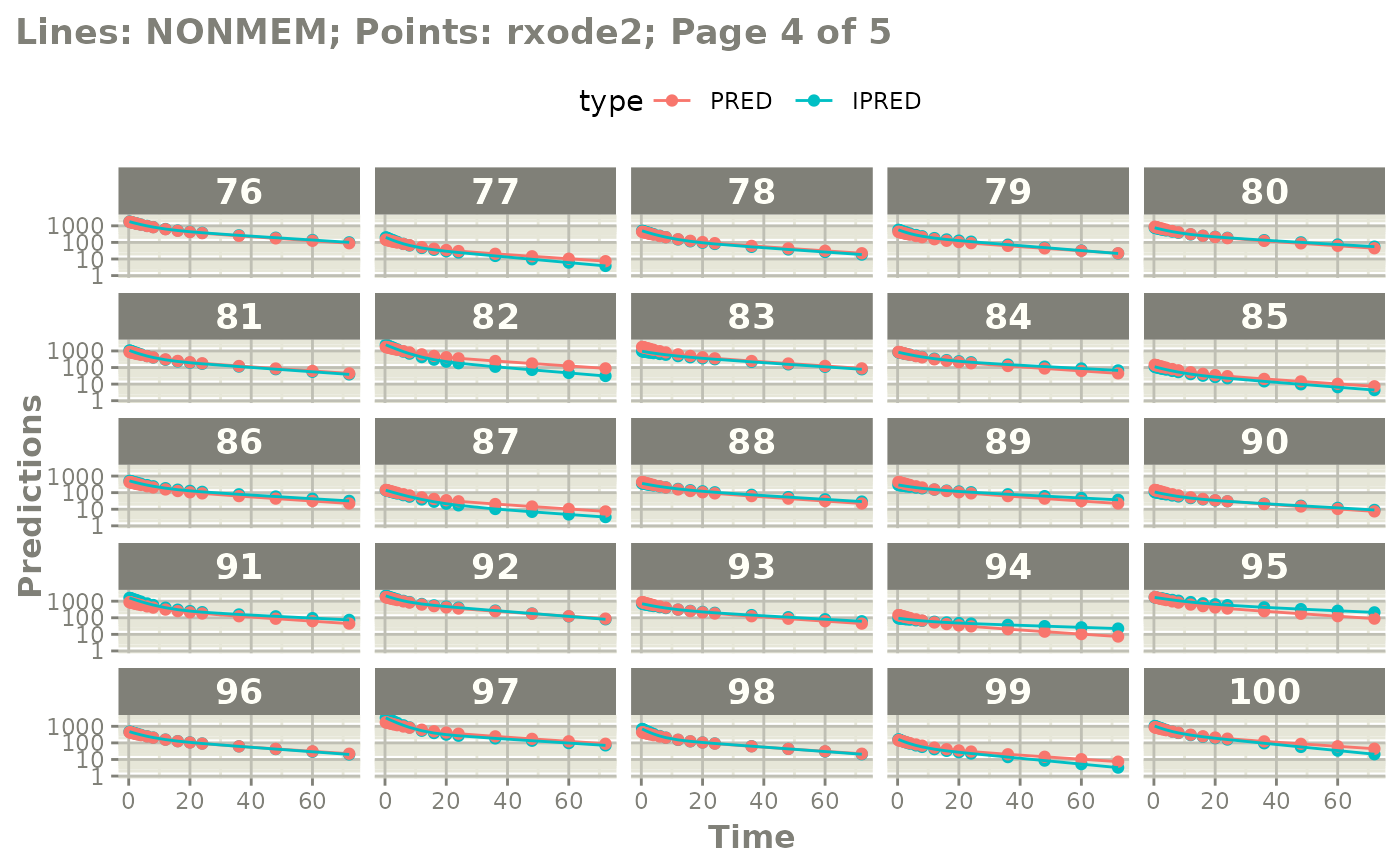

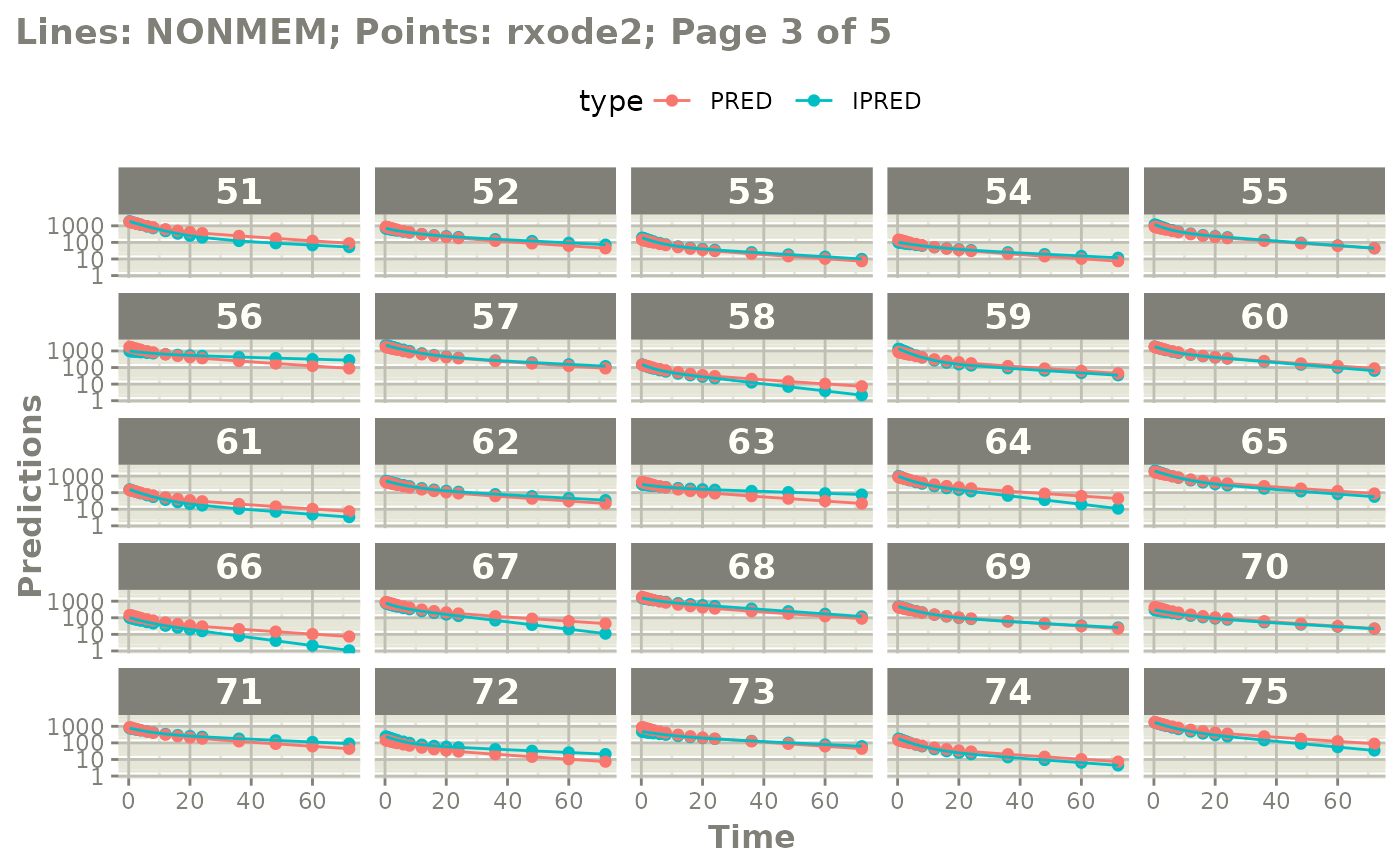

plot(mod, nrow=5, ncol=5, page=TRUE, log="y")






# you can also convert to a nlmixr2 object, but need babelmixr2 for
# that conversion

# }
