Add text box

Add text to plot, justified, in a box

textbox(x, y, textlist, justify=c('l','c','r'), cex=1, leading=0.5, box=TRUE,
 adj=c(0,0), font=NULL, vfont=NULL, col=NULL, border=NULL, fill=NA, density=NULL,
 angle=45, lty=par("lty"), lwd=par("lwd"), margin=0)

Arguments

x

x position: a vector with min. and max. x-position

y

y position: location of the top of the box

textlist

a vector of text strings

justify

x alignment: 'l'=left, 'c'=center, 'r'=right.

cex

character expansion

leading

inter-line spacing

box

whether to draw a box around the text

adj

adjustment for x and y position, default is no adjustment, see Details

font

text font, see Details

vfont

text font, see Details

col

text color

border

box border color

fill

box fill color

density

box shading line density, see Details

angle

box shading line angle, see Details

lty

box border and shading line types, see Details

lwd

box border and shading line width, see Details

margin

amount to adjust box border in or out. See Details

Details

Draws text in the box by pasting the textlist vector together, splitting it into words, and then adding words to the current line until the line is wide enough before moving on to the next line.

margin may be a vector of 1, 2, or 4 values, corresponding to adjustment of all borders (1 value), top/bottom and left/right borders (2 values), or bottom/left/top/right borders (4 values). A positive value moves text inwards from specified (x,y) position with border remaining at (x,y), and a negative value moves the border outwards from (x,y) with the text remaining at (x,y).

The density and angle arguments have the same behavior as in the rect function. The adj, font and vfont arguments have the same behavior as in the text function. The lty and lwd arguments have the same behavior as in the lines function.

Value

y-position of bottom line of box, or y-position of next line if there is no box.

Author

Ben Bolker. Improvements by Ted Toal.

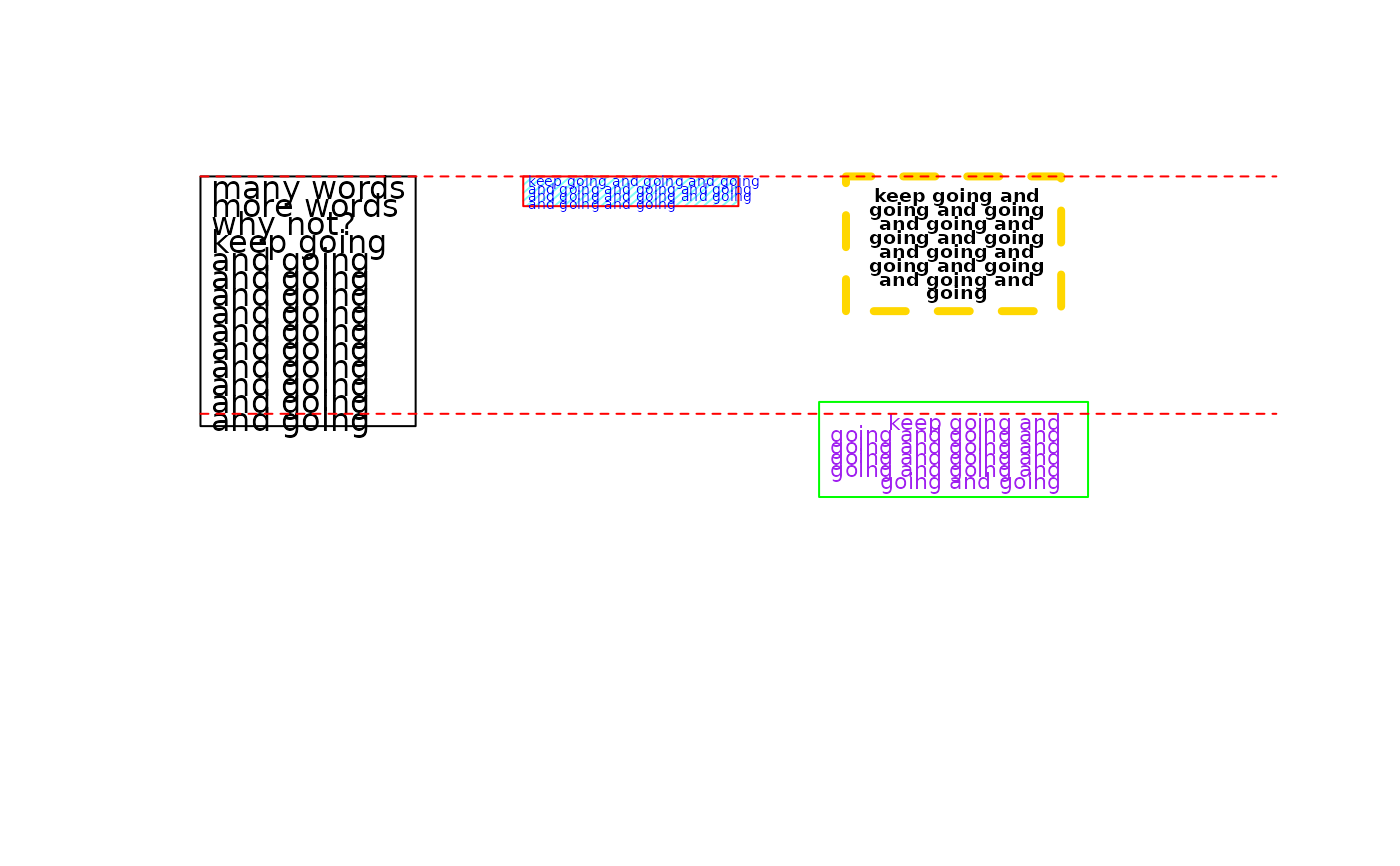

Examples

 plot.new()
 textbox(c(0,0.2), 1, c("many words","more words","why not?",
  "keep going",rep("and going",10)))
#>  [1] 1.0000000 0.9624302 0.9248605 0.8872907 0.8497209 0.8121512 0.7745814
#>  [8] 0.7370116 0.6994419 0.6618721 0.6243023 0.5867326 0.5491628 0.5115930
#> [15] 0.4740233
 textbox(c(0.3,0.5), 1, c("keep going",rep("and going",10)), cex=0.45,
  col="blue", border="red", fill="#00FFEE80", density=25, angle=60)
#> [1] 1.0000000 0.9843459 0.9686919 0.9530378 0.9373837
 textbox(c(0.6,0.8), 1, c("keep going",rep("and going",10)), justify='c', cex=0.6,
  leading=1, font=4, border="gold", lty=2, lwd=4, margin=0.025)
#> [1] 0.9750000 0.9457791 0.9165581 0.8873372 0.8581163 0.8288953 0.7996744
#> [8] 0.7704535 0.7412326
 textbox(c(0.6,0.8), 0.5, c("keep going",rep("and going",10)), justify='r', cex=0.7,
  col="purple", font=3, border="green", margin=-0.025)
#> [1] 0.5000000 0.4749535 0.4499070 0.4248605 0.3998140 0.3747674 0.3497209
 lines(c(0,1), c(1,1), col="red", lty=2)
 lines(c(0,1), c(0.5,0.5), col="red", lty=2)
