Distribution of Events' Times

ggsurvevents(
  surv = NULL,
  fit = NULL,
  data = NULL,
  type = "fraction",
  normalized = TRUE,
  censored.on.top = TRUE,
  ggtheme = theme_survminer(),
  palette = c("grey75", "grey25"),
  ...
)

Arguments

surv: an object of Surv. If not suplied, the censoring variable is extracted from the model.
fit: an object of class survfit.
data: a dataset for predictions. If not supplied then data will be extracted from `fit` object.
type: one of c("cumulative", "radius", "fraction"). "cumulative" stands for cumulative number of events, "radius" stands for number of events within a given radius,
normalized: if TRUE relative number of events is presented,
censored.on.top: is TRUE then censored events are on the top
ggtheme: function, ggplot2 theme name. Allowed values include ggplot2 official themes: see theme.
palette: the color palette to be used for coloring of significant variables.
...: other graphical parameters to be passed to the function ggpar.

Value

return an object of class ggplot

Author

Przemyslaw Biecek, przemyslaw.biecek@gmail.com

Examples

require("survival")
# from Surv
surv <- Surv(lung$time, lung$status)

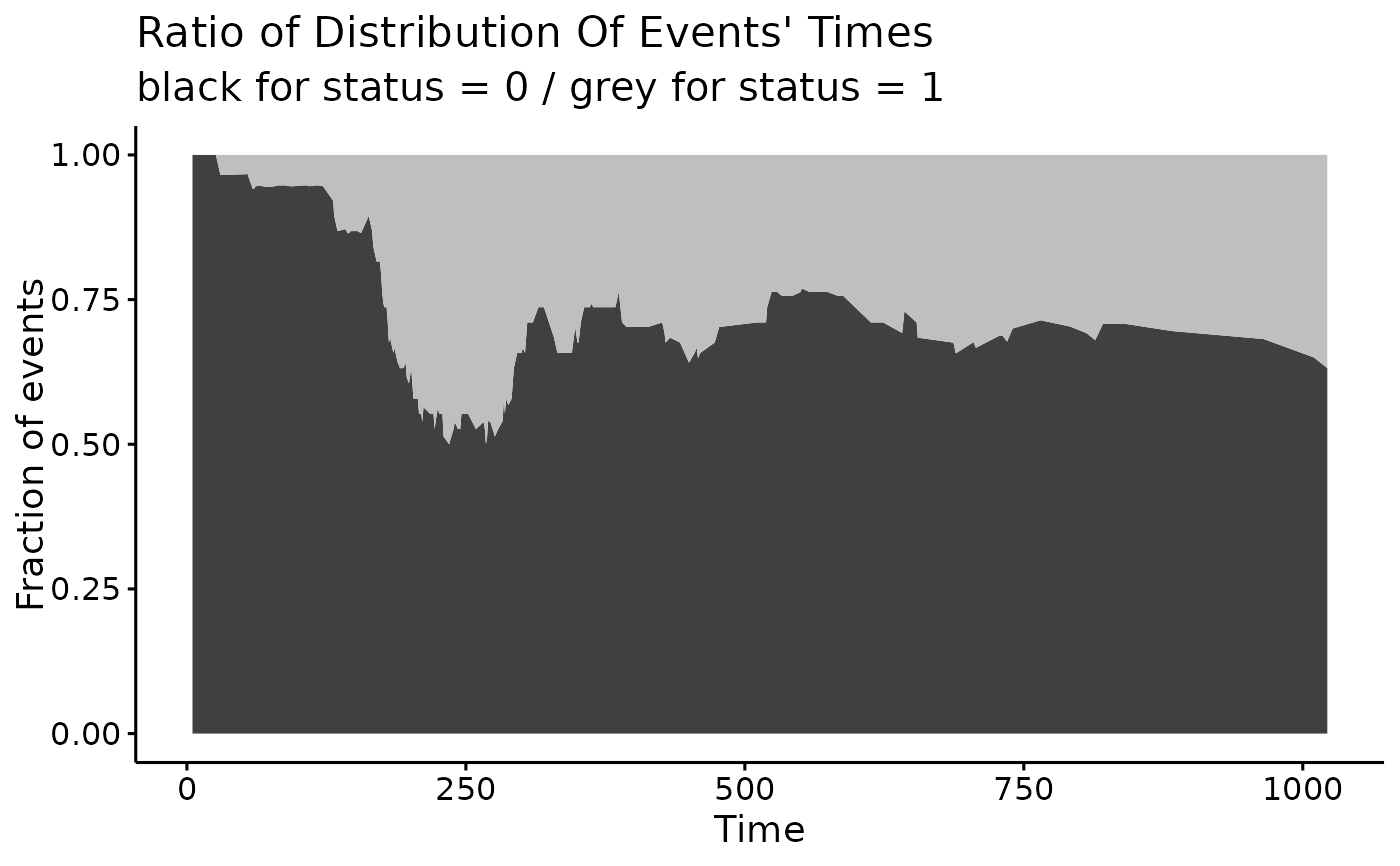

ggsurvevents(surv)


surv2 <- Surv(colon$time, colon$status)

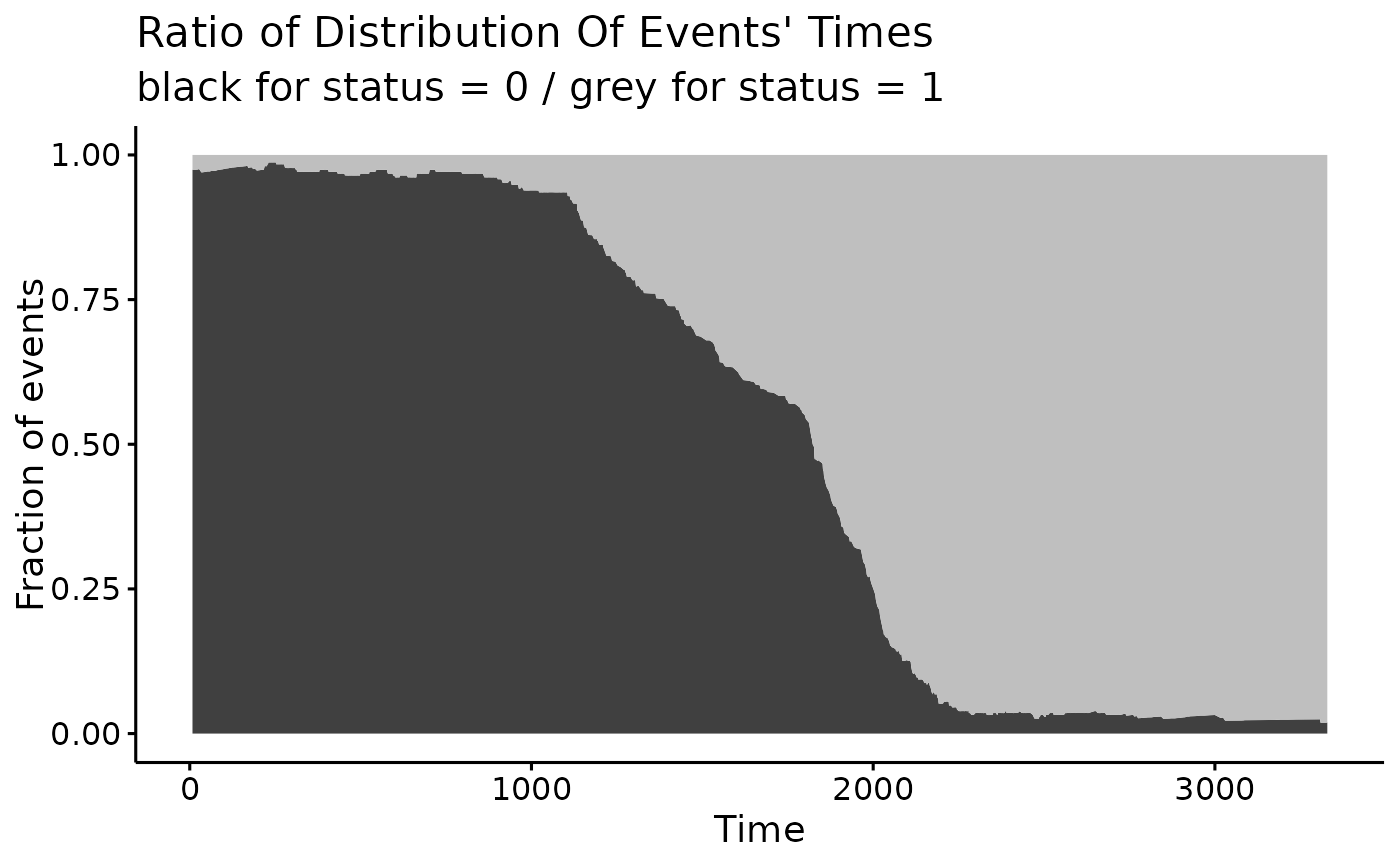

ggsurvevents(surv2)

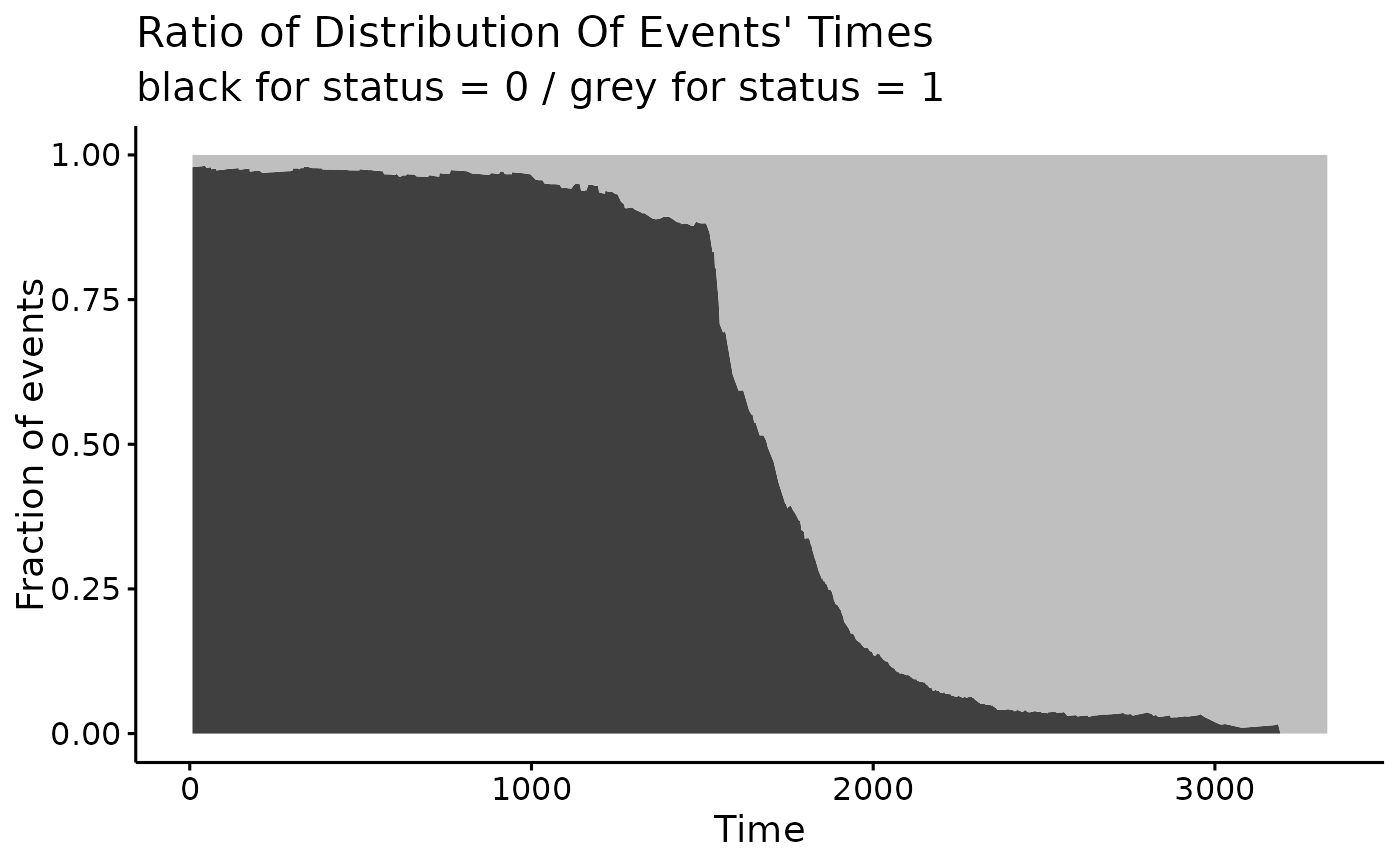

ggsurvevents(surv2, normalized = TRUE)


# from survfit
fit <- survfit(Surv(time, status) ~ sex, data = lung)
ggsurvevents(fit = fit, data = lung)
#> Warning: The `surv` argument is not provided. The censored variable will be extracted from model fit.


# from coxph
model <- coxph( Surv(time, status) ~ sex + rx + adhere, data = colon )
ggsurvevents(fit = model, data = colon)
#> Warning: The `surv` argument is not provided. The censored variable will be extracted from model fit.

ggsurvevents(surv2, normalized = TRUE, type = "radius")

ggsurvevents(surv2, normalized = TRUE, type = "fraction")
