Fixing a Quantile Regression having Crossing

Returns a similar object fitted with columns of the constraint matrices amalgamated so it is a partially parallel VGLM object. The columns combined correspond to certain crossing quantiles. This applies especially to an extlogF1() VGLM object.

fix.crossing.vglm(object, maxit = 100, trace = FALSE, ...)

Arguments

object

an object such as a vglm object with family function extlogF1.

maxit, trace

values for overwriting components in vglm.control. Setting these to NULL will mean the values in vglm.control on object will be retained.

...

additional optional arguments. Currently unused.

Details

The quantile crossing problem has been described as disturbing and embarrassing. This function was specifically written for a vglm with family function extlogF1. It examines the fitted quantiles of object to see if any cross. If so, then a pair of columns is combined to make those two quantiles parallel. After fitting the submodel it then repeats testing for crossing quantiles and repairing them, until there is no more quantile crossing detected. Note that it is possible that the quantiles cross in some subset of the covariate space not covered by the data—see is.crossing.

This function is fragile and likely to change in the future. For extlogF1 models, it is assumed that argument data has been assigned a data frame, and that the default values of the argument parallel has been used; this means that the second constraint matrix is diag(M). The constraint matrix of the intercept term remains unchanged as diag(M).

Value

An object very similar to the original object, but with possibly different constraint matrices (partially parallel) so as to remove any quantile crossing.

Examples

if (FALSE)  ooo <- with(bmi.nz, order(age))
bmi.nz <- bmi.nz[ooo, ]  # Sort by age
#> Error: object 'ooo' not found
with(bmi.nz, plot(age, BMI, col = "blue"))

mytau <- c(50, 93, 95, 97) / 100  # Some quantiles are quite close
fit1 <- vglm(BMI ~ ns(age, 7), extlogF1(mytau), bmi.nz, trace = TRUE)
#> Taking a modified step.
#> Iteration  2 :  loglikelihood = -9827.2672
#> Taking a modified step.
#> Iteration  3 :  loglikelihood = -9821.8497
#> Taking a modified step.
#> Iteration  4 :  loglikelihood = -9817.6926
#> Taking a modified step.
#> Iteration  5 :  loglikelihood = -9814.6062
#> Taking a modified step.
#> Iteration  6 :  loglikelihood = -9812.2572
#> Taking a modified step.
#> Iteration  7 :  loglikelihood = -9810.5167
#> Taking a modified step.
#> Iteration  8 :  loglikelihood = -9809.2165
#> Taking a modified step.
#> Iteration  9 :  loglikelihood = -9808.2009
#> Taking a modified step.
#> Iteration  10 :  loglikelihood = -9807.4706
#> Taking a modified step.
#> Iteration  11 :  loglikelihood = -9807.0344
#> Taking a modified step.
#> Iteration  12 :  loglikelihood = -9806.7858
#> Taking a modified step.
#> Iteration  13 :  loglikelihood = -9806.6309
#> Taking a modified step.
#> Iteration  14 :  loglikelihood = -9806.5045
#> Taking a modified step.
#> Iteration  15 :  loglikelihood = -9806.3928
#> Taking a modified step.
#> Iteration  16 :  loglikelihood = -9806.2922
#> Taking a modified step.
#> Iteration  17 :  loglikelihood = -9806.2011
#> Taking a modified step.
#> Iteration  18 :  loglikelihood = -9806.1193
#> Taking a modified step.
#> Iteration  19 :  loglikelihood = -9806.047
#> Taking a modified step.
#> Iteration  20 :  loglikelihood = -9805.9853
#> Taking a modified step.
#> Iteration  21 :  loglikelihood = -9805.935
#> Taking a modified step.
#> Iteration  22 :  loglikelihood = -9805.8964
#> Taking a modified step.
#> Iteration  23 :  loglikelihood = -9805.8694
#> Taking a modified step.
#> Iteration  24 :  loglikelihood = -9805.8525
#> Taking a modified step.
#> Iteration  25 :  loglikelihood = -9805.8431
#> Taking a modified step.
#> Iteration  26 :  loglikelihood = -9805.8382
#> Taking a modified step.
#> Iteration  27 :  loglikelihood = -9805.8355
#> Taking a modified step.
#> Iteration  28 :  loglikelihood = -9805.8338
#> Taking a modified step.
#> Iteration  29 :  loglikelihood = -9805.8326
#> Taking a modified step.
#> Iteration  30 :  loglikelihood = -9805.8316
#> Taking a modified step.
#> Iteration  31 :  loglikelihood = -9805.8309
#> Taking a modified step.
#> Iteration  32 :  loglikelihood = -9805.8304
#> Taking a modified step.
#> Iteration  33 :  loglikelihood = -9805.83
#> Taking a modified step.
#> Iteration  34 :  loglikelihood = -9805.8297
#> Taking a modified step.
#> Iteration  35 :  loglikelihood = -9805.8295
#> Taking a modified step.
#> Iteration  36 :  loglikelihood = -9805.8293
#> Taking a modified step.
#> Iteration  37 :  loglikelihood = -9805.8291
#> Taking a modified step.
#> Iteration  38 :  loglikelihood = -9805.829
#> Taking a modified step.
#> Iteration  39 :  loglikelihood = -9805.8289
#> Taking a modified step.
#> Iteration  40 :  loglikelihood = -9805.8289
#> Taking a modified step.
#> Iteration  41 :  loglikelihood = -9805.8288
#> Taking a modified step.
#> Iteration  42 :  loglikelihood = -9805.8288
#> Taking a modified step.
#> Iteration  43 :  loglikelihood = -9805.8288

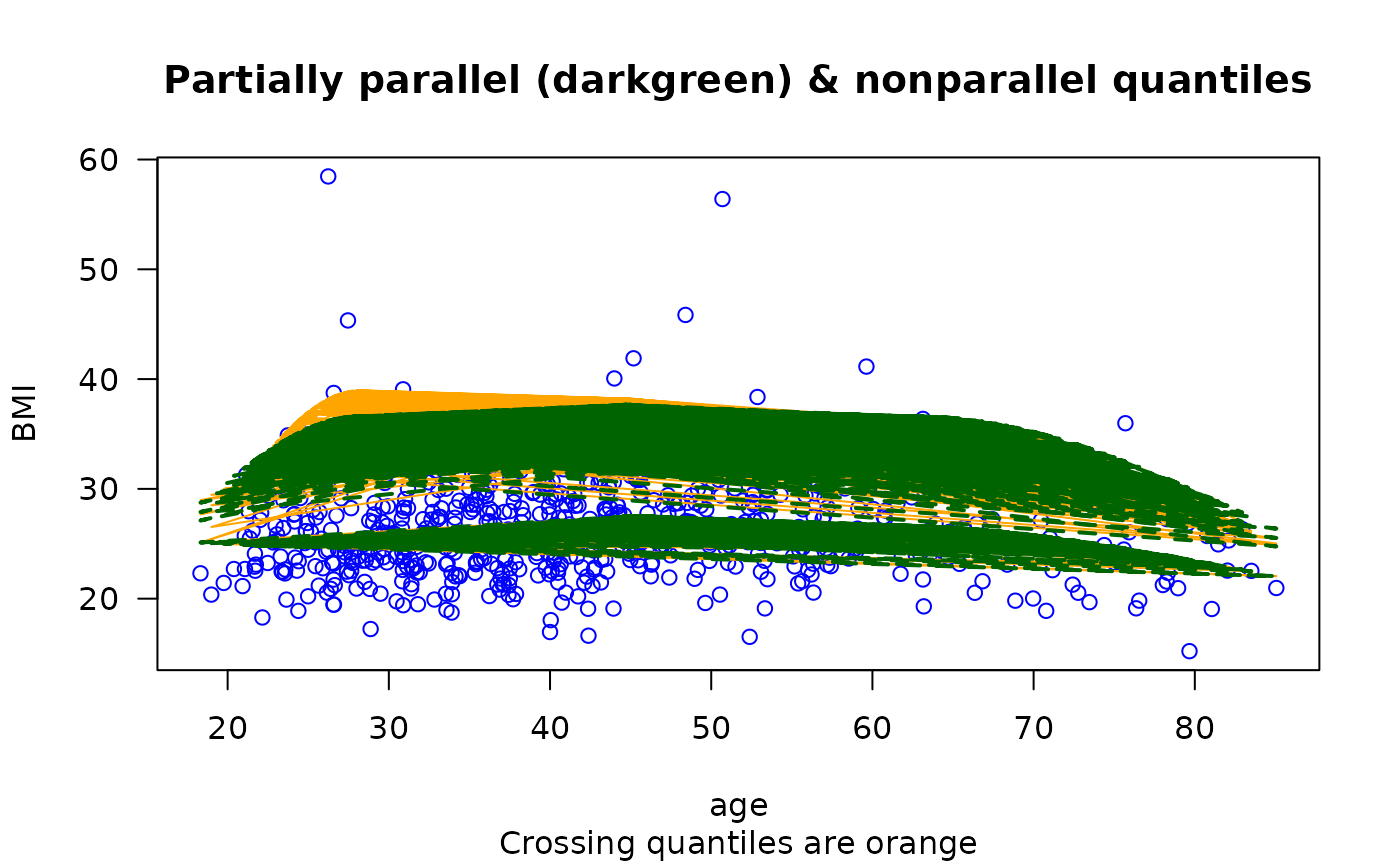

plot(BMI ~ age, bmi.nz, col = "blue", las = 1,
     main = "Partially parallel (darkgreen) & nonparallel quantiles",
     sub = "Crossing quantiles are orange")
fix.crossing(fit1)
#>
#> Call:
#> vglm(formula = as.formula(formula(object)), family = extlogF1(tau = object.save@extra$tau,
#>     lambda.arg = object.save@extra$lambda.arg, scale.arg = object.save@extra$scale.arg,
#>     llocation = linkfun(object.save)[1], parallel = FALSE), data = get(object.save@misc$dataname),
#>     control = object@control, constraints = Hlist)
#>
#>
#> Coefficients:
#> (Intercept):1 (Intercept):2 (Intercept):3 (Intercept):4 ns(age, 7)1:1
#>    25.1146001    27.1231849    27.8923265    28.7466503     1.0290005
#> ns(age, 7)1:2 ns(age, 7)2:1 ns(age, 7)2:2 ns(age, 7)3:1 ns(age, 7)3:2
#>     4.8016099     0.1720977     5.0590385     3.3312391    11.0238041
#> ns(age, 7)4:1 ns(age, 7)4:2 ns(age, 7)5:1 ns(age, 7)5:2 ns(age, 7)6:1
#>     0.7732957     3.9197381     2.8414896     7.4504449    -1.2498084
#> ns(age, 7)6:2 ns(age, 7)7:1 ns(age, 7)7:2
#>    12.6545997    -2.7057898    -7.5027877
#>
#> Degrees of Freedom: 2800 Total; 2782 Residual
#> Log-likelihood: -9808.988
#>
#> Quantiles:
#>  (tau = 0.5) (tau = 0.93) (tau = 0.95) (tau = 0.97)
#>    0.5028571    0.9257143    0.9485714    0.9742857
matlines(with(bmi.nz, age), fitted(fit1), lty = 1, col = "orange")
fit2 <- fix.crossing(fit1)  # Some quantiles have been fixed
constraints(fit2)
#> $`(Intercept)`
#>      [,1] [,2] [,3] [,4]
#> [1,]    1    0    0    0
#> [2,]    0    1    0    0
#> [3,]    0    0    1    0
#> [4,]    0    0    0    1
#>
#> $`ns(age, 7)1`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)2`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)3`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)4`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)5`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)6`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
#> $`ns(age, 7)7`
#>      [,1] [,2]
#> [1,]    1    0
#> [2,]    0    1
#> [3,]    0    1
#> [4,]    0    1
#>
matlines(with(bmi.nz, age), fitted(fit2), lty = "dashed",
         col = "darkgreen", lwd = 2)   # \dontrun{}
