Contours of a 2D density estimate

Perform a 2D kernel density estimation using MASS::kde2d() and display the results with contours. This can be useful for dealing with overplotting. This is a 2D version of geom_density(). geom_density_2d() draws contour lines, and geom_density_2d_filled() draws filled contour bands.

geom_density_2d(
  mapping = NULL,
  data = NULL,
  stat = "density_2d",
  position = "identity",
  ...,
  contour_var = "density",
  lineend = "butt",
  linejoin = "round",
  linemitre = 10,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

geom_density_2d_filled(
  mapping = NULL,
  data = NULL,
  stat = "density_2d_filled",
  position = "identity",
  ...,
  contour_var = "density",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_density_2d(
  mapping = NULL,
  data = NULL,
  geom = "density_2d",
  position = "identity",
  ...,
  contour = TRUE,
  contour_var = "density",
  h = NULL,
  adjust = c(1, 1),
  n = 100,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

stat_density_2d_filled(
  mapping = NULL,
  data = NULL,
  geom = "density_2d_filled",
  position = "identity",
  ...,
  contour = TRUE,
  contour_var = "density",
  h = NULL,
  adjust = c(1, 1),
  n = 100,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.
A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".
For more information and other ways to specify the position, see the layer position documentation.

...

Arguments passed on to geom_contour

binwidth

The width of the contour bins. Overridden by bins.

bins

Number of contour bins. Overridden by breaks.

breaks

One of:

Numeric vector to set the contour breaks
A function that takes the range of the data and binwidth as input and returns breaks as output. A function can be created from a formula (e.g. ~ fullseq(.x, .y)).

Overrides binwidth and bins. By default, this is a vector of length ten with pretty() breaks.

contour_var

Character string identifying the variable to contour by. Can be one of "density", "ndensity", or "count". See the section on computed variables for details.

lineend

Line end style (round, butt, square).

linejoin

Line join style (round, mitre, bevel).

linemitre

Line mitre limit (number greater than 1).

na.rm

If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

geom, stat

Use to override the default connection between geom_density_2d() and stat_density_2d(). For more information at overriding these connections, see how the stat and geom arguments work.

contour

If TRUE, contour the results of the 2d density estimation.

h

Bandwidth (vector of length two). If NULL, estimated using MASS::bandwidth.nrd().

adjust

A multiplicative bandwidth adjustment to be used if 'h' is 'NULL'. This makes it possible to adjust the bandwidth while still using the a bandwidth estimator. For example, adjust = 1/2 means use half of the default bandwidth.

n

Number of grid points in each direction.

Computed variables

These are calculated by the 'stat' part of layers and can be accessed with delayed evaluation. stat_density_2d() and stat_density_2d_filled() compute different variables depending on whether contouring is turned on or off. With contouring off (contour = FALSE), both stats behave the same, and the following variables are provided:

after_stat(density)
The density estimate.
after_stat(ndensity)
Density estimate, scaled to a maximum of 1.
after_stat(count)
Density estimate * number of observations in group.
after_stat(n)
Number of observations in each group.

With contouring on (contour = TRUE), either stat_contour() or stat_contour_filled() (for contour lines or contour bands, respectively) is run after the density estimate has been obtained, and the computed variables are determined by these stats. Contours are calculated for one of the three types of density estimates obtained before contouring, density, ndensity, and count. Which of those should be used is determined by the contour_var parameter.

Dropped variables

z: After density estimation, the z values of individual data points are no longer available.

If contouring is enabled, then similarly density, ndensity, and count are no longer available after the contouring pass.

Aesthetics

geom_density2d() understands the following aesthetics. Required aesthetics are displayed in bold and defaults are displayed for optional aesthetics:

•	`x`
•	`y`
•	`alpha`	→ `NA`
•	`colour`	→ via `theme()`
•	`group`	→ inferred
•	`linetype`	→ via `theme()`
•	`linewidth`	→ via `theme()`

geom_density2d_filled() understands the following aesthetics. Required aesthetics are displayed in bold and defaults are displayed for optional aesthetics:

•	`x`
•	`y`
•	`alpha`	→ `NA`
•	`colour`	→ via `theme()`
•	`fill`	→ via `theme()`
•	`group`	→ inferred
•	`linetype`	→ via `theme()`
•	`linewidth`	→ via `theme()`
•	`subgroup`	→ `NULL`

Learn more about setting these aesthetics in vignette("ggplot2-specs").

Examples

m <- ggplot(faithful, aes(x = eruptions, y = waiting)) +
 geom_point() +
 xlim(0.5, 6) +
 ylim(40, 110)

# contour lines

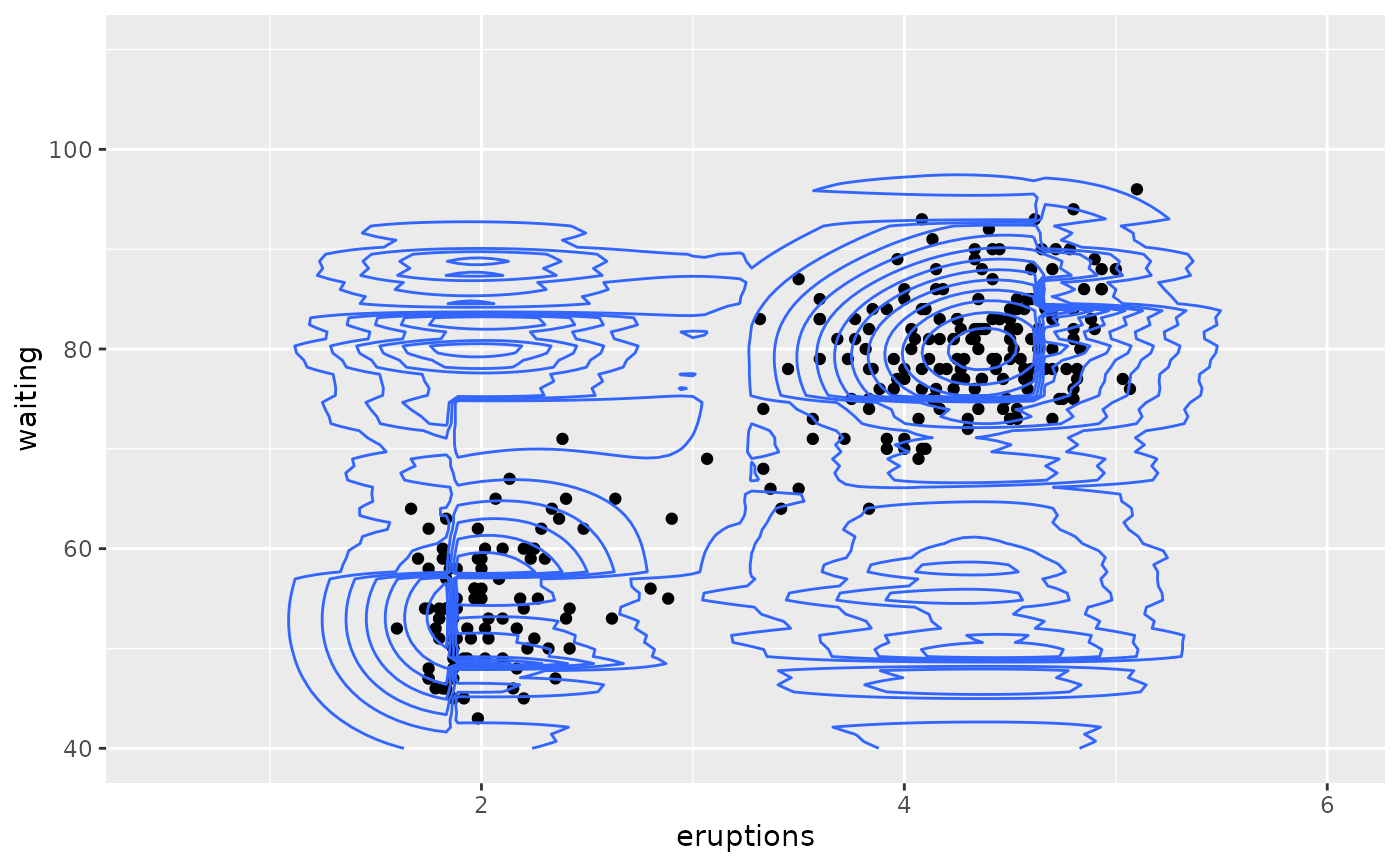

m + geom_density_2d()


# \donttest{
# contour bands

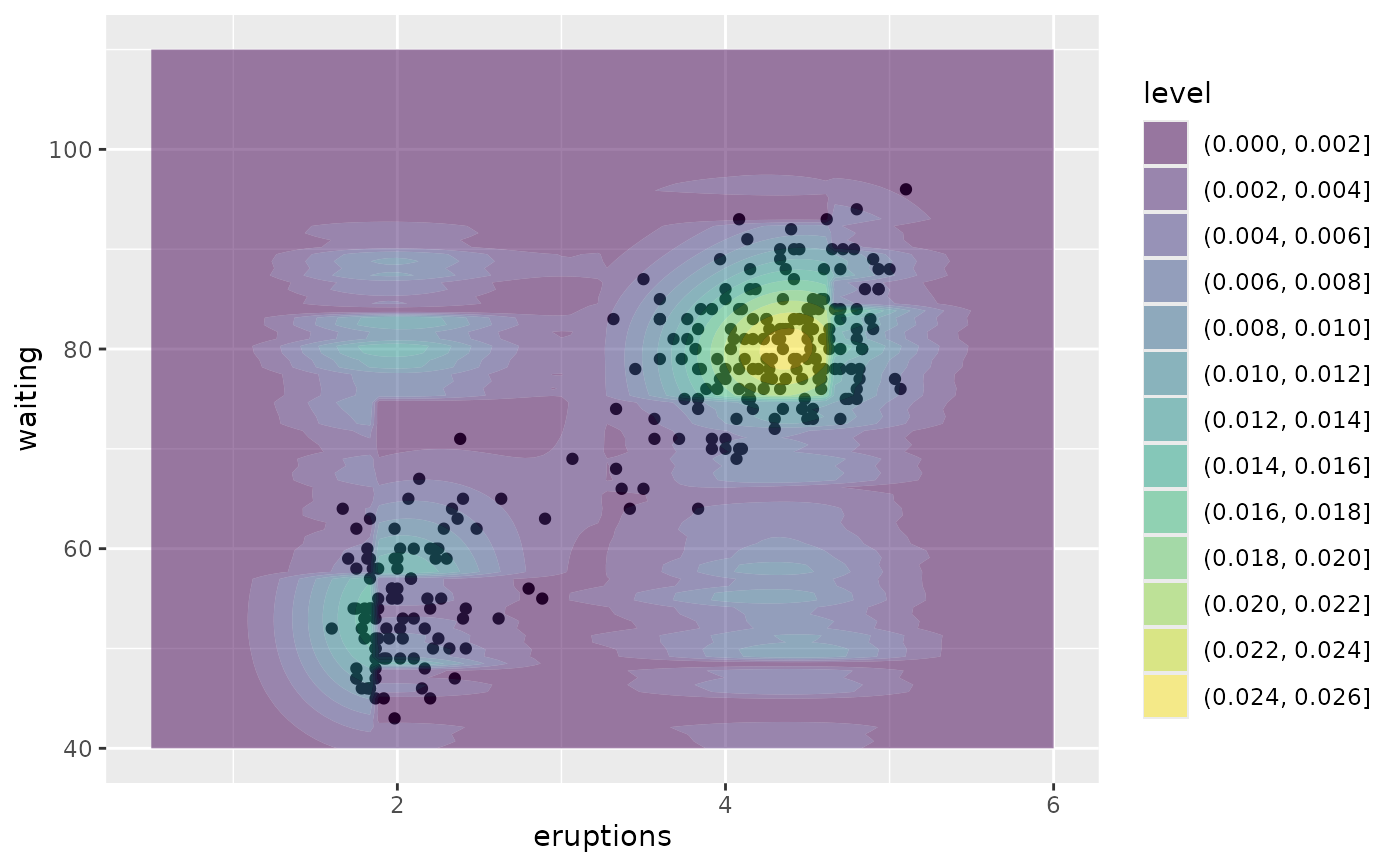

m + geom_density_2d_filled(alpha = 0.5)


# contour bands and contour lines

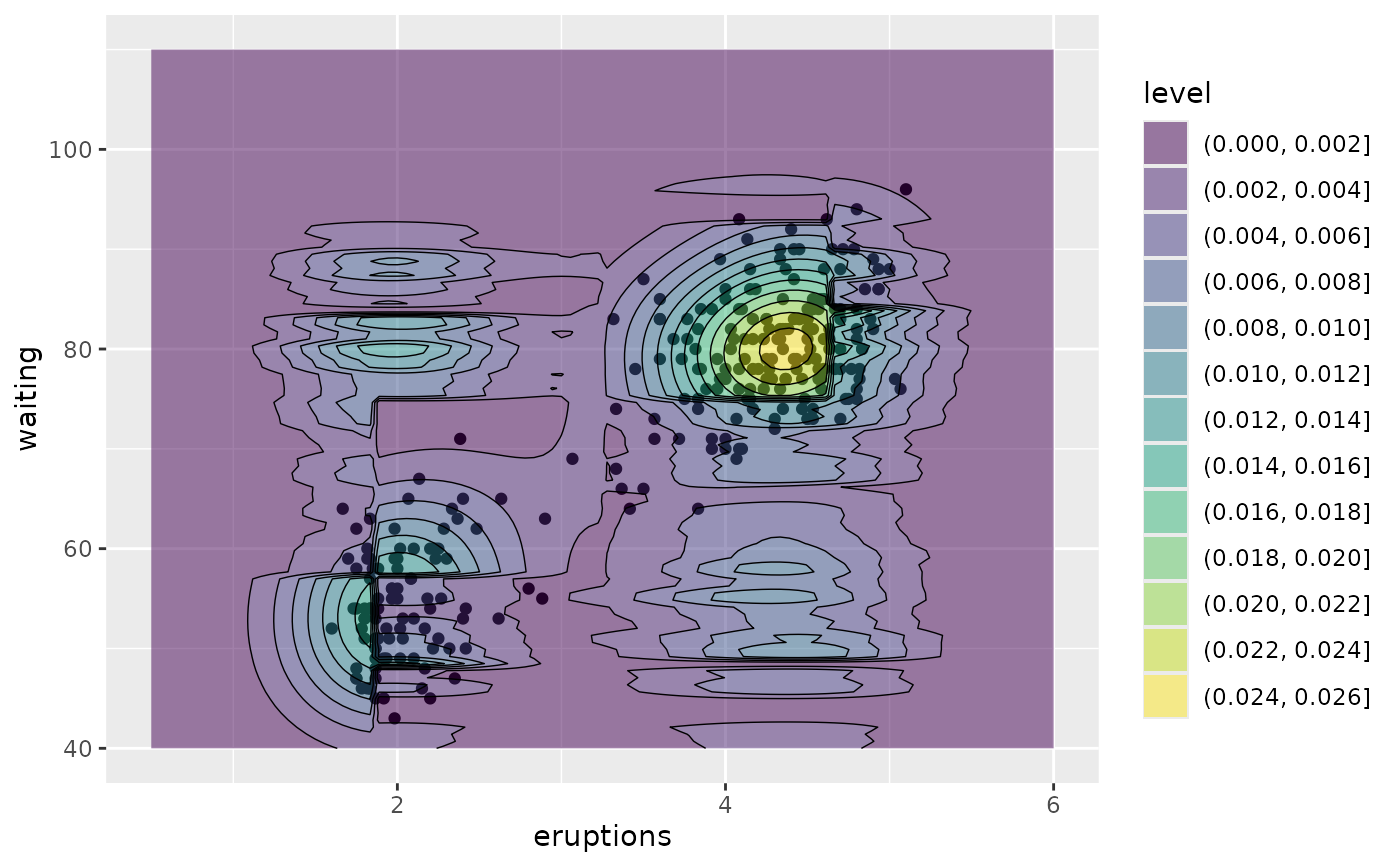

m + geom_density_2d_filled(alpha = 0.5) +
  geom_density_2d(linewidth = 0.25, colour = "black")


set.seed(4393)
dsmall <- diamonds[sample(nrow(diamonds), 1000), ]
d <- ggplot(dsmall, aes(x, y))
# If you map an aesthetic to a categorical variable, you will get a
# set of contours for each value of that variable
d + geom_density_2d(aes(colour = cut))


# If you draw filled contours across multiple facets, the same bins are
# used across all facets

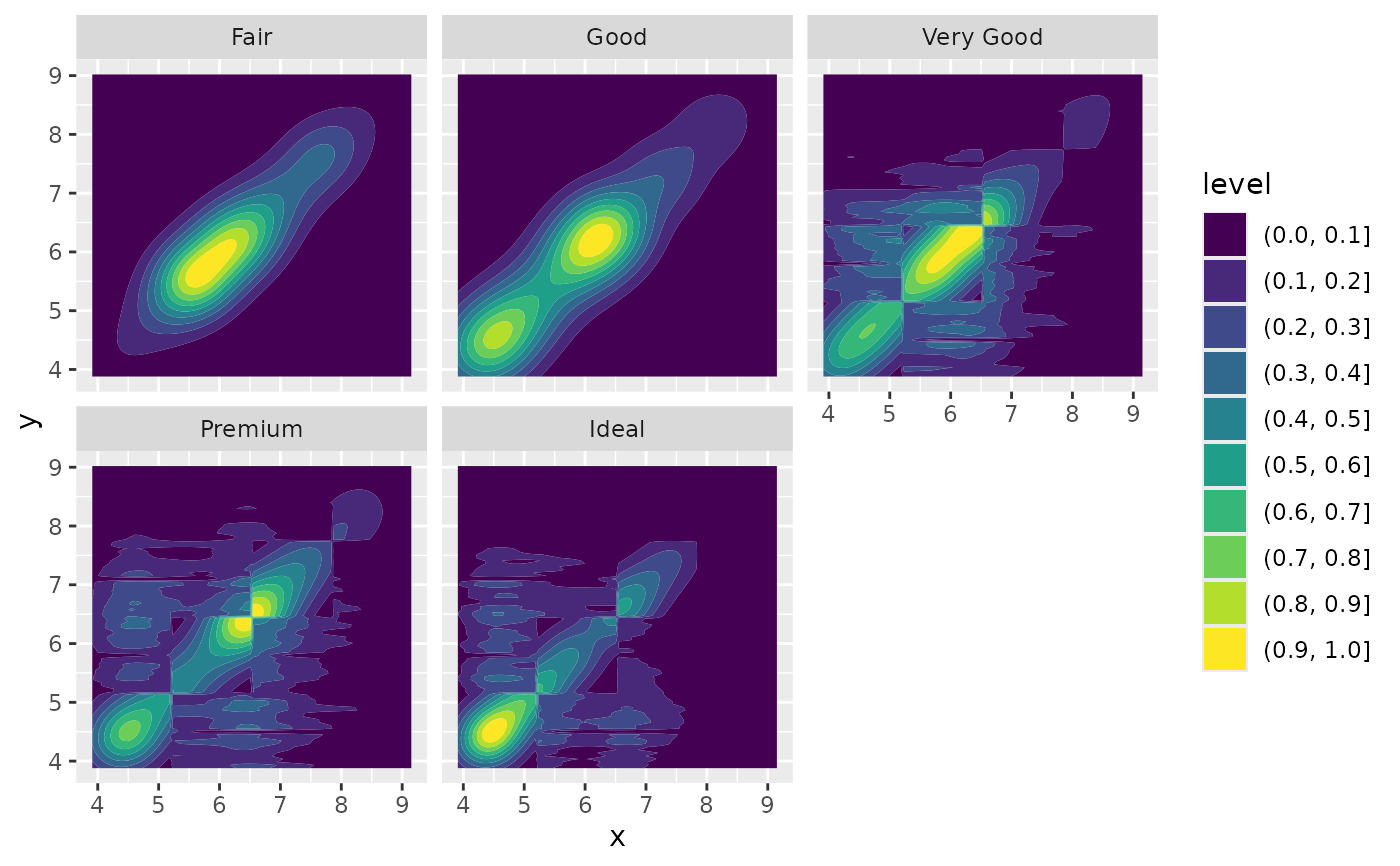

d + geom_density_2d_filled() + facet_wrap(vars(cut))

# If you want to make sure the peak intensity is the same in each facet,
# use `contour_var = "ndensity"`.
d + geom_density_2d_filled(contour_var = "ndensity") + facet_wrap(vars(cut))

# If you want to scale intensity by the number of observations in each group,
# use `contour_var = "count"`.

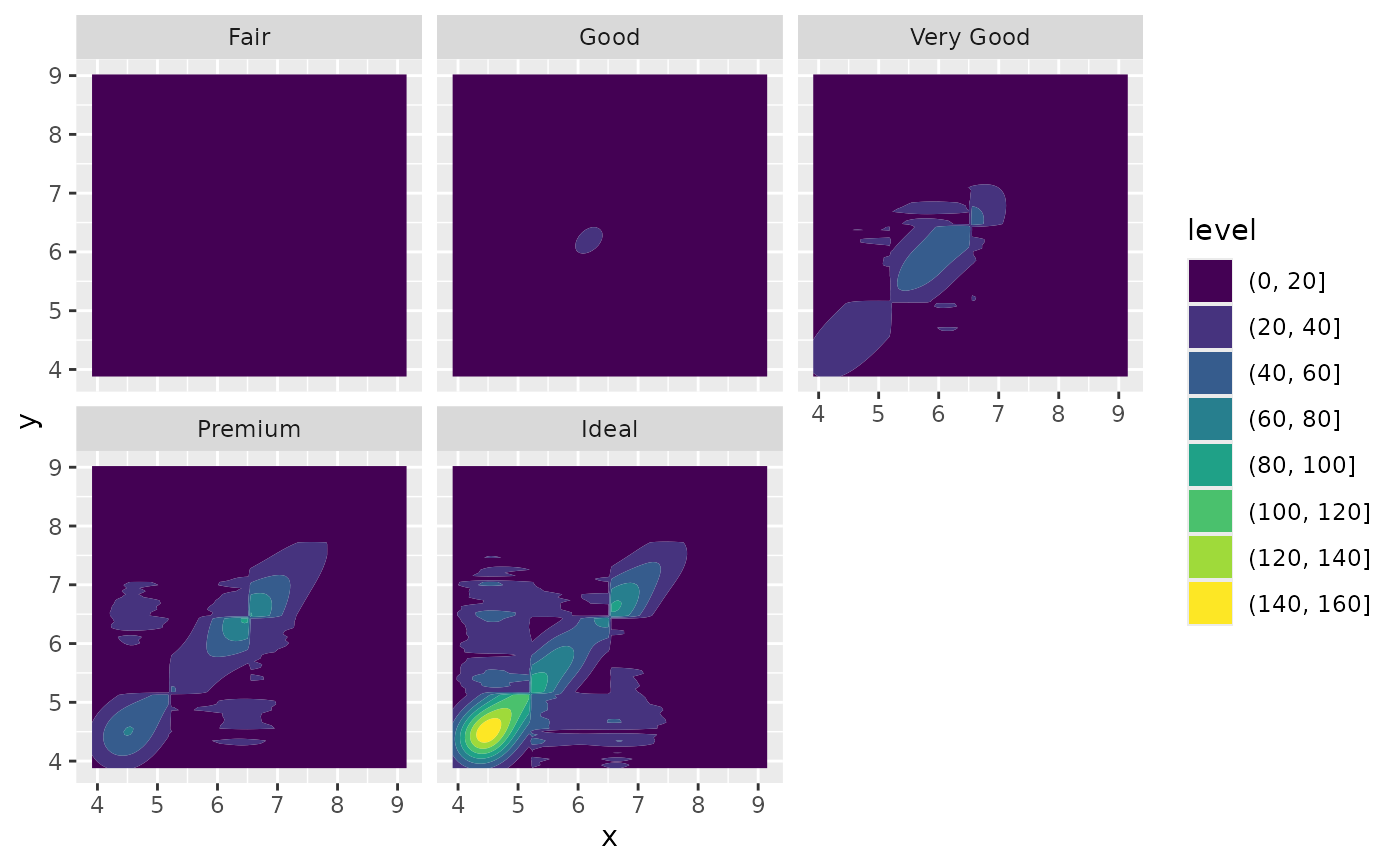

d + geom_density_2d_filled(contour_var = "count") + facet_wrap(vars(cut))


# If we turn contouring off, we can use other geoms, such as tiles:

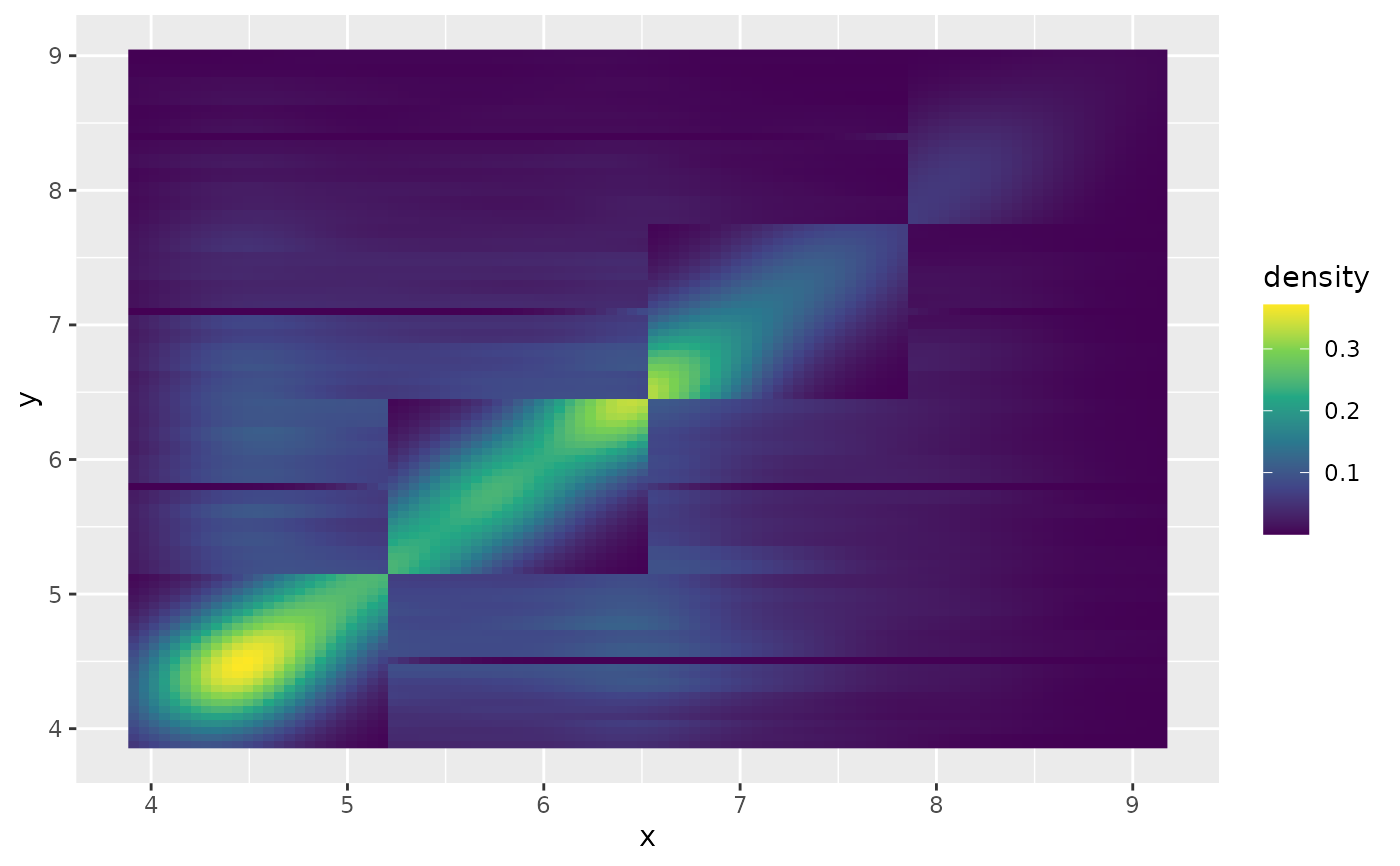

d + stat_density_2d(
  geom = "raster",
  aes(fill = after_stat(density)),
  contour = FALSE
) + scale_fill_viridis_c()

# Or points:

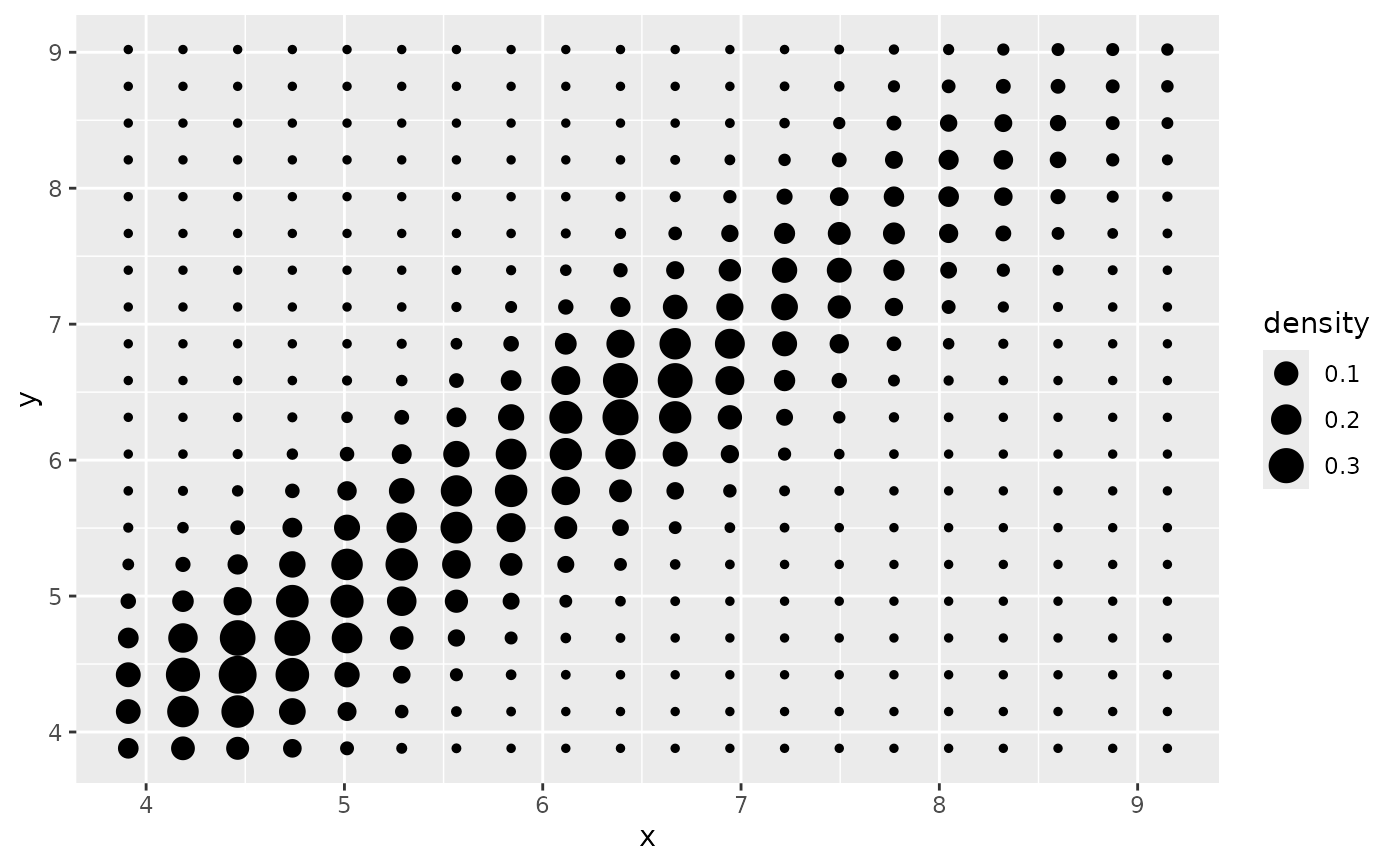

d + stat_density_2d(geom = "point", aes(size = after_stat(density)), n = 20, contour = FALSE)

# }
