Plot model coefficients

ggcoef_model(), ggcoef_table(), ggcoef_dodged(), ggcoef_faceted() and ggcoef_compare() use broom.helpers::tidy_plus_plus() to obtain a tibble of the model coefficients, apply additional data transformation and then pass the produced tibble to ggcoef_plot() to generate the plot.

ggcoef_model(
  model,
  tidy_fun = broom.helpers::tidy_with_broom_or_parameters,
  tidy_args = NULL,
  conf.int = TRUE,
  conf.level = 0.95,
  exponentiate = FALSE,
  variable_labels = NULL,
  term_labels = NULL,
  interaction_sep = " * ",
  categorical_terms_pattern = "{level}",
  add_reference_rows = TRUE,
  no_reference_row = NULL,
  intercept = FALSE,
  include = dplyr::everything(),
  group_by = broom.helpers::auto_group_by(),
  group_labels = NULL,
  add_pairwise_contrasts = FALSE,
  pairwise_variables = broom.helpers::all_categorical(),
  keep_model_terms = FALSE,
  pairwise_reverse = TRUE,
  emmeans_args = list(),
  significance = 1 - conf.level,
  significance_labels = NULL,
  show_p_values = TRUE,
  signif_stars = TRUE,
  return_data = FALSE,
  ...
)

ggcoef_table(
  model,
  tidy_fun = broom.helpers::tidy_with_broom_or_parameters,
  tidy_args = NULL,
  conf.int = TRUE,
  conf.level = 0.95,
  exponentiate = FALSE,
  variable_labels = NULL,
  term_labels = NULL,
  interaction_sep = " * ",
  categorical_terms_pattern = "{level}",
  add_reference_rows = TRUE,
  no_reference_row = NULL,
  intercept = FALSE,
  include = dplyr::everything(),
  group_by = broom.helpers::auto_group_by(),
  group_labels = NULL,
  add_pairwise_contrasts = FALSE,
  pairwise_variables = broom.helpers::all_categorical(),
  keep_model_terms = FALSE,
  pairwise_reverse = TRUE,
  emmeans_args = list(),
  significance = 1 - conf.level,
  significance_labels = NULL,
  show_p_values = FALSE,
  signif_stars = FALSE,
  table_stat = c("estimate", "ci", "p.value"),
  table_header = NULL,
  table_text_size = 3,
  table_stat_label = NULL,
  ci_pattern = "{conf.low}, {conf.high}",
  table_widths = c(3, 2),
  table_witdhs = deprecated(),
  ...
)

ggcoef_dodged(
  model,
  tidy_fun = broom.helpers::tidy_with_broom_or_parameters,
  tidy_args = NULL,
  conf.int = TRUE,
  conf.level = 0.95,
  exponentiate = FALSE,
  variable_labels = NULL,
  term_labels = NULL,
  interaction_sep = " * ",
  categorical_terms_pattern = "{level}",
  add_reference_rows = TRUE,
  no_reference_row = NULL,
  intercept = FALSE,
  include = dplyr::everything(),
  group_by = broom.helpers::auto_group_by(),
  group_labels = NULL,
  significance = 1 - conf.level,
  significance_labels = NULL,
  return_data = FALSE,
  ...
)

ggcoef_faceted(
  model,
  tidy_fun = broom.helpers::tidy_with_broom_or_parameters,
  tidy_args = NULL,
  conf.int = TRUE,
  conf.level = 0.95,
  exponentiate = FALSE,
  variable_labels = NULL,
  term_labels = NULL,
  interaction_sep = " * ",
  categorical_terms_pattern = "{level}",
  add_reference_rows = TRUE,
  no_reference_row = NULL,
  intercept = FALSE,
  include = dplyr::everything(),
  group_by = broom.helpers::auto_group_by(),
  group_labels = NULL,
  significance = 1 - conf.level,
  significance_labels = NULL,
  return_data = FALSE,
  ...
)

ggcoef_compare(
  models,
  type = c("dodged", "faceted"),
  tidy_fun = broom.helpers::tidy_with_broom_or_parameters,
  tidy_args = NULL,
  conf.int = TRUE,
  conf.level = 0.95,
  exponentiate = FALSE,
  variable_labels = NULL,
  term_labels = NULL,
  interaction_sep = " * ",
  categorical_terms_pattern = "{level}",
  add_reference_rows = TRUE,
  no_reference_row = NULL,
  intercept = FALSE,
  include = dplyr::everything(),
  add_pairwise_contrasts = FALSE,
  pairwise_variables = broom.helpers::all_categorical(),
  keep_model_terms = FALSE,
  pairwise_reverse = TRUE,
  emmeans_args = list(),
  significance = 1 - conf.level,
  significance_labels = NULL,
  return_data = FALSE,
  ...
)

ggcoef_plot(
  data,
  x = "estimate",
  y = "label",
  exponentiate = FALSE,
  y_labeller = NULL,
  point_size = 2,
  point_stroke = 2,
  point_fill = "white",
  colour = NULL,
  colour_guide = TRUE,
  colour_lab = "",
  colour_labels = ggplot2::waiver(),
  shape = "significance",
  shape_values = c(16, 21),
  shape_guide = TRUE,
  shape_lab = "",
  errorbar = TRUE,
  errorbar_height = 0.1,
  errorbar_coloured = FALSE,
  stripped_rows = TRUE,
  strips_odd = "#11111111",
  strips_even = "#00000000",
  vline = TRUE,
  vline_colour = "grey50",
  dodged = FALSE,
  dodged_width = 0.8,
  facet_row = "var_label",
  facet_col = NULL,
  facet_labeller = "label_value",
  plot_title = NULL
)

Arguments

model

a regression model object

tidy_fun

(function)
Option to specify a custom tidier function.

tidy_args

Additional arguments passed to broom.helpers::tidy_plus_plus() and to tidy_fun

conf.int

(logical)
Should confidence intervals be computed? (see broom::tidy())

conf.level

the confidence level to use for the confidence interval if conf.int = TRUE; must be strictly greater than 0 and less than 1; defaults to 0.95, which corresponds to a 95 percent confidence interval

exponentiate

if TRUE a logarithmic scale will be used for x-axis

variable_labels

(formula-list-selector)
A named list or a named vector of custom variable labels.

term_labels

(list or vector)
A named list or a named vector of custom term labels.

interaction_sep

(string)
Separator for interaction terms.

categorical_terms_pattern

(glue pattern)
A glue pattern for labels of categorical terms with treatment or sum contrasts (see model_list_terms_levels()).

add_reference_rows

(logical)
Should reference rows be added?

no_reference_row

(tidy-select)
Variables for those no reference row should be added, when add_reference_rows = TRUE.

intercept

(logical)
Should the intercept(s) be included?

include

(tidy-select)
Variables to include. Default is everything(). See also all_continuous(), all_categorical(), all_dichotomous() and all_interaction().

group_by

(tidy-select)
One or several variables to group by. Default is auto_group_by(). Use NULL to force ungrouping.

group_labels

(string)
An optional named vector of custom term labels.

add_pairwise_contrasts

(logical)
Apply tidy_add_pairwise_contrasts()?

pairwise_variables

(tidy-select)
Variables to add pairwise contrasts.

keep_model_terms

(logical)
Keep original model terms for variables where pairwise contrasts are added? (default is FALSE)

pairwise_reverse

(logical)
Determines whether to use "pairwise" (if TRUE) or "revpairwise" (if FALSE), see emmeans::contrast().

emmeans_args

(list)
List of additional parameter to pass to emmeans::emmeans() when computing pairwise contrasts.

significance

level (between 0 and 1) below which a coefficient is consider to be significantly different from 0 (or 1 if exponentiate = TRUE), NULL for not highlighting such coefficients

significance_labels

optional vector with custom labels for significance variable

show_p_values

if TRUE, add p-value to labels

signif_stars

if TRUE, add significant stars to labels

return_data

if TRUE, will return the data.frame used for plotting instead of the plot

...

parameters passed to ggcoef_plot()

table_stat

statistics to display in the table, use any column name returned by the tidier or "ci" for confidence intervals formatted according to ci_pattern

table_header

optional custom headers for the table

table_text_size

text size for the table

table_stat_label

optional named list of labeller functions for the displayed statistic (see examples)

ci_pattern

glue pattern for confidence intervals in the table

table_widths

relative widths of the forest plot and the coefficients table

table_witdhs

use table_widths instead

models

named list of models

type

a dodged plot, a faceted plot or multiple table plots?

data

a data frame containing data to be plotted, typically the output of ggcoef_model(), ggcoef_compare() or ggcoef_multinom() with the option return_data = TRUE

x, y

variables mapped to x and y axis

y_labeller

optional function to be applied on y labels (see examples)

point_size

size of the points

point_stroke

thickness of the points

point_fill

fill colour for the points

colour

optional variable name to be mapped to colour aesthetic

colour_guide

should colour guide be displayed in the legend?

colour_lab

label of the colour aesthetic in the legend

colour_labels

labels argument passed to ggplot2::scale_colour_discrete() and ggplot2::discrete_scale()

shape

optional variable name to be mapped to the shape aesthetic

shape_values

values of the different shapes to use in ggplot2::scale_shape_manual()

shape_guide

should shape guide be displayed in the legend?

shape_lab

label of the shape aesthetic in the legend

errorbar

should error bars be plotted?

errorbar_height

height of error bars

errorbar_coloured

should error bars be colored as the points?

stripped_rows

should stripped rows be displayed in the background?

strips_odd

color of the odd rows

strips_even

color of the even rows

vline

should a vertical line be drawn at 0 (or 1 if exponentiate = TRUE)?

vline_colour

colour of vertical line

dodged

should points be dodged (according to the colour aesthetic)?

dodged_width

width value for ggplot2::position_dodge()

facet_row

variable name to be used for row facets

facet_col

optional variable name to be used for column facets

facet_labeller

labeller function to be used for labeling facets; if labels are too long, you can use ggplot2::label_wrap_gen() (see examples), more information in the documentation of ggplot2::facet_grid()

plot_title

an optional plot title

Value

A ggplot2 plot or a tibble if return_data = TRUE.

Details

For more control, you can use the argument return_data = TRUE to get the produced tibble, apply any transformation of your own and then pass your customized tibble to ggcoef_plot().

Functions

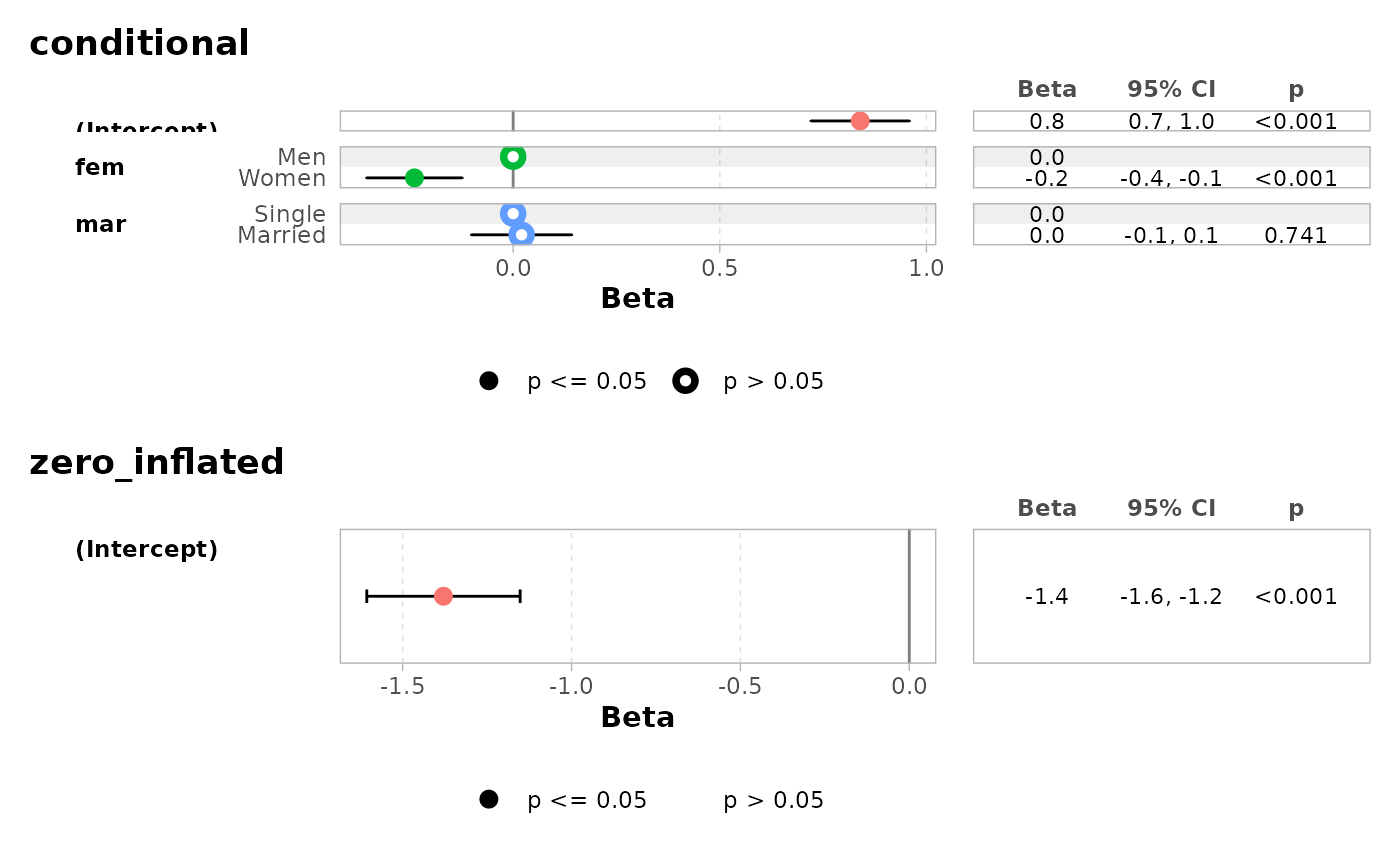

• ggcoef_table(): a variation of ggcoef_model() adding a table with estimates, confidence intervals and p-values

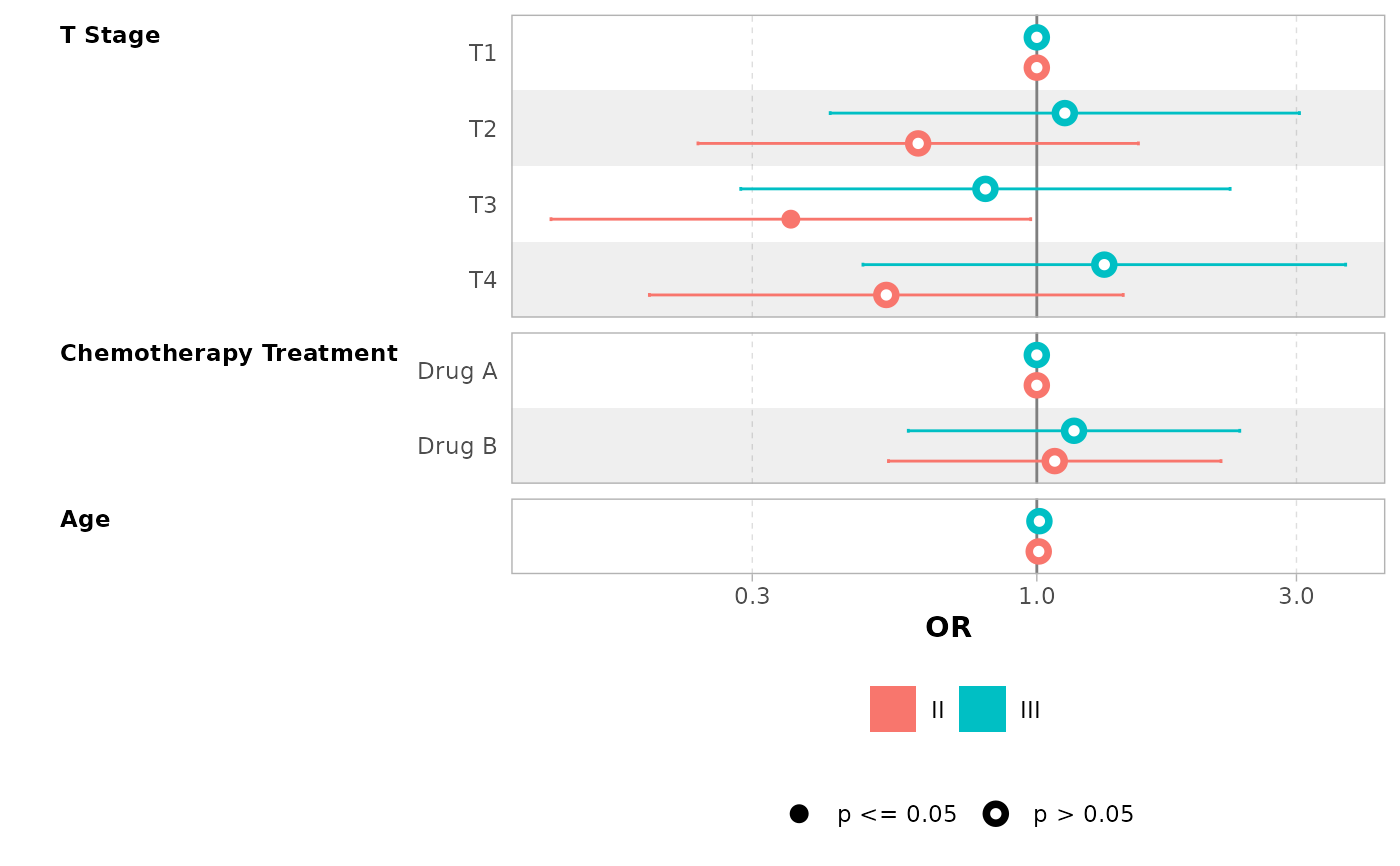

• ggcoef_dodged(): a dodged variation of ggcoef_model() for multi groups models

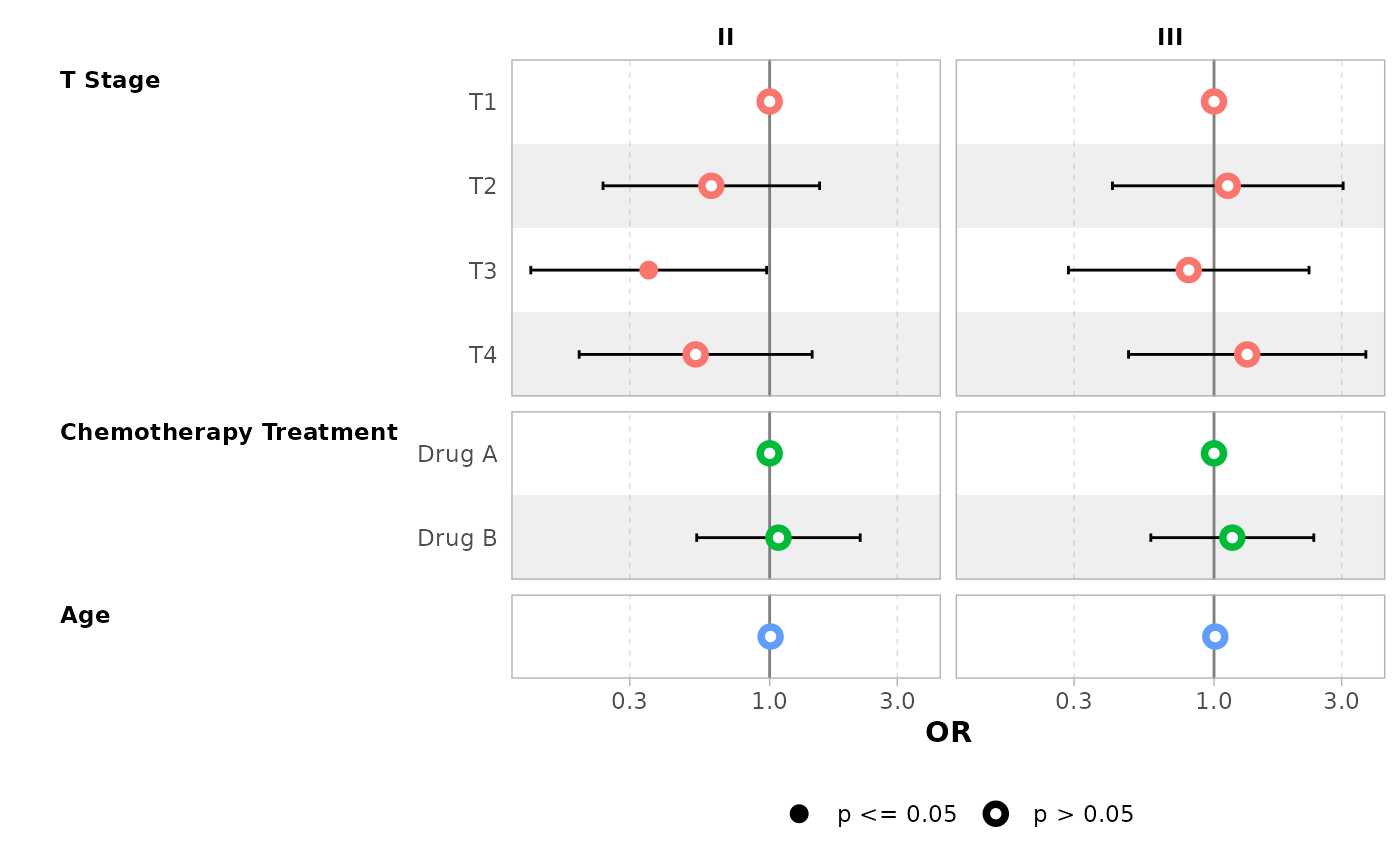

• ggcoef_faceted(): a faceted variation of ggcoef_model() for multi groups models

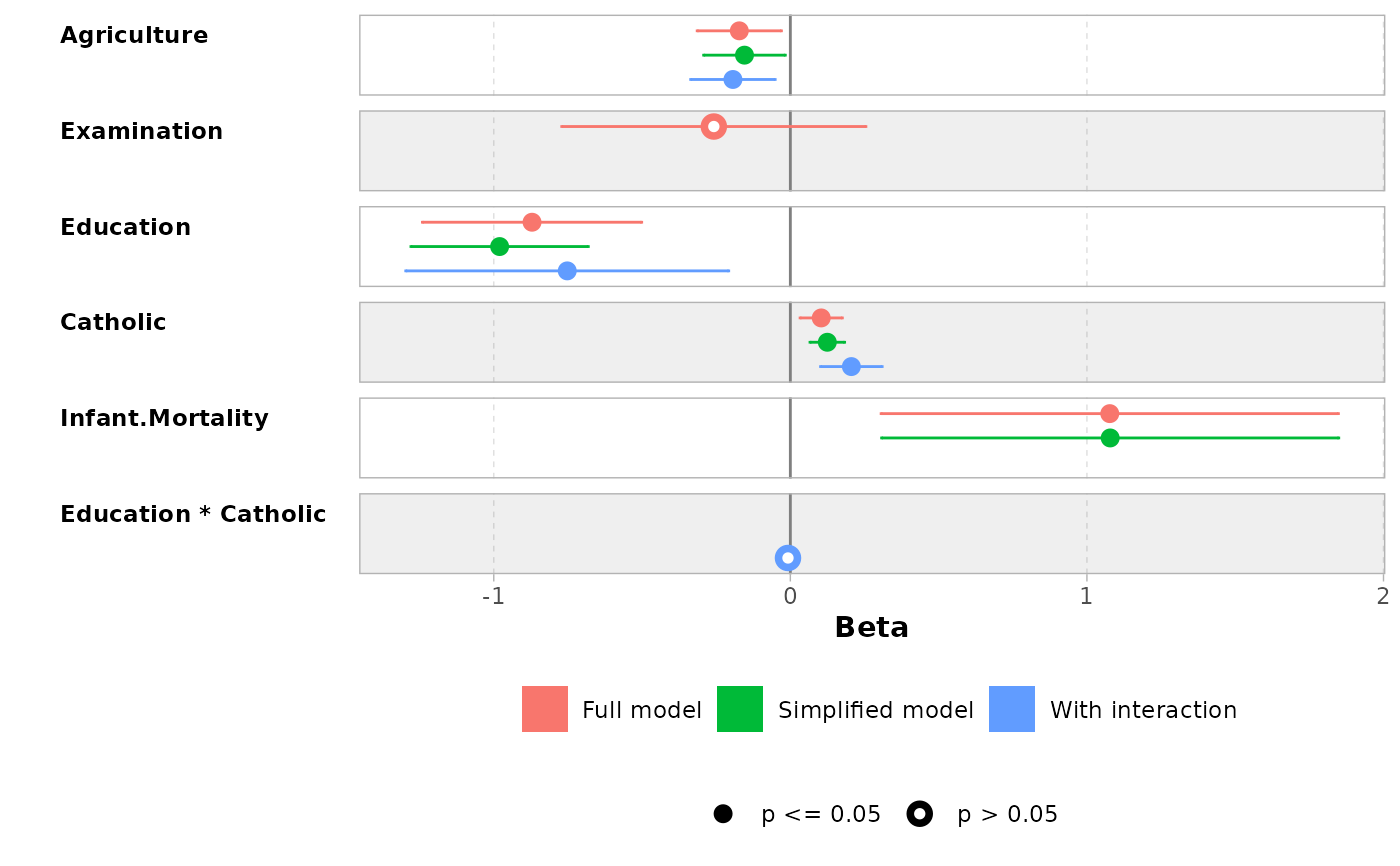

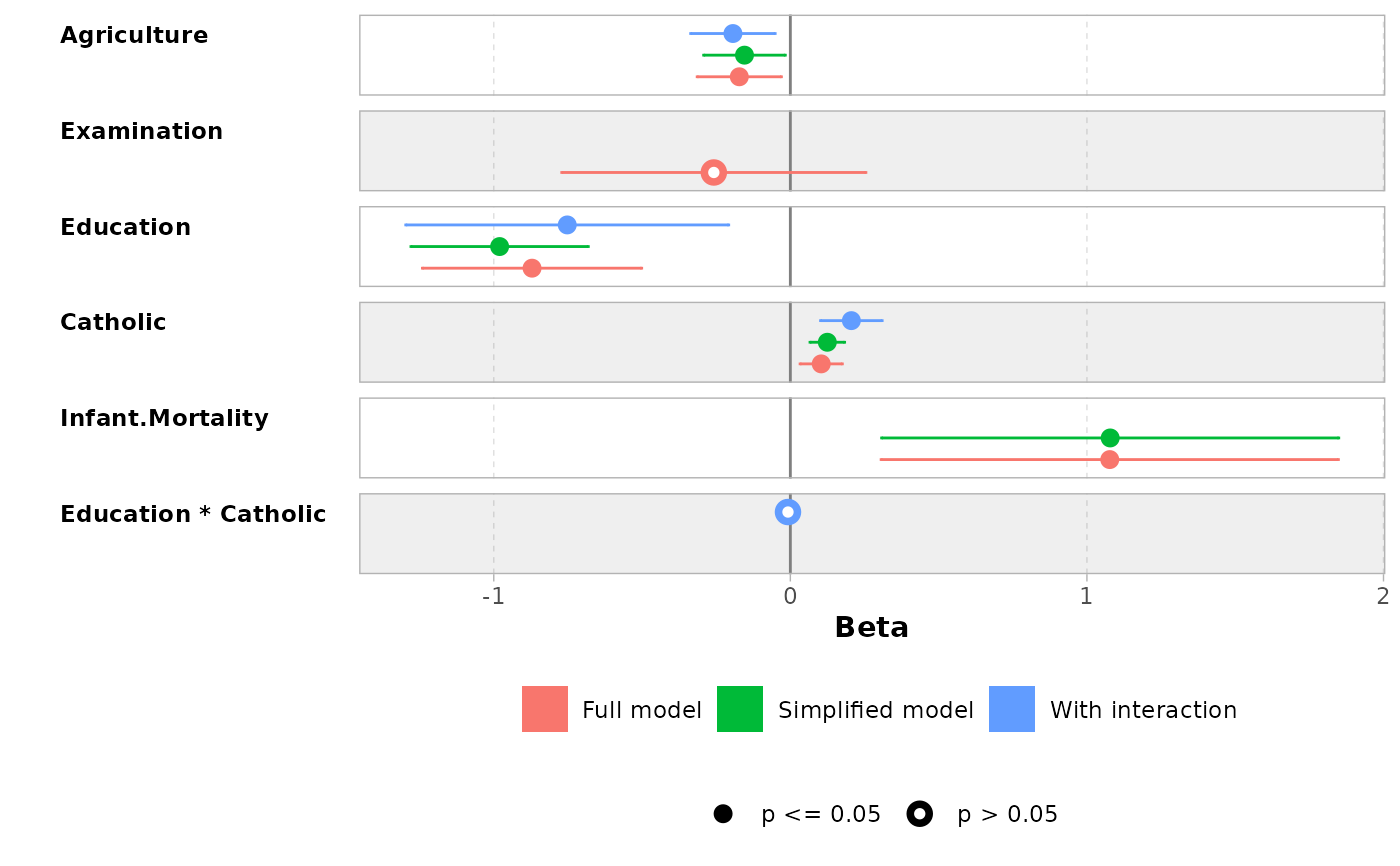

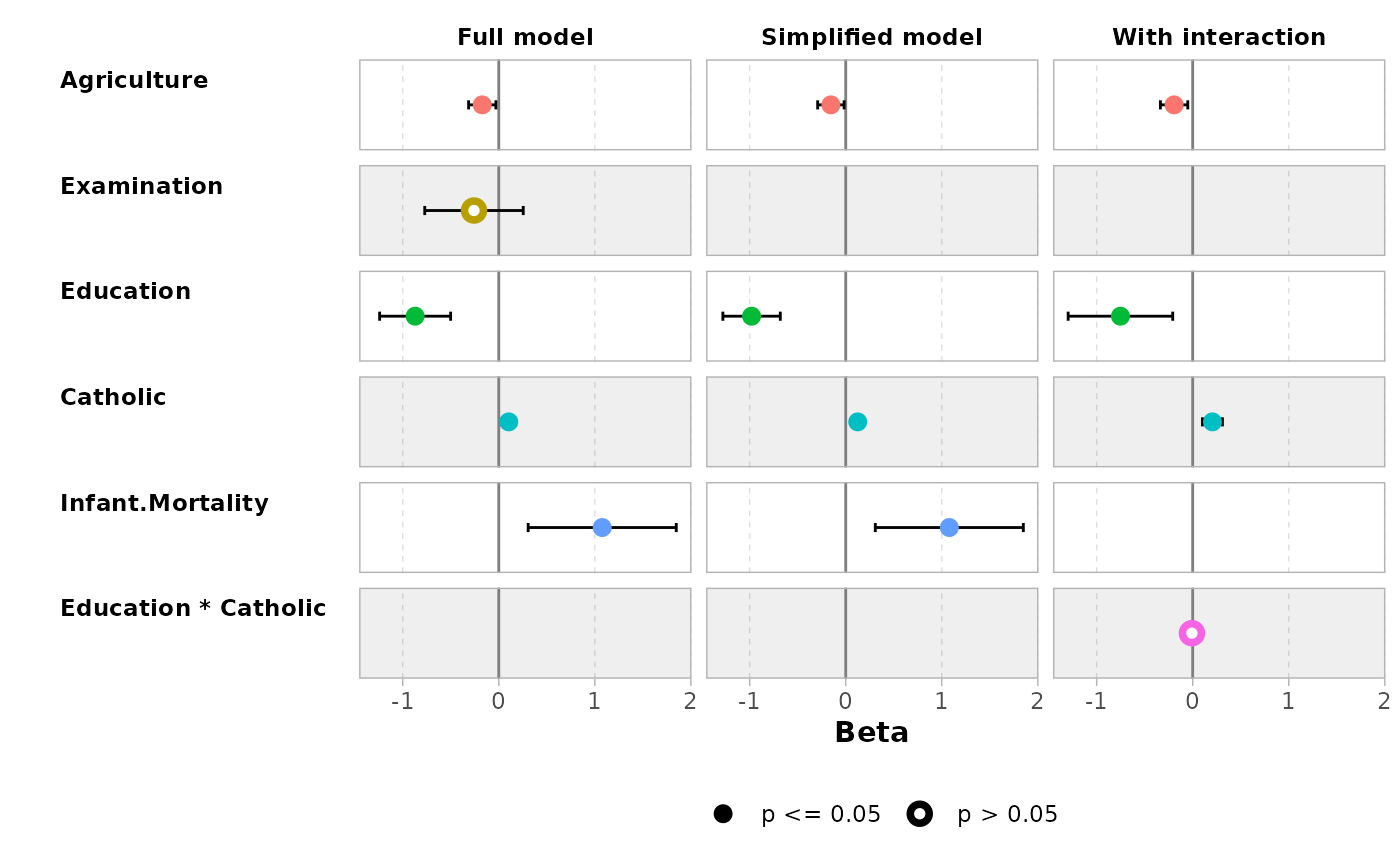

• ggcoef_compare(): designed for displaying several models on the same plot.

• ggcoef_plot(): plot a tidy tibble of coefficients

See also

vignette("ggcoef_model")

Examples

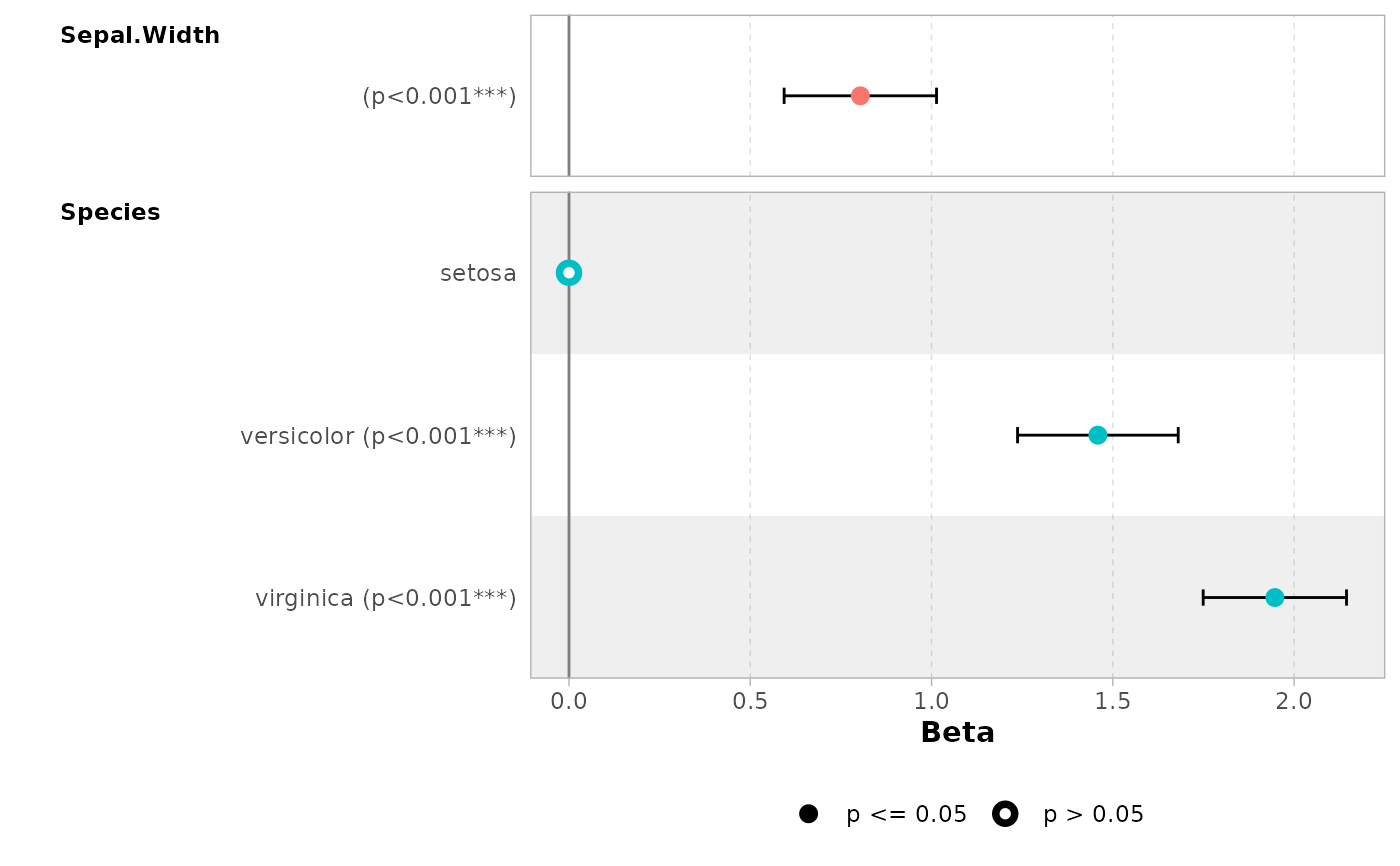

mod <- lm(Sepal.Length ~ Sepal.Width + Species, data = iris)
ggcoef_model(mod)

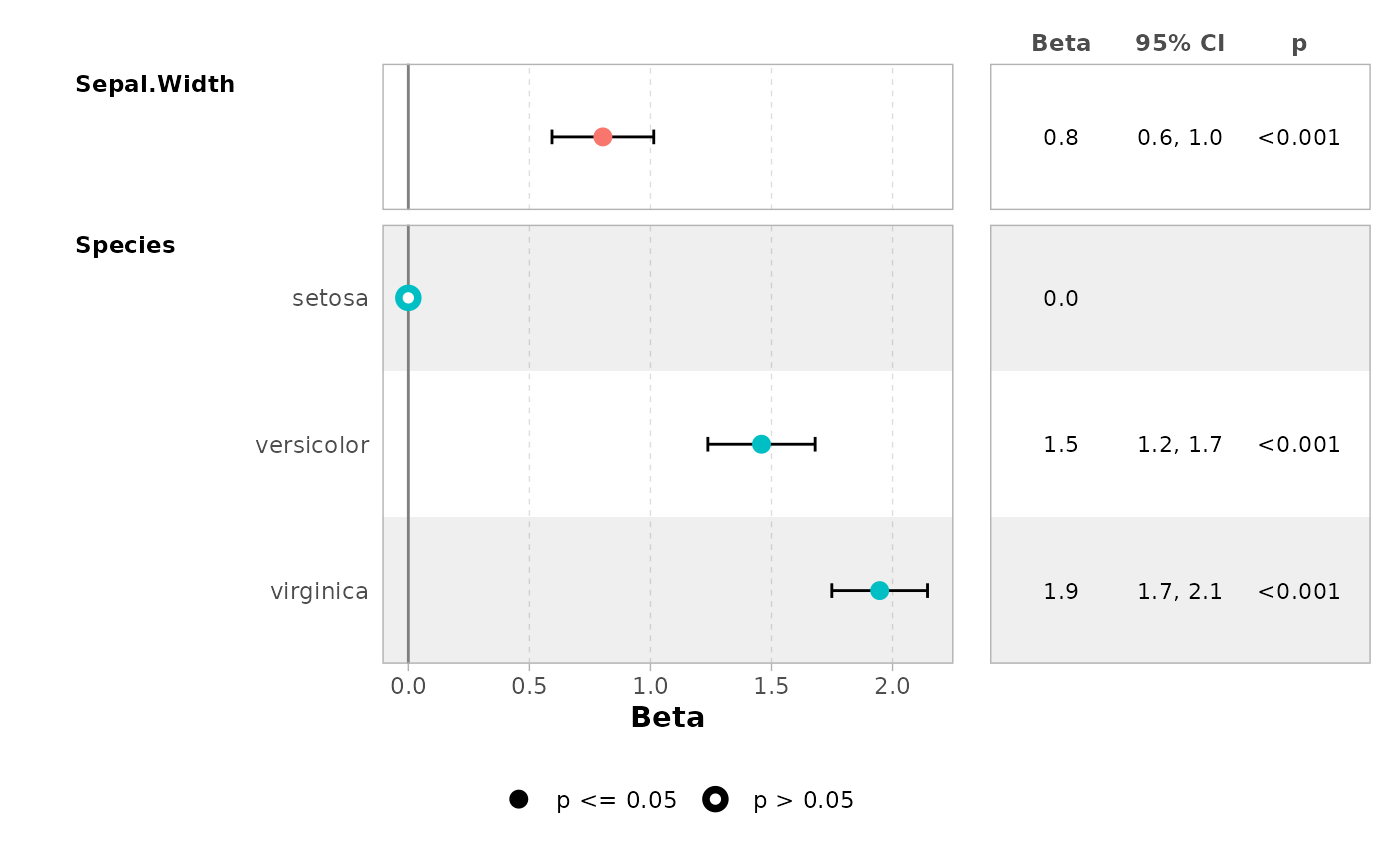

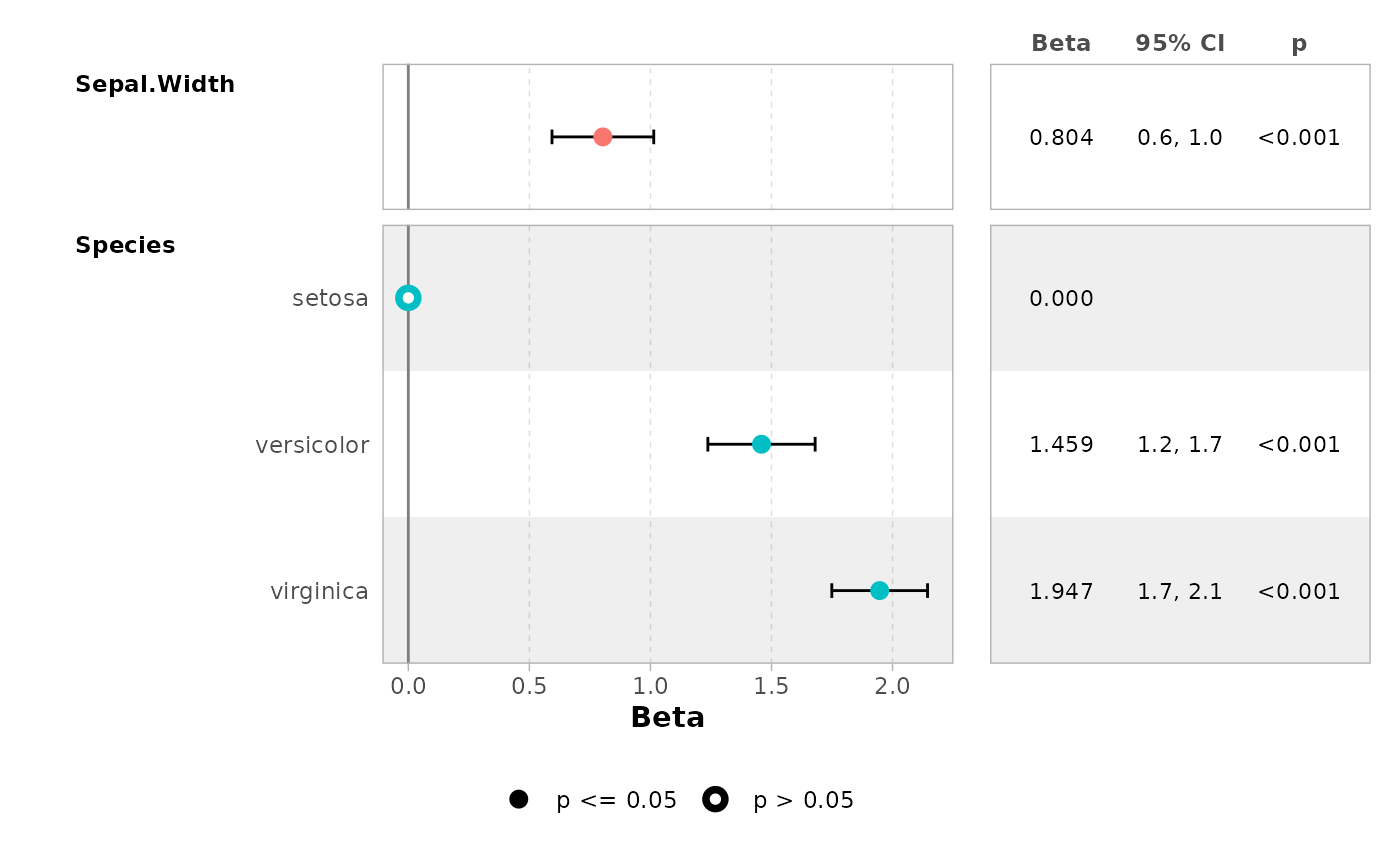

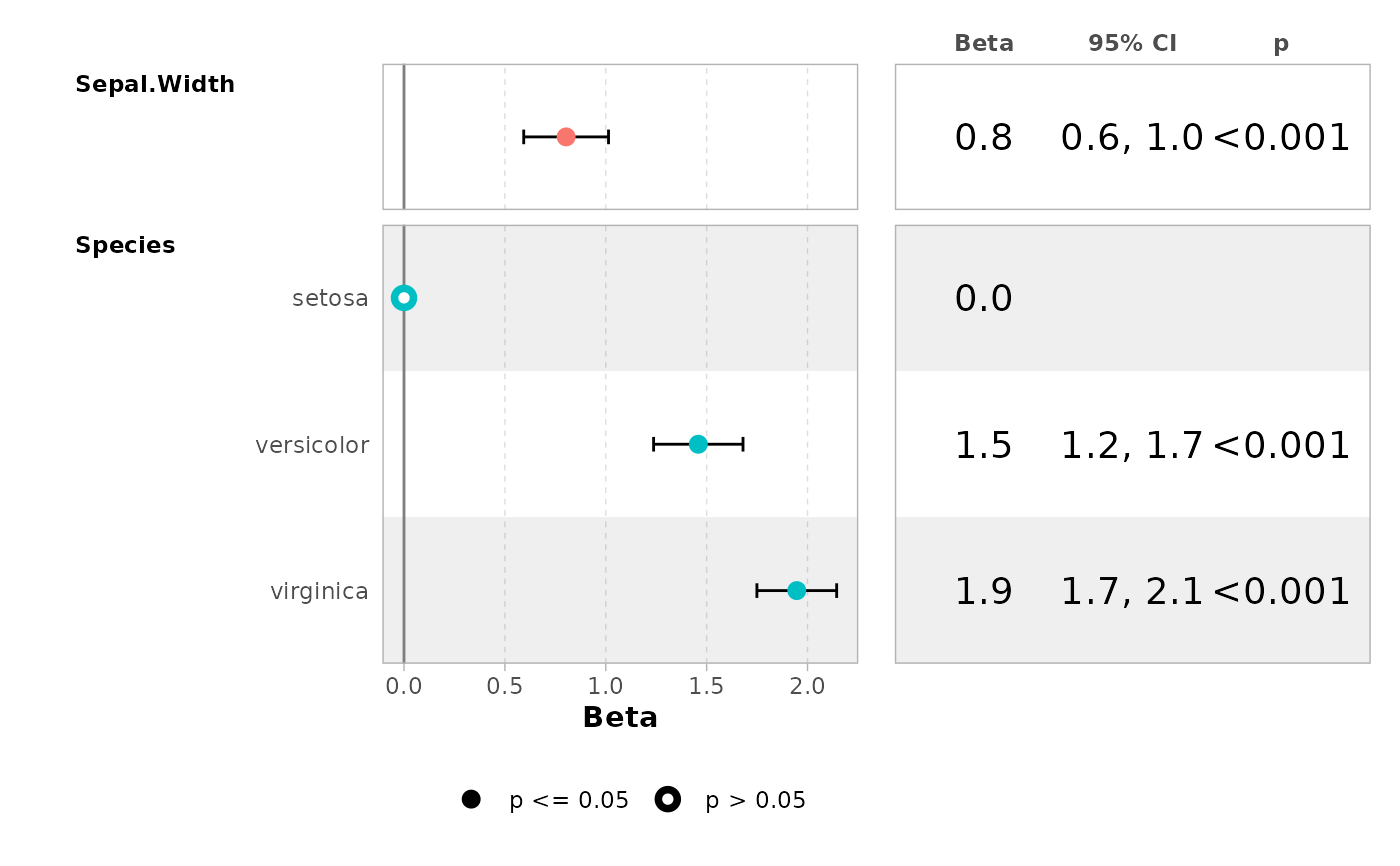

ggcoef_table(mod)



# \donttest{

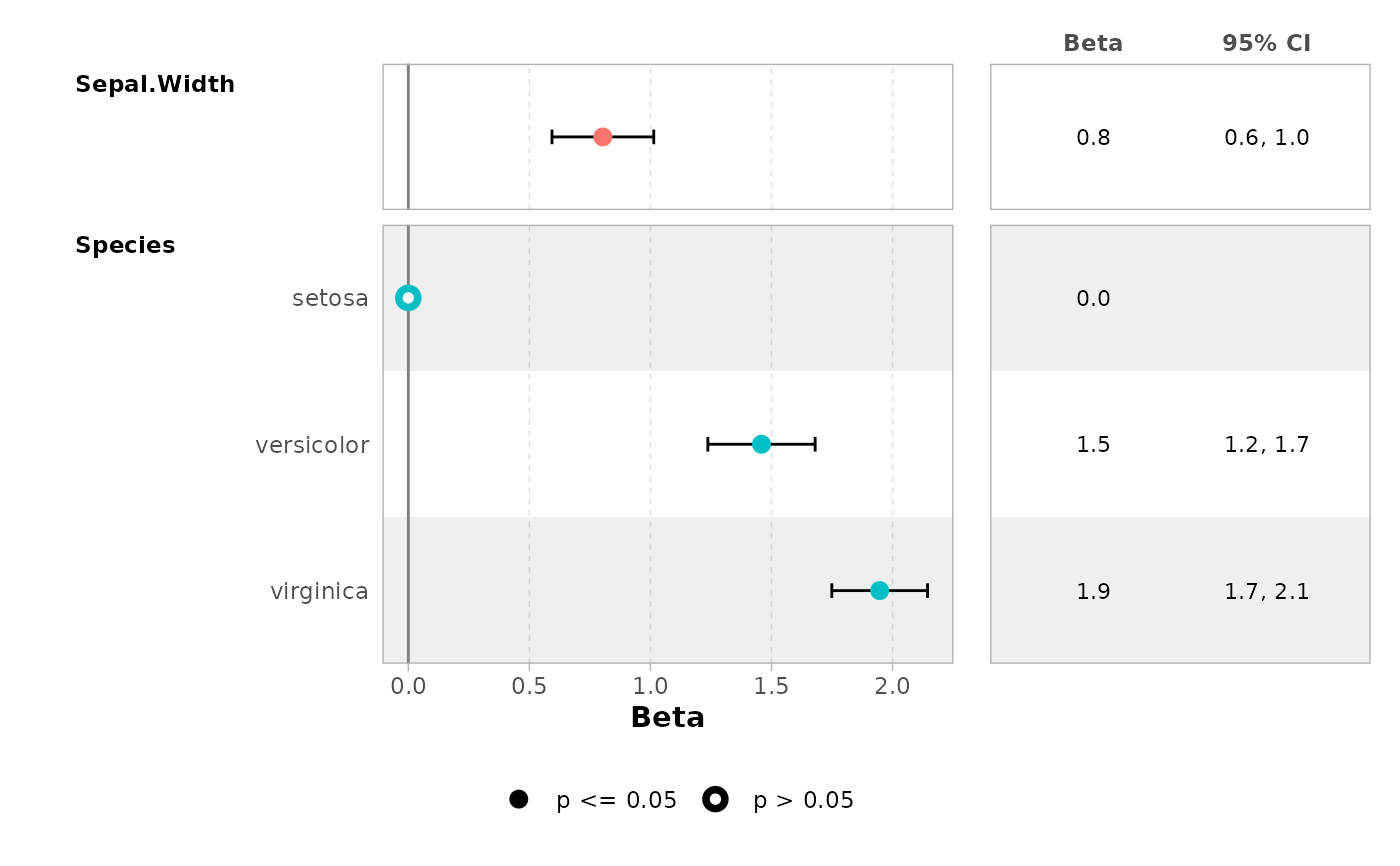

ggcoef_table(mod, table_stat = c("estimate", "ci"))


ggcoef_table(
  mod,
  table_stat_label = list(
    estimate = scales::label_number(.001)
  )
)


ggcoef_table(mod, table_text_size = 5, table_widths = c(1, 1))


# a logistic regression example
d_titanic <- as.data.frame(Titanic)
d_titanic$Survived <- factor(d_titanic$Survived, c("No", "Yes"))
mod_titanic <- glm(
  Survived ~ Sex * Age + Class,
  weights = Freq,
  data = d_titanic,
  family = binomial
)

# use 'exponentiate = TRUE' to get the Odds Ratio

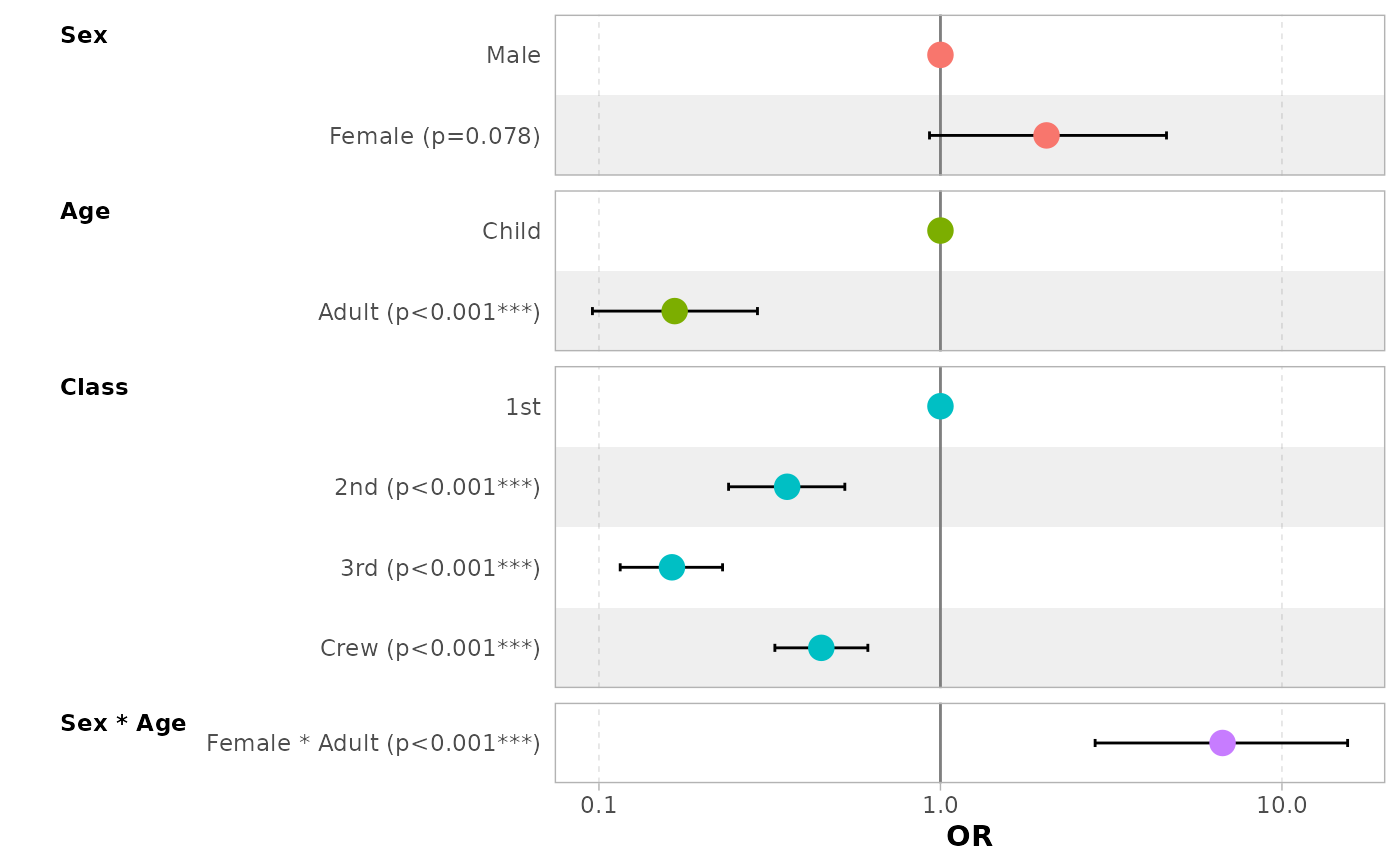

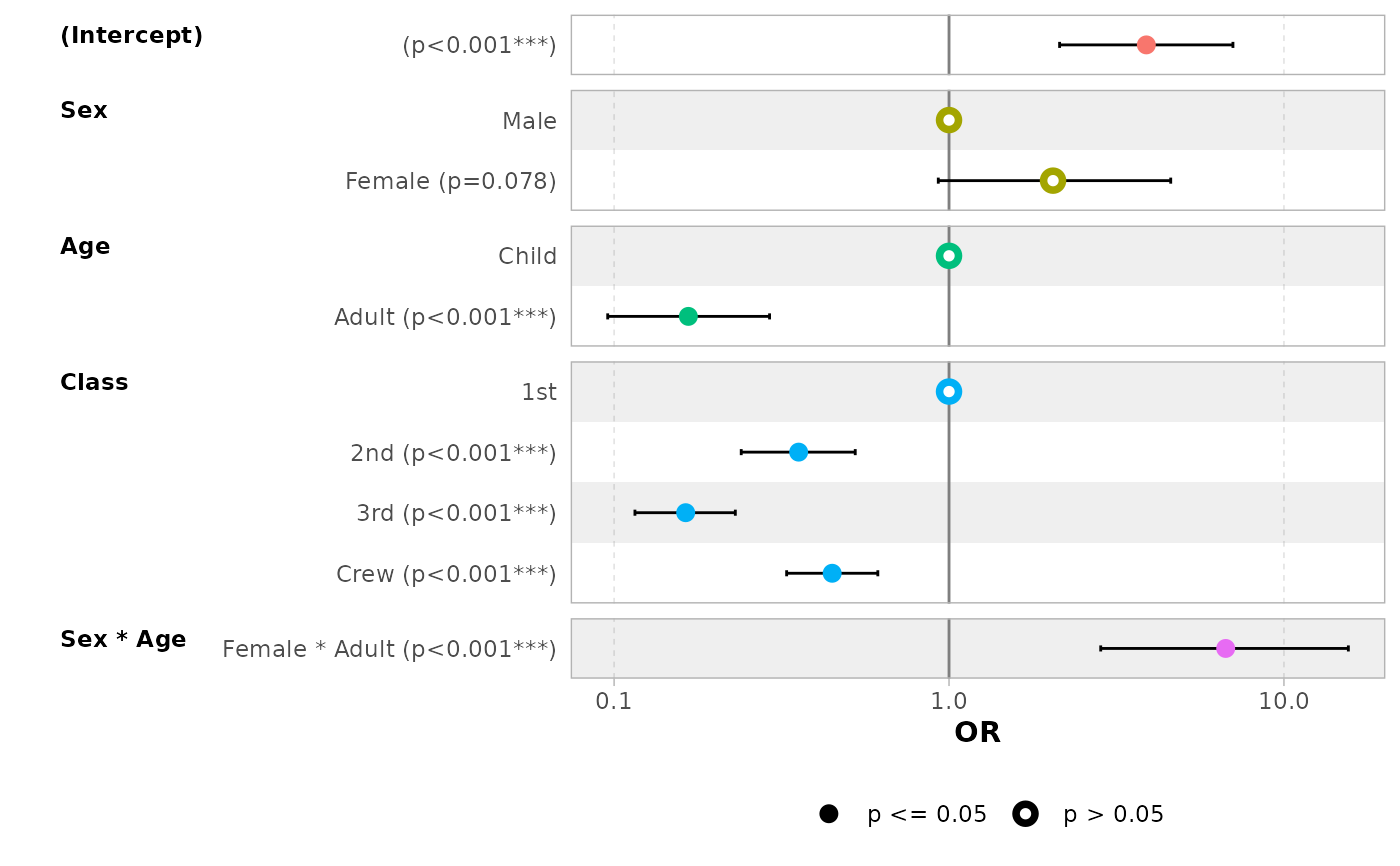

ggcoef_model(mod_titanic, exponentiate = TRUE)

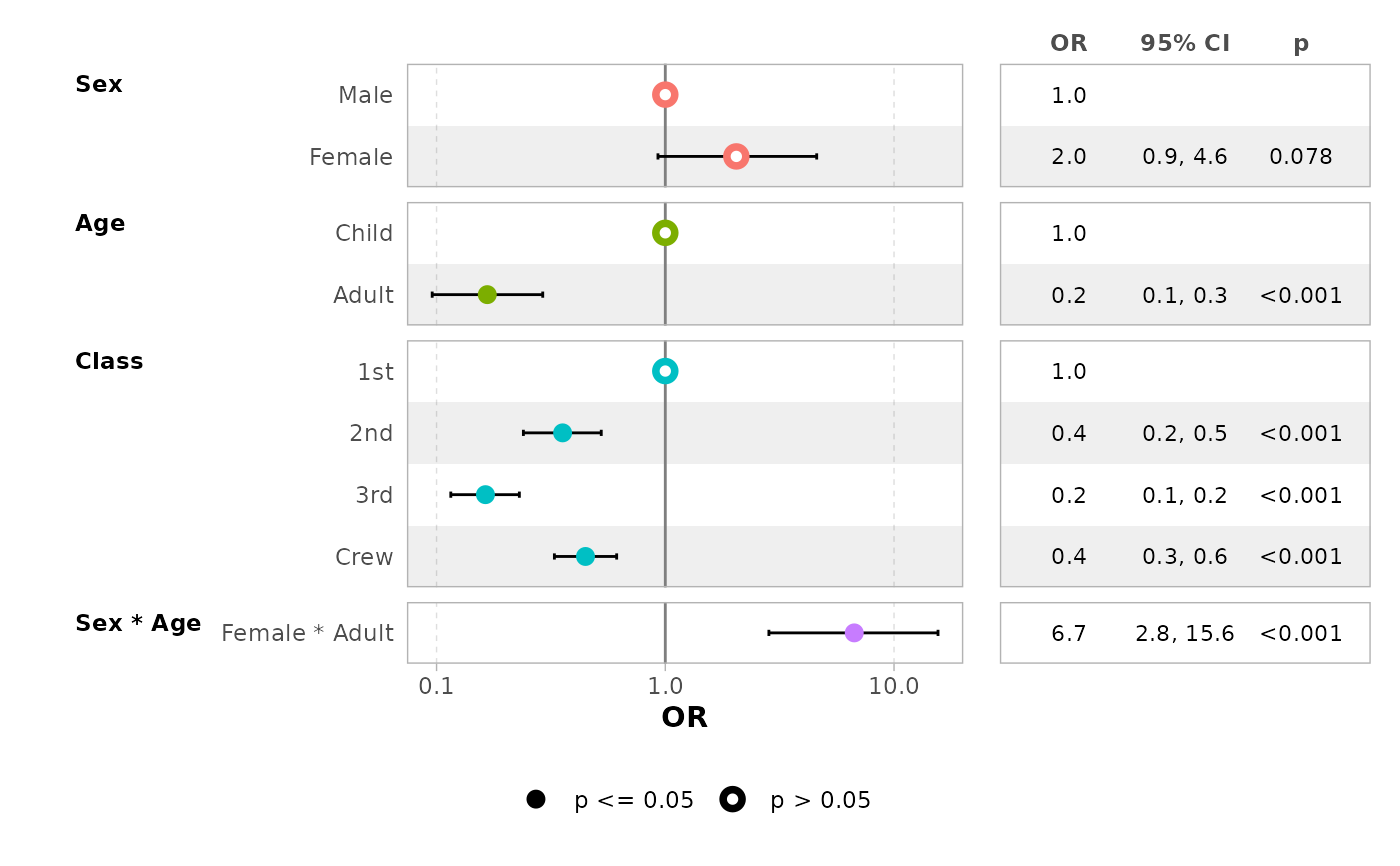

ggcoef_table(mod_titanic, exponentiate = TRUE)


# display intercepts
ggcoef_model(mod_titanic, exponentiate = TRUE, intercept = TRUE)

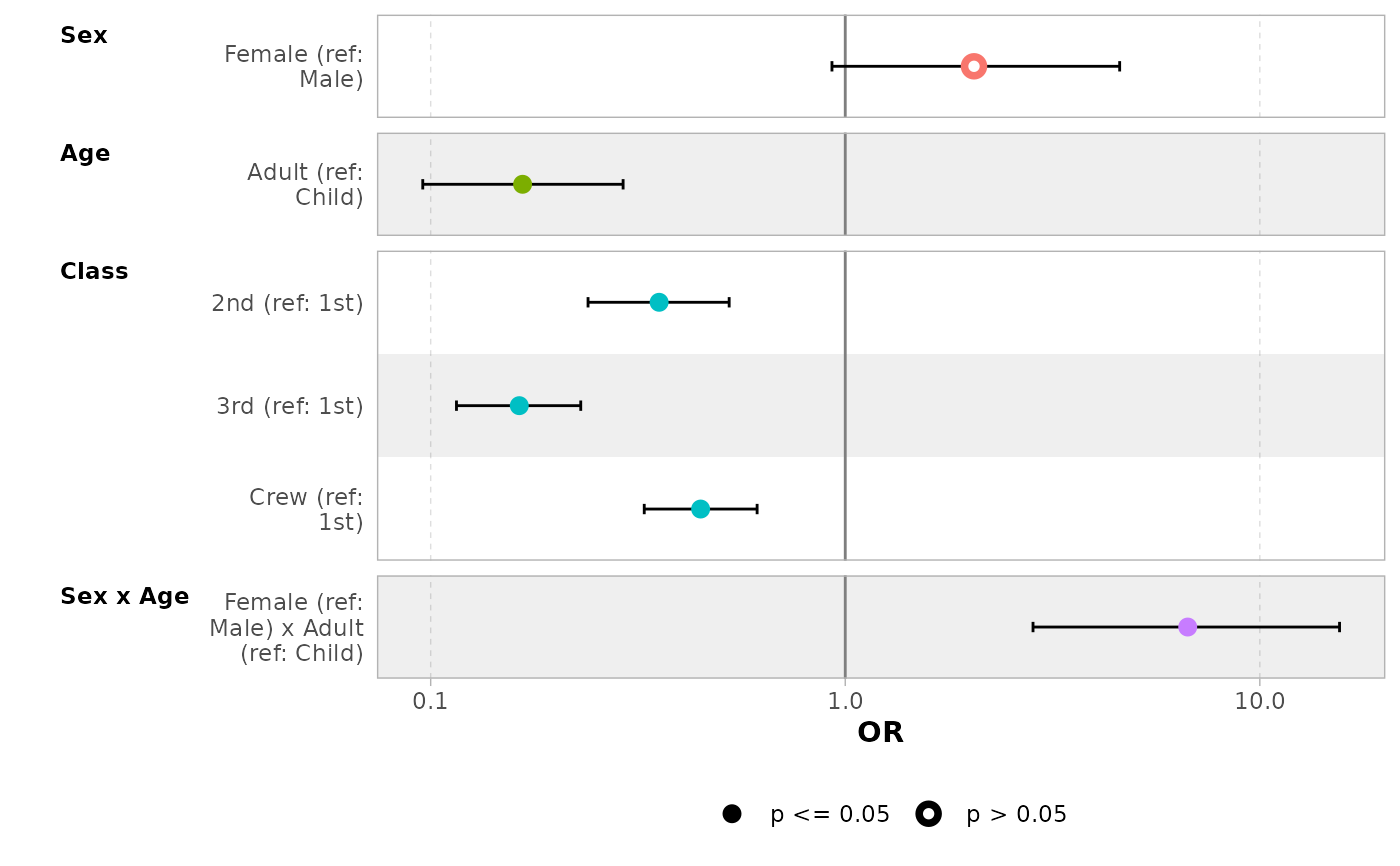

# customize terms labels
ggcoef_model(
  mod_titanic,
  exponentiate = TRUE,
  show_p_values = FALSE,
  signif_stars = FALSE,
  add_reference_rows = FALSE,
  categorical_terms_pattern = "{level} (ref: {reference_level})",
  interaction_sep = " x ",
  y_labeller = scales::label_wrap(15)
)

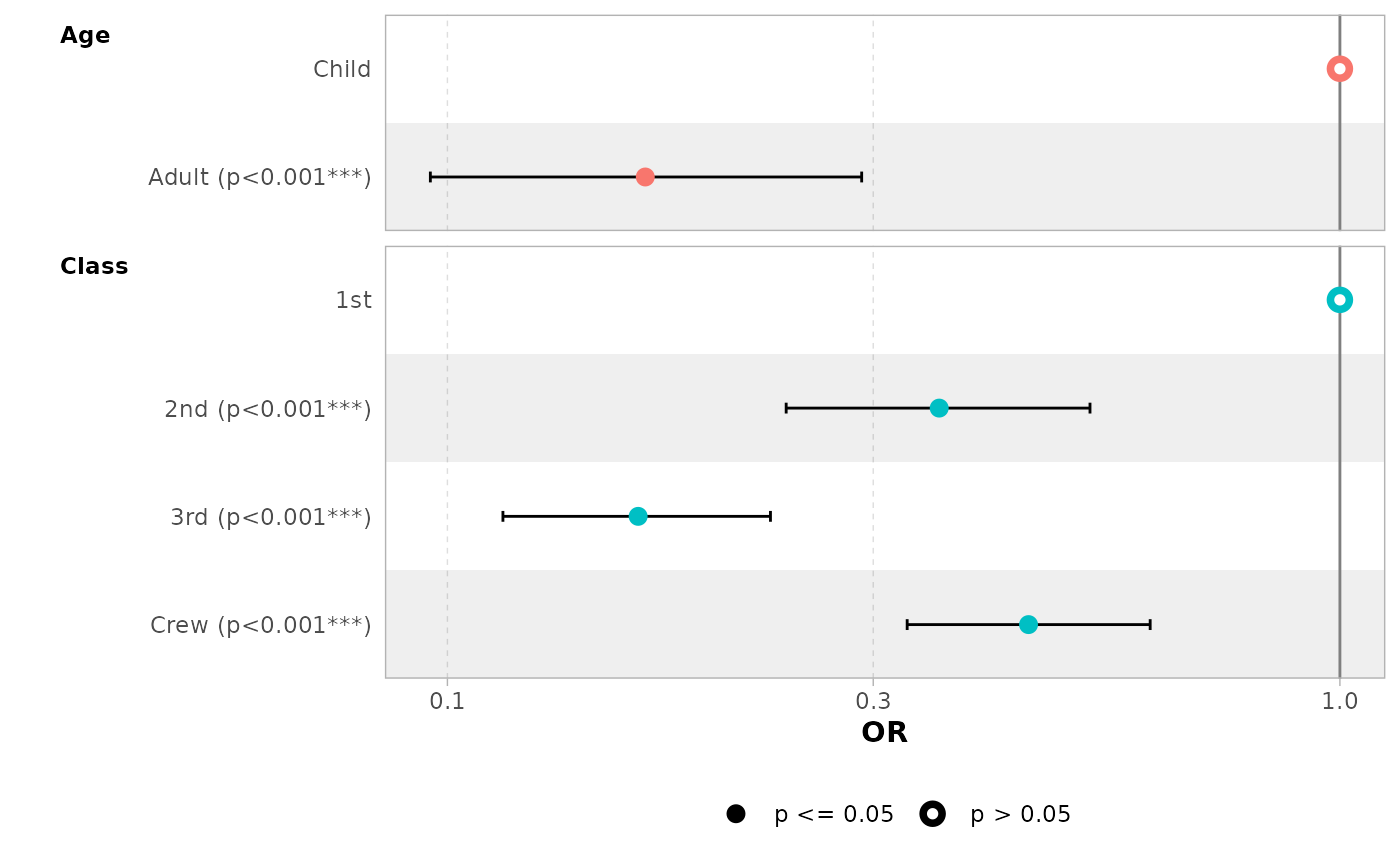

# display only a subset of terms
ggcoef_model(mod_titanic, exponentiate = TRUE, include = c("Age", "Class"))


# do not change points' shape based on significance
ggcoef_model(mod_titanic, exponentiate = TRUE, significance = NULL)

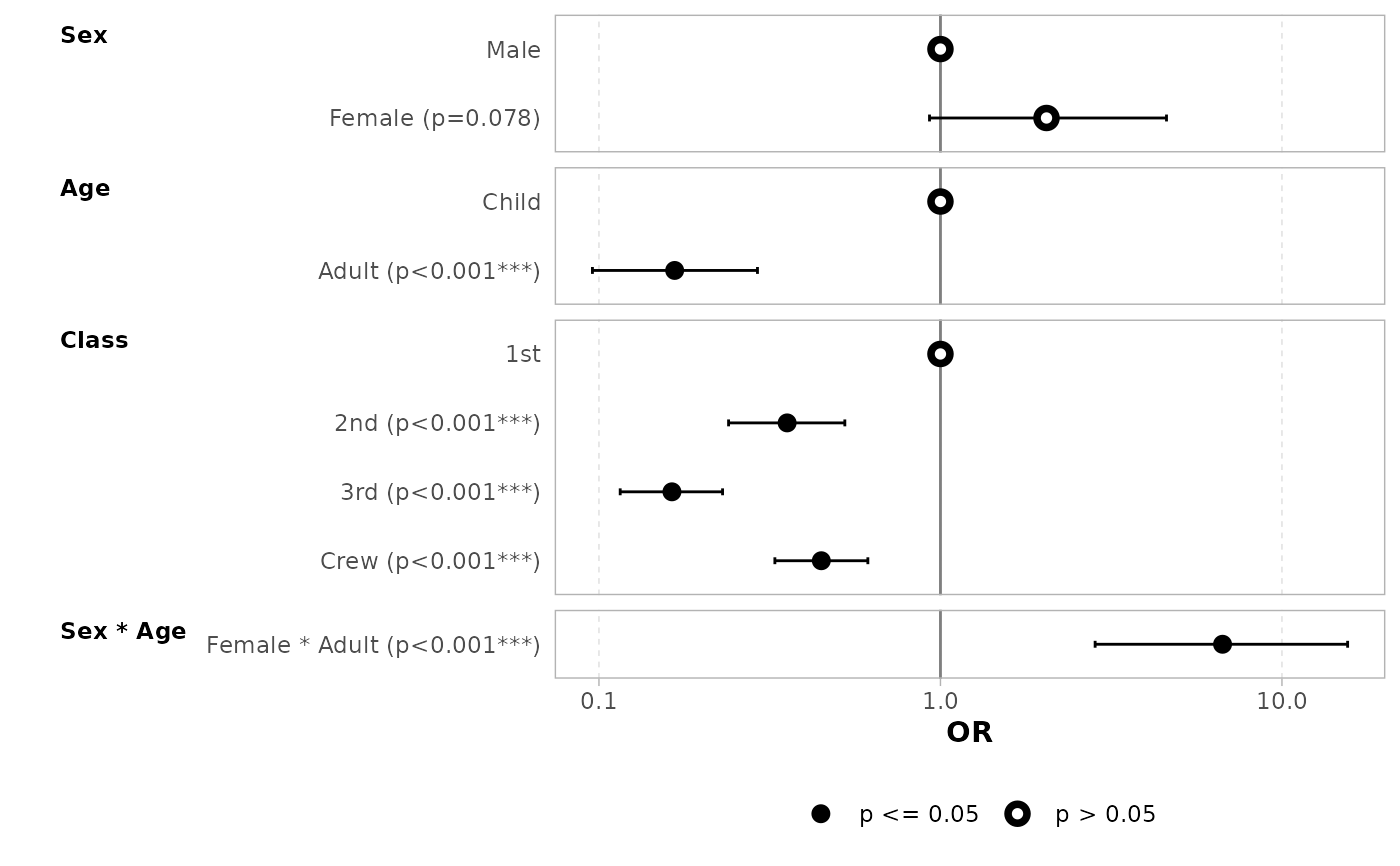

# a black and white version
ggcoef_model(
  mod_titanic,
  exponentiate = TRUE,
  colour = NULL, stripped_rows = FALSE
)

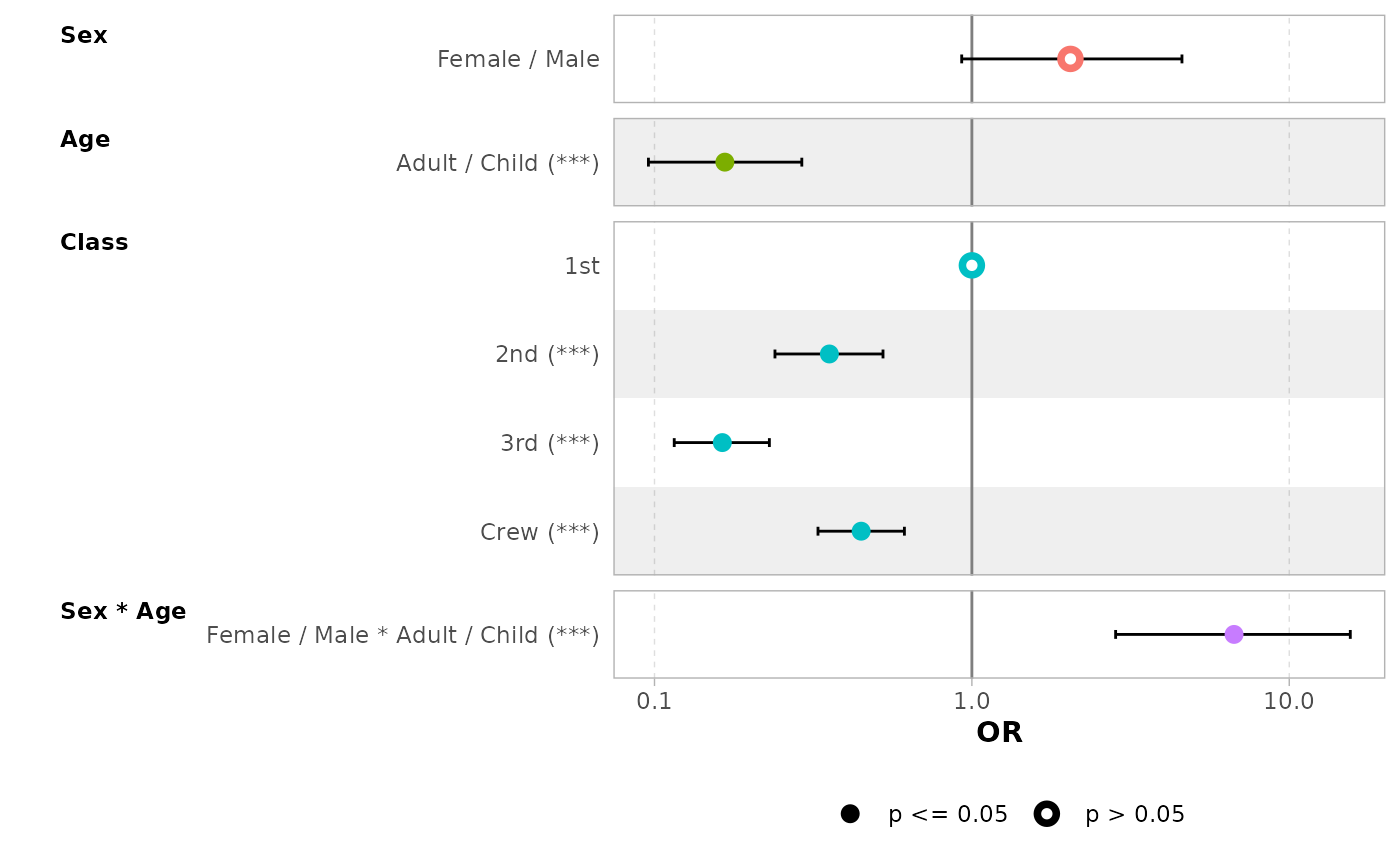

# show dichotomous terms on one row
ggcoef_model(
  mod_titanic,
  exponentiate = TRUE,
  no_reference_row = broom.helpers::all_dichotomous(),
  categorical_terms_pattern =
    "{ifelse(dichotomous, paste0(level, ' / ', reference_level), level)}",
  show_p_values = FALSE
)

# }

# \donttest{

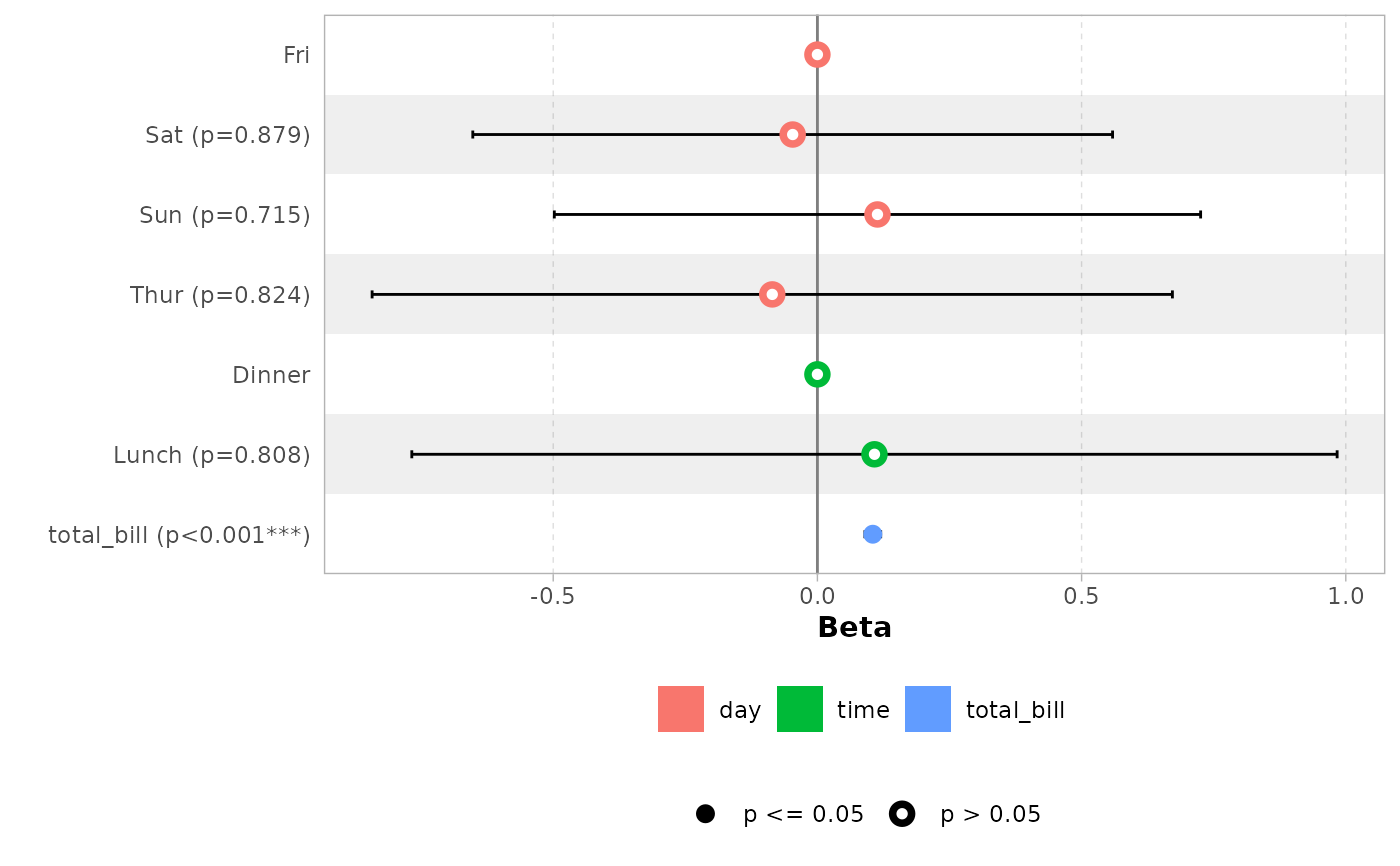

data(tips, package = "reshape")

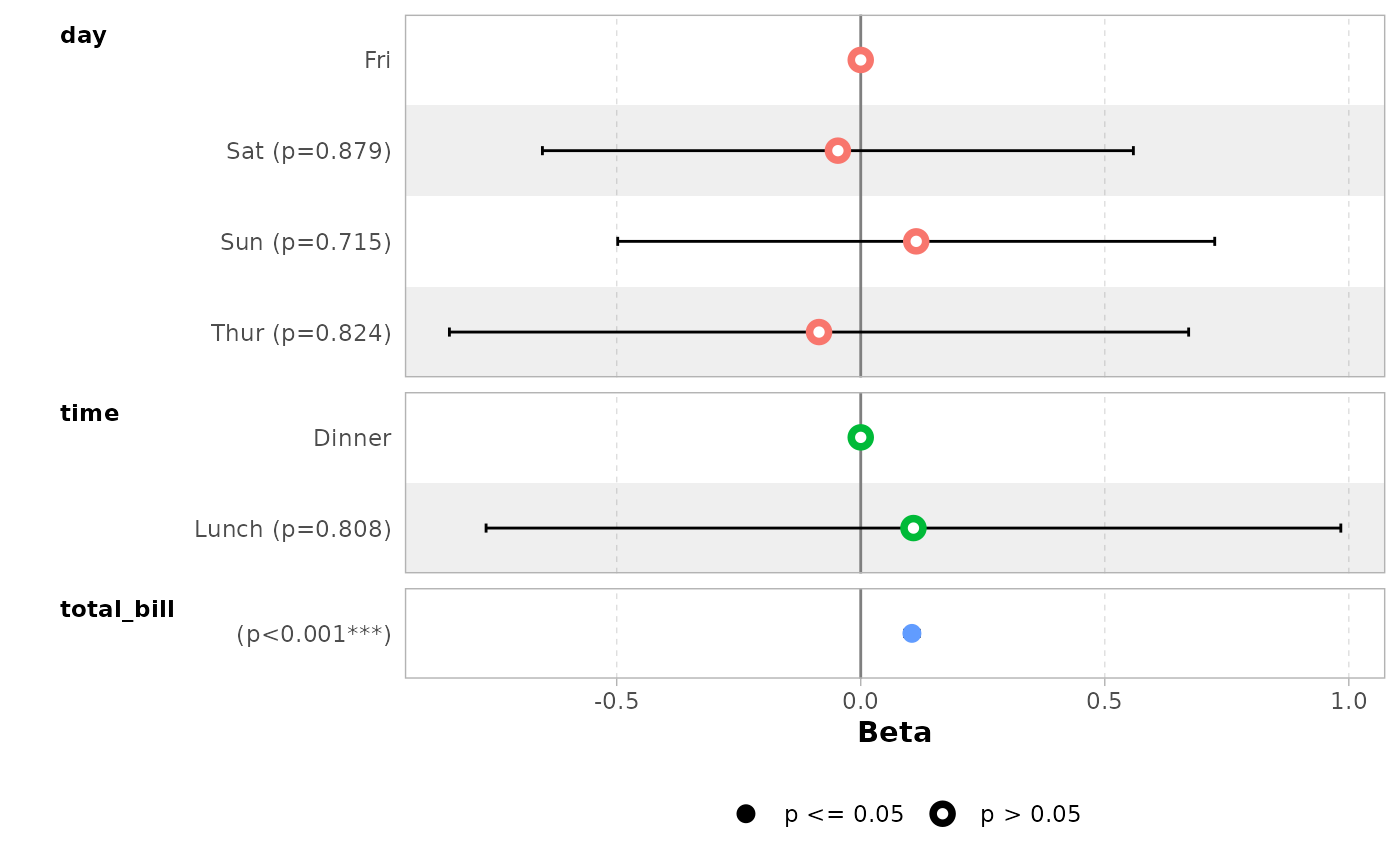

mod_simple <- lm(tip ~ day + time + total_bill, data = tips)
ggcoef_model(mod_simple)

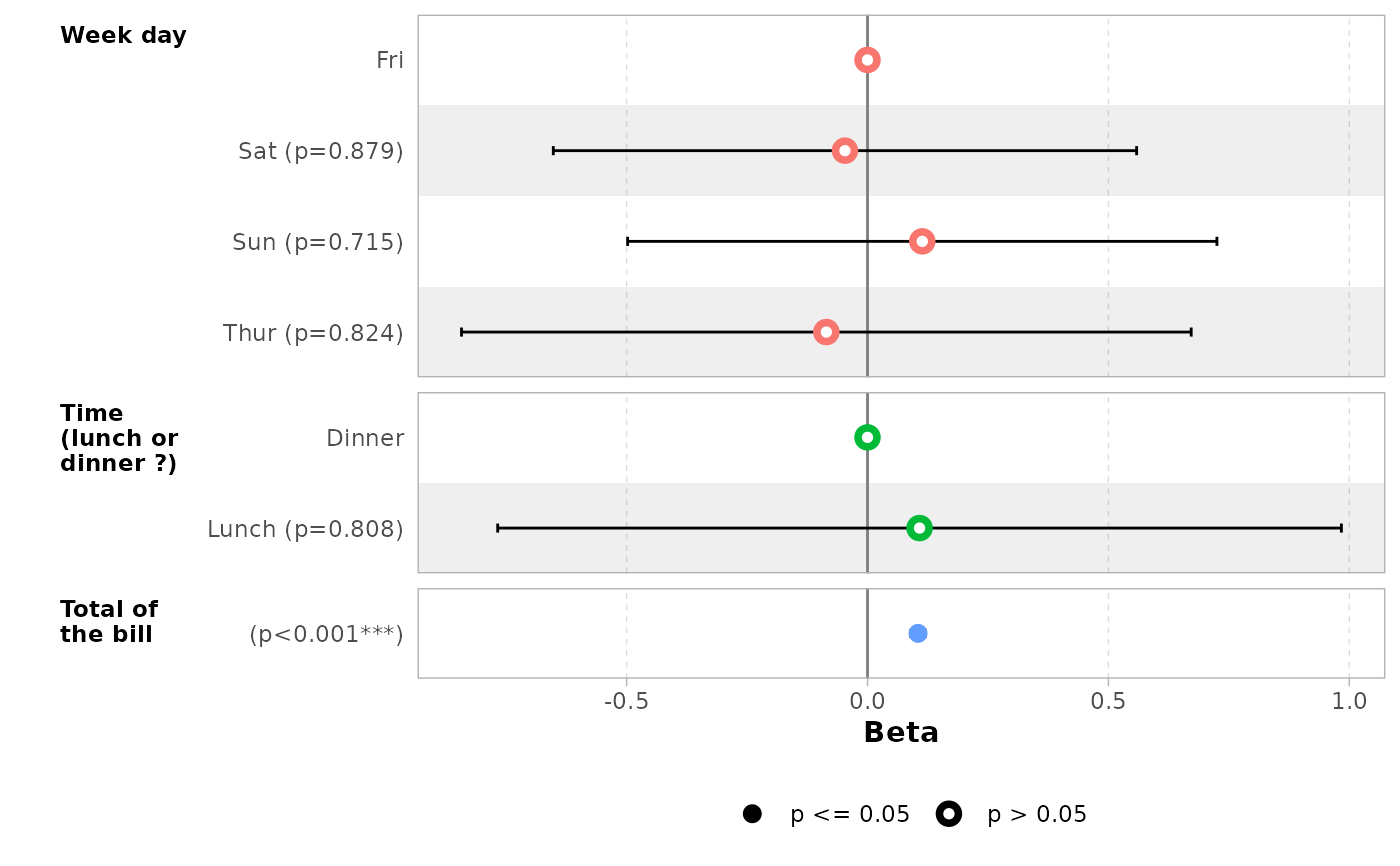

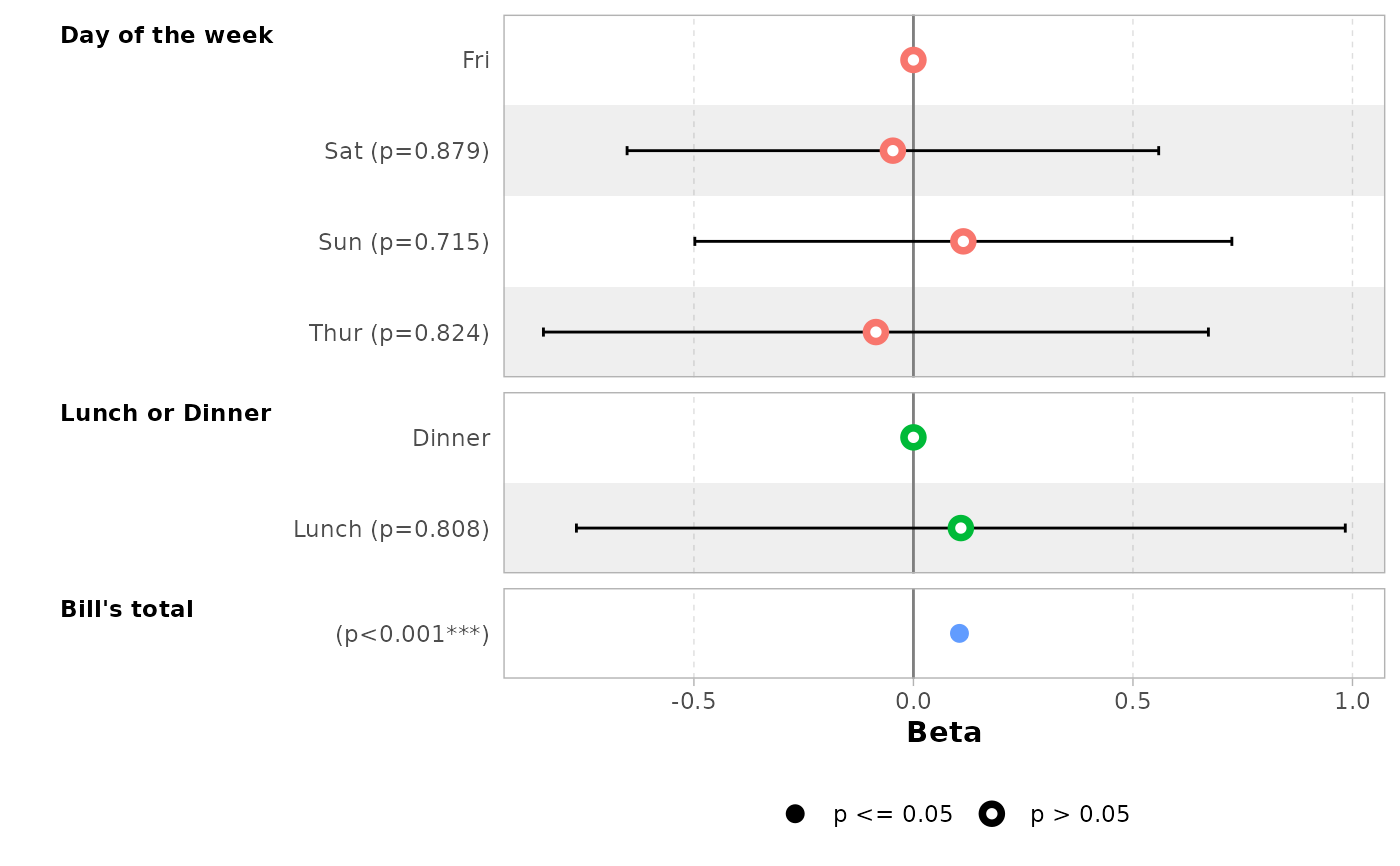

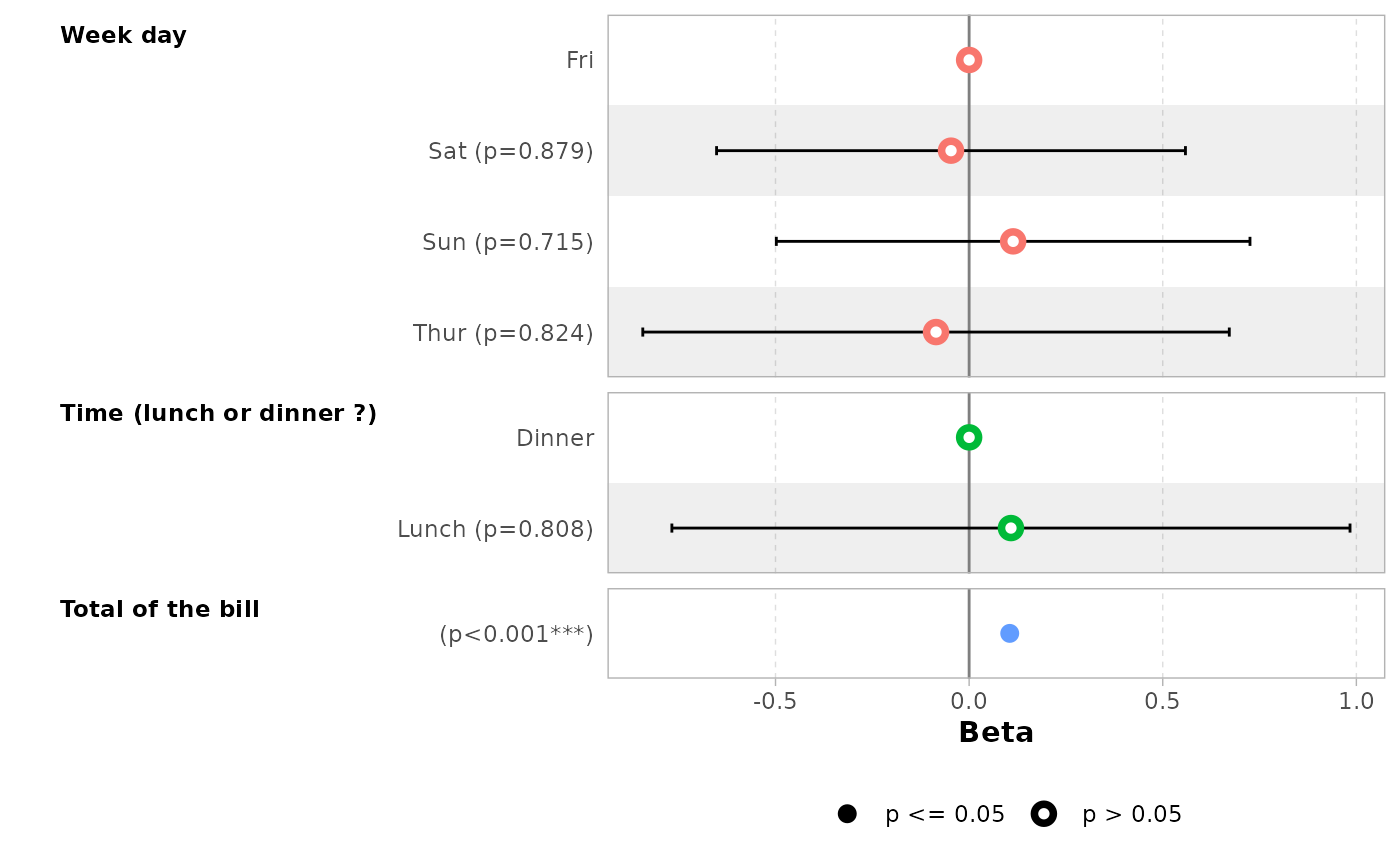

# custom variable labels
# you can use the labelled package to define variable labels
# before computing model
if (requireNamespace("labelled")) {
  tips_labelled <- tips |>
    labelled::set_variable_labels(
      day = "Day of the week",
      time = "Lunch or Dinner",
      total_bill = "Bill's total"
    )
  mod_labelled <- lm(tip ~ day + time + total_bill, data = tips_labelled)
  ggcoef_model(mod_labelled)
}


# you can provide custom variable labels with 'variable_labels'
ggcoef_model(
  mod_simple,
  variable_labels = c(
    day = "Week day",
    time = "Time (lunch or dinner ?)",
    total_bill = "Total of the bill"
  )
)

# if labels are too long, you can use 'facet_labeller' to wrap them
ggcoef_model(
  mod_simple,
  variable_labels = c(
    day = "Week day",
    time = "Time (lunch or dinner ?)",
    total_bill = "Total of the bill"
  ),
  facet_labeller = ggplot2::label_wrap_gen(10)
)


# do not display variable facets but add colour guide
ggcoef_model(mod_simple, facet_row = NULL, colour_guide = TRUE)


# works also with with polynomial terms
mod_poly <- lm(
  tip ~ poly(total_bill, 3) + day,
  data = tips,
)

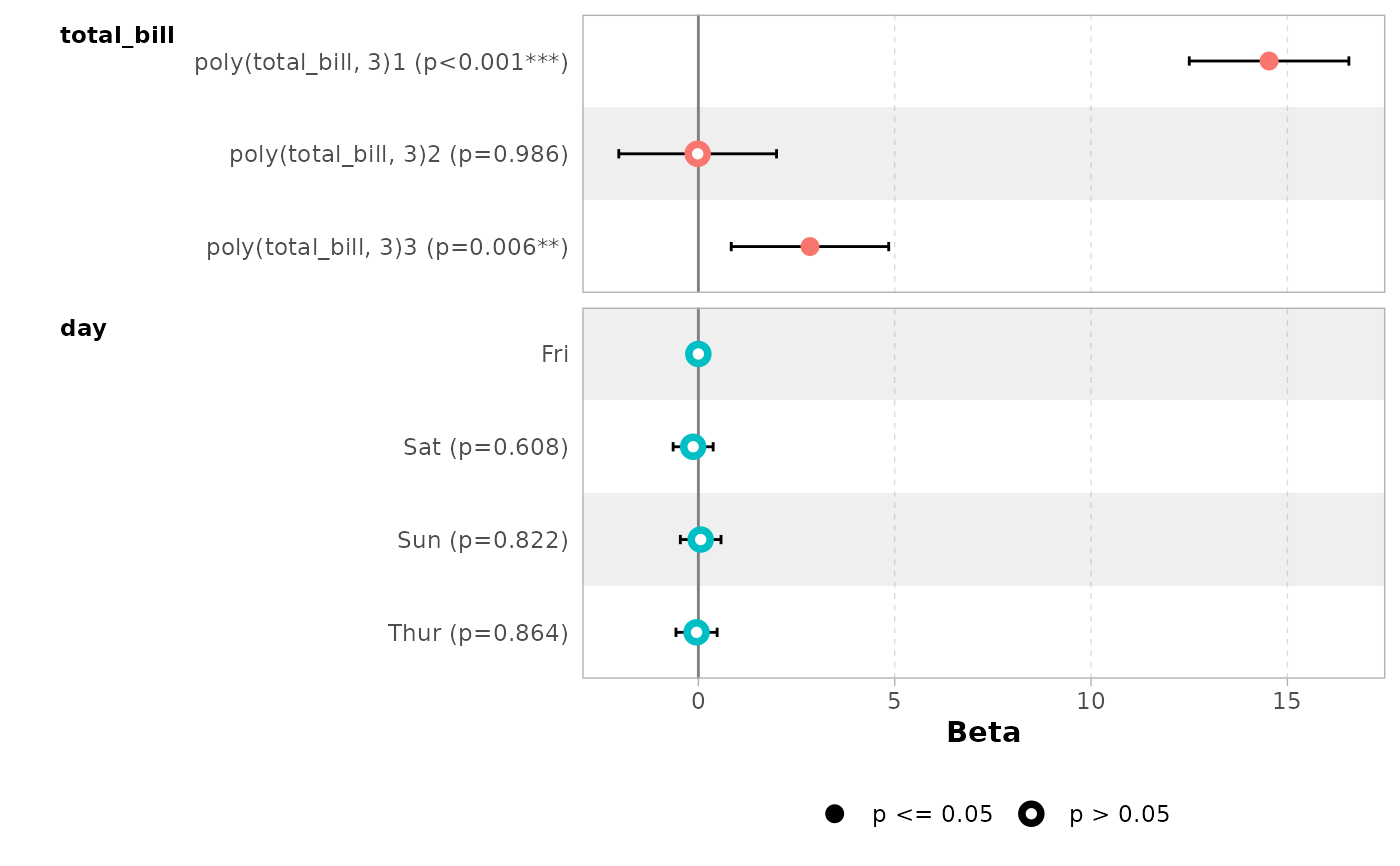

ggcoef_model(mod_poly)


# or with different type of contrasts
# for sum contrasts, the value of the reference term is computed
if (requireNamespace("emmeans")) {
  mod2 <- lm(
    tip ~ day + time + sex,
    data = tips,
    contrasts = list(time = contr.sum, day = contr.treatment(4, base = 3))
  )

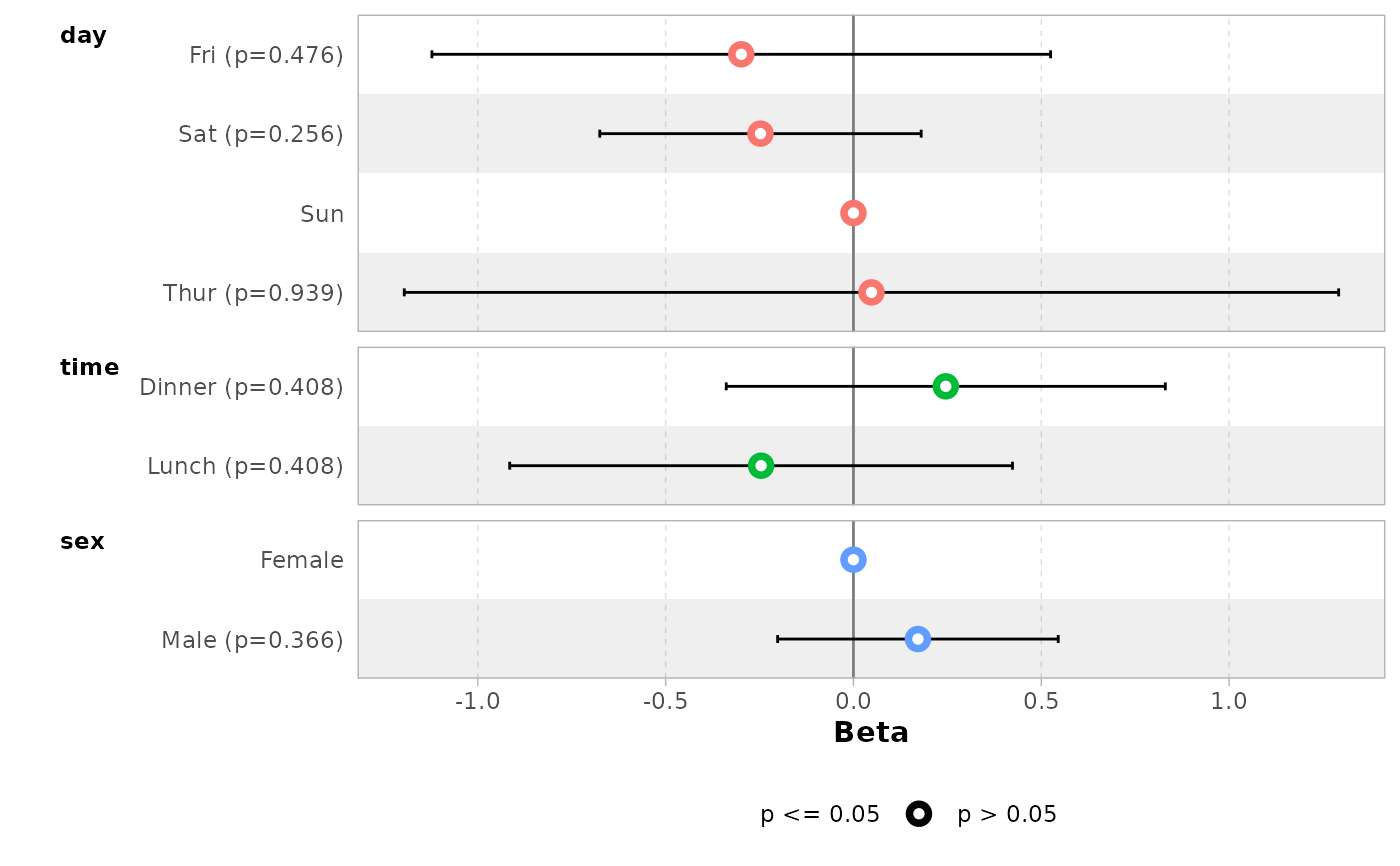

  ggcoef_model(mod2)
}
#> Loading required namespace: emmeans

# }

# \donttest{
# multinomial model
mod <- nnet::multinom(grade ~ stage + trt + age, data = gtsummary::trial)
#> # weights:  21 (12 variable)
#> initial  value 207.637723
#> iter  10 value 203.929391
#> final  value 203.897399
#> converged

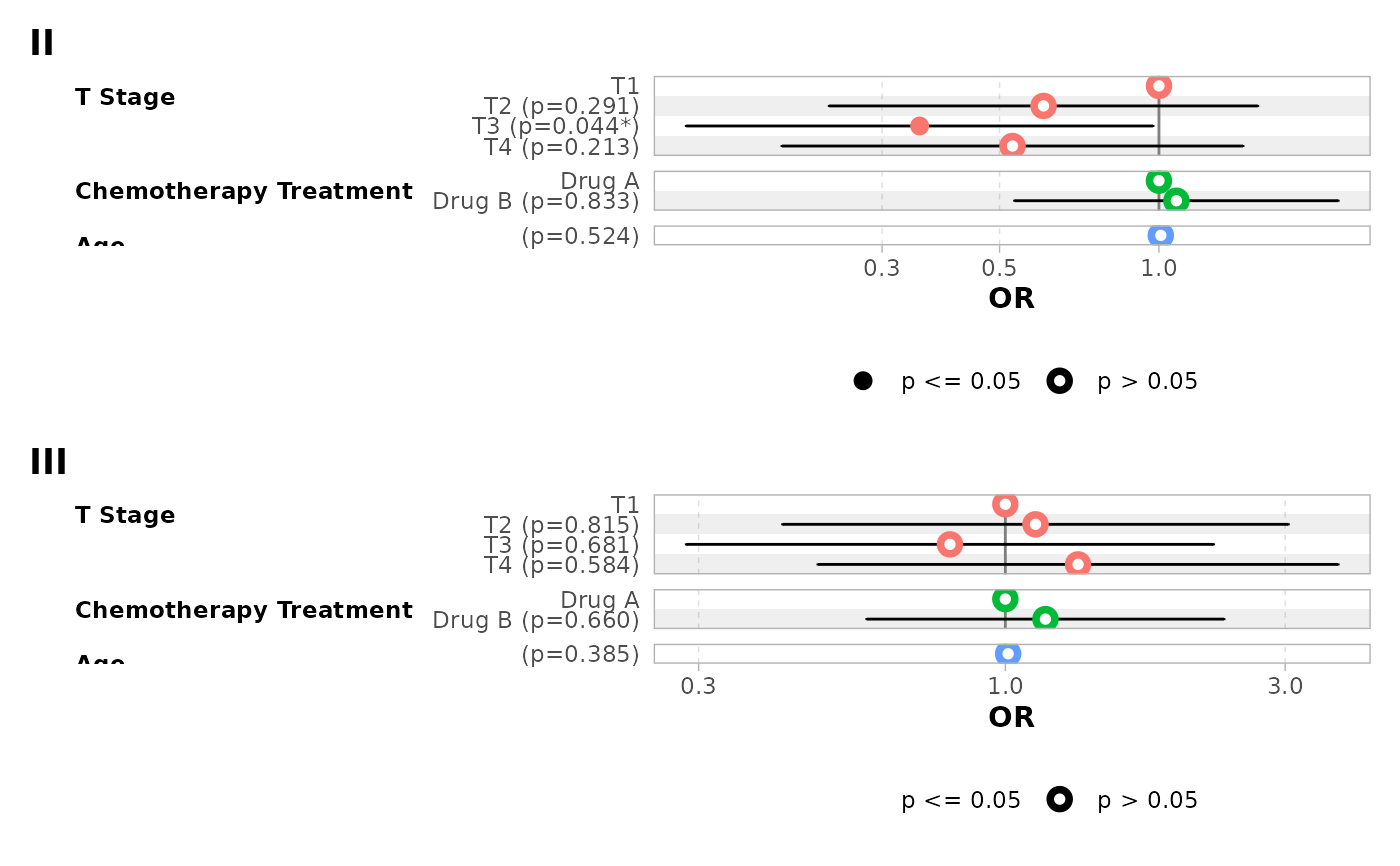

ggcoef_model(mod, exponentiate = TRUE)

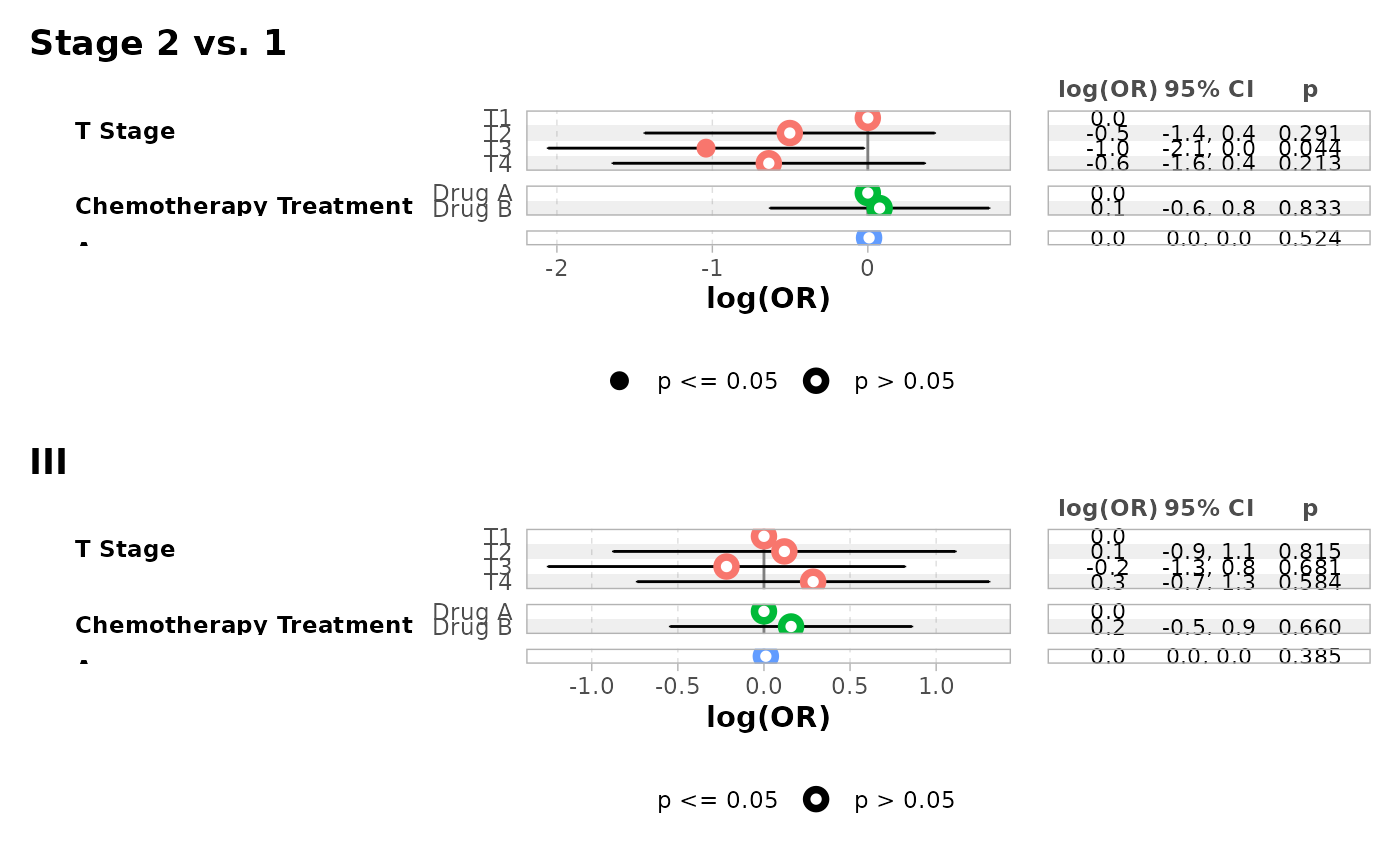

ggcoef_table(mod, group_labels = c(II = "Stage 2 vs. 1"))

ggcoef_dodged(mod, exponentiate = TRUE)

ggcoef_faceted(mod, exponentiate = TRUE)

# }
# \donttest{
library(pscl)
#> Classes and Methods for R originally developed in the
#> Political Science Computational Laboratory
#> Department of Political Science
#> Stanford University (2002-2015),
#> by and under the direction of Simon Jackman.
#> hurdle and zeroinfl functions by Achim Zeileis.
data("bioChemists", package = "pscl")
mod <- zeroinfl(art ~ fem * mar | fem + mar, data = bioChemists)

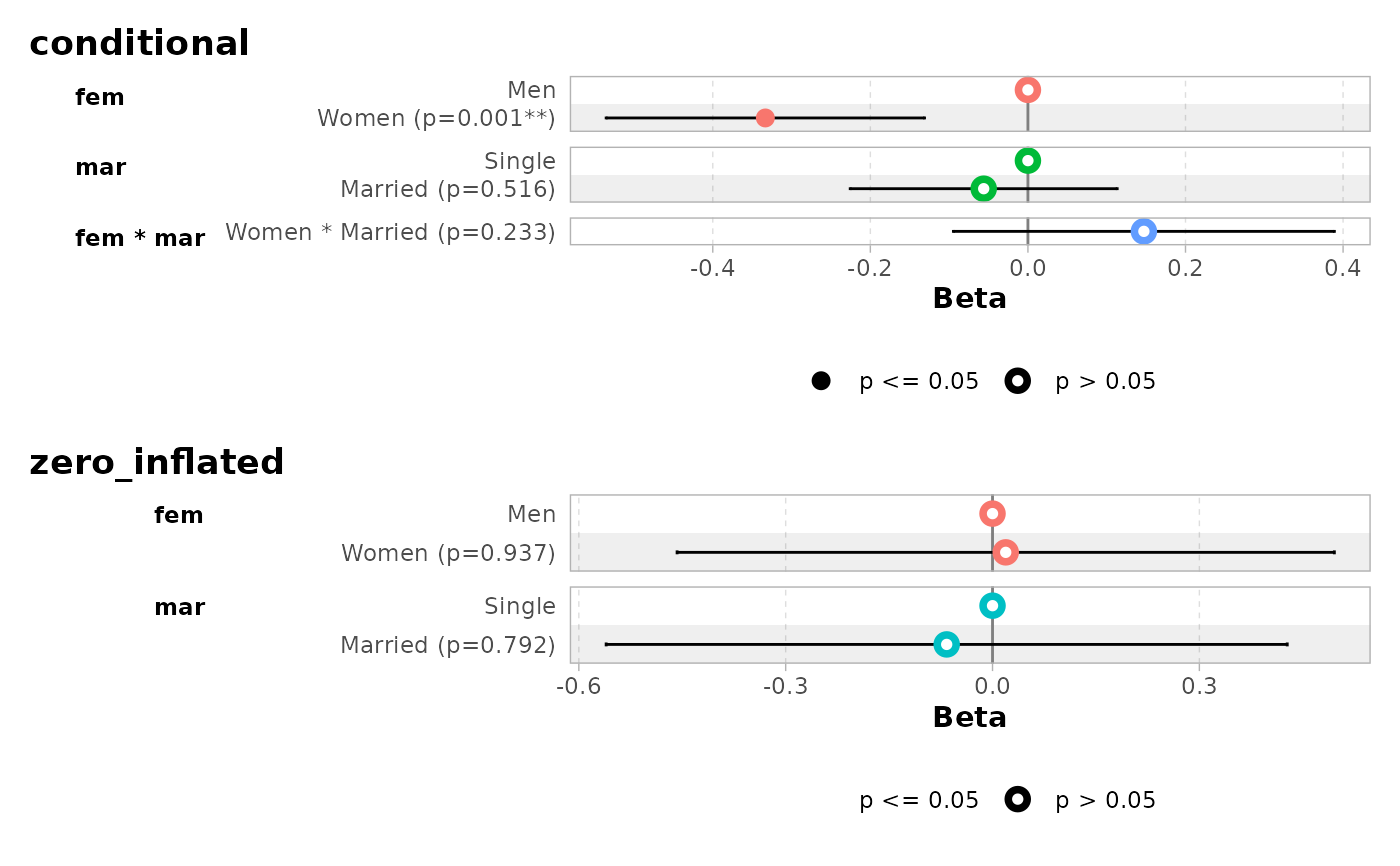

ggcoef_model(mod)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.

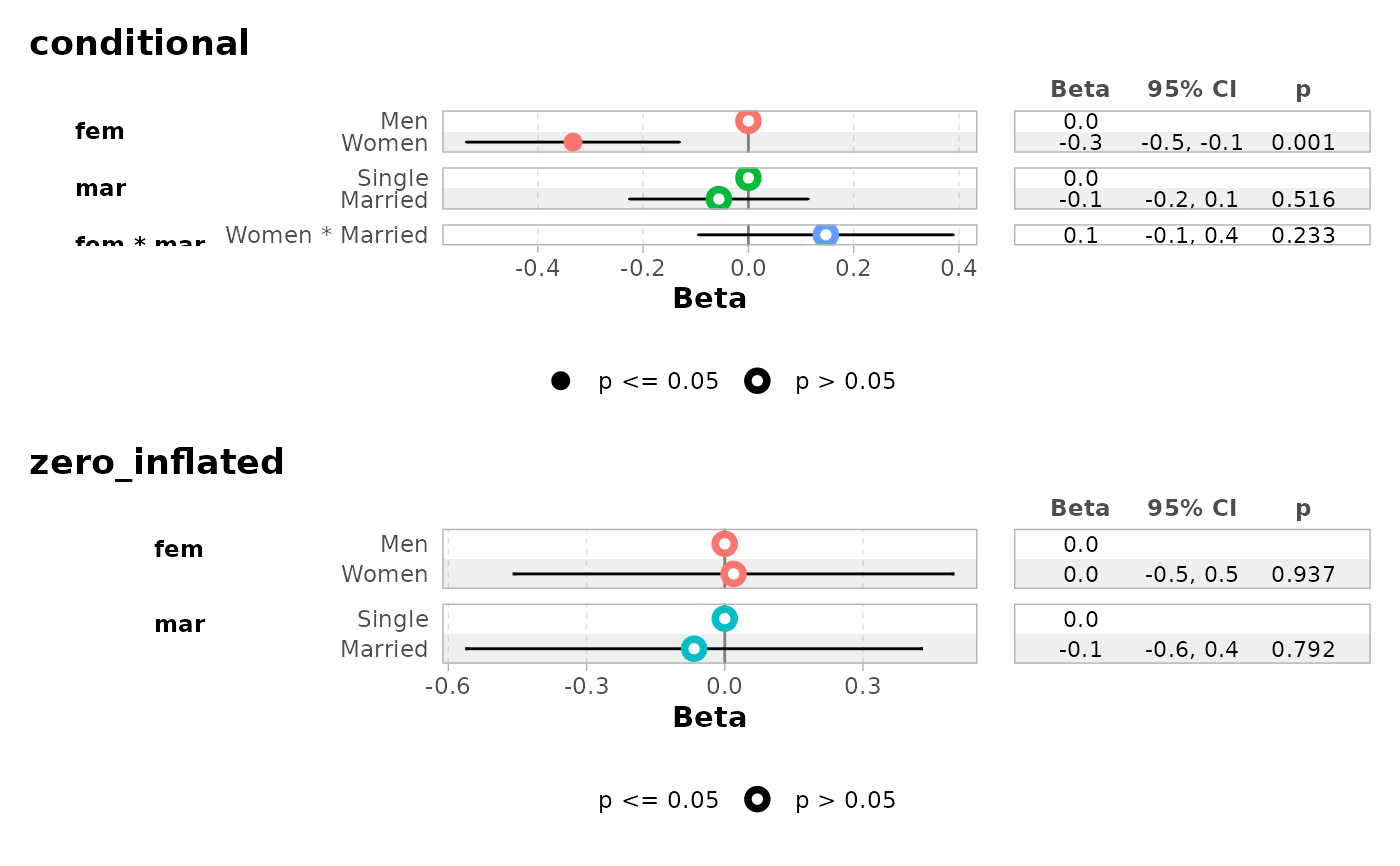

ggcoef_table(mod)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.

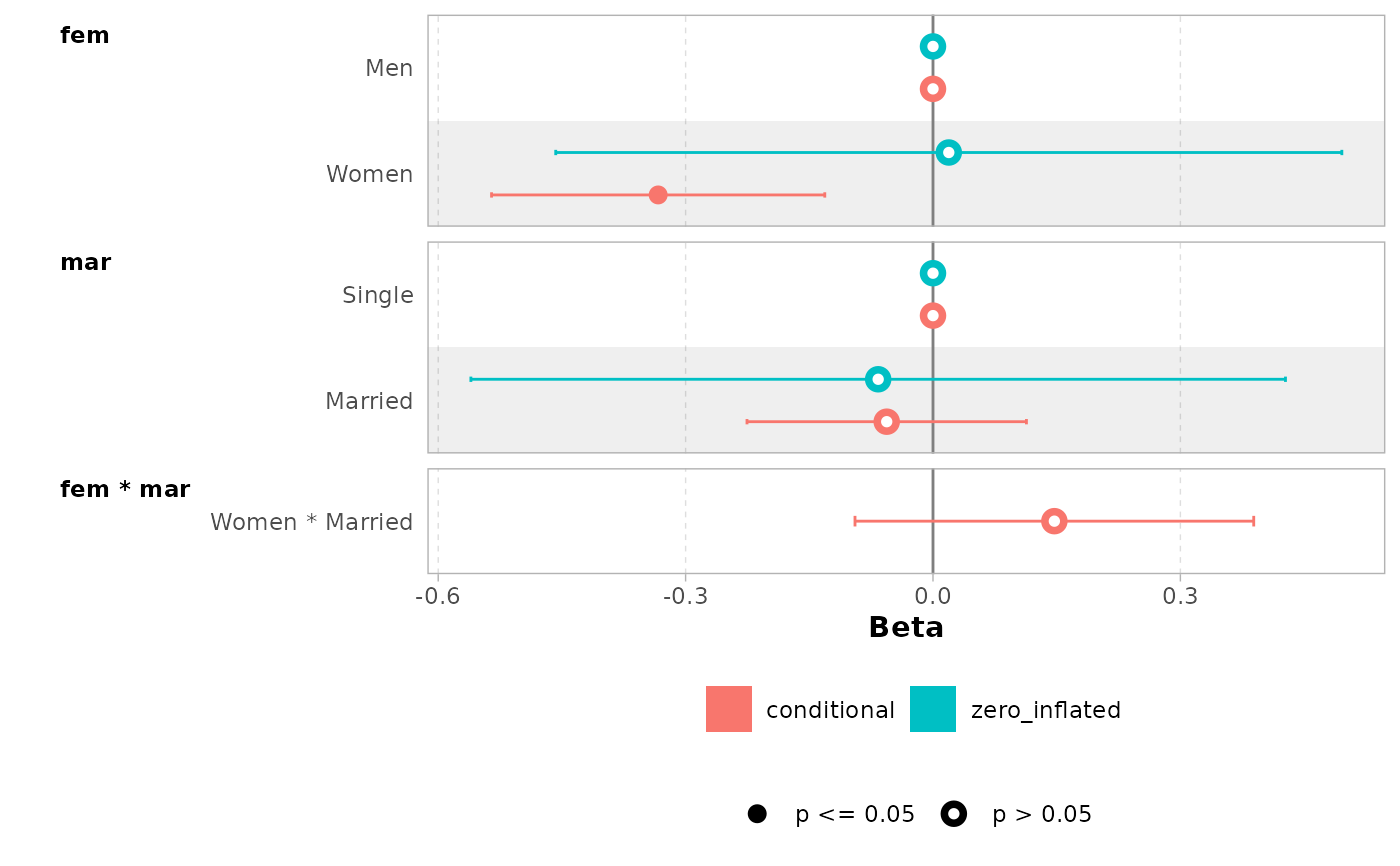

ggcoef_dodged(mod)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.

ggcoef_faceted(
  mod,
  group_labels = c(conditional = "Count", zero_inflated = "Zero-inflated")
)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.


mod2 <- zeroinfl(art ~ fem + mar | 1, data = bioChemists)
ggcoef_table(mod2)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.

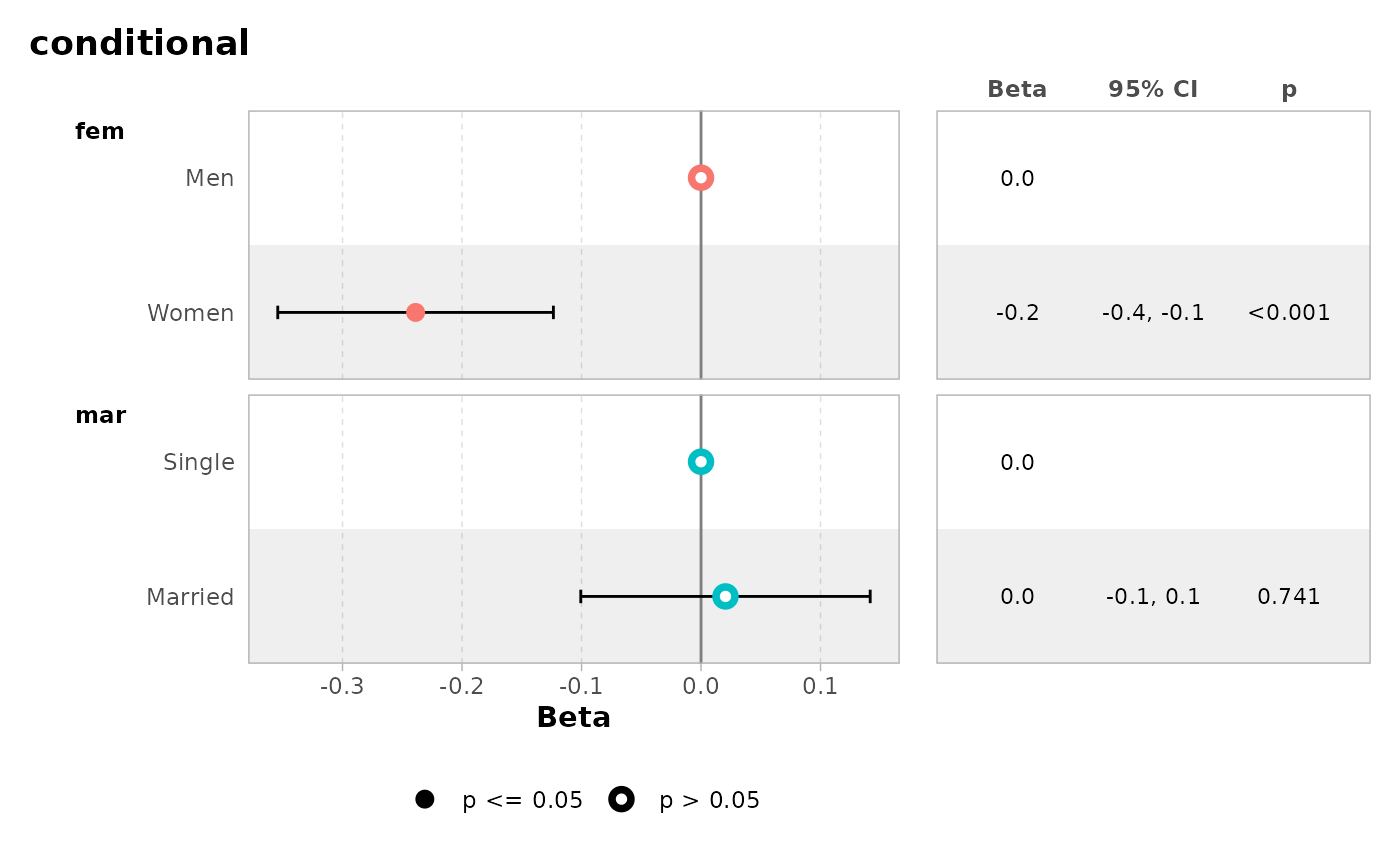

ggcoef_table(mod2, intercept = TRUE)
#> ℹ <zeroinfl> model detected.
#> ✔ `tidy_zeroinfl()` used instead.
#> ℹ Add `tidy_fun = broom.helpers::tidy_zeroinfl` to quiet these messages.

# }
# \donttest{
# Use ggcoef_compare() for comparing several models on the same plot
mod1 <- lm(Fertility ~ ., data = swiss)
mod2 <- step(mod1, trace = 0)
mod3 <- lm(Fertility ~ Agriculture + Education * Catholic, data = swiss)
models <- list(
  "Full model" = mod1,
  "Simplified model" = mod2,
  "With interaction" = mod3
)

ggcoef_compare(models)

ggcoef_compare(models, type = "faceted")


# you can reverse the vertical position of the point by using a negative
# value for dodged_width (but it will produce some warnings)
ggcoef_compare(models, dodged_width = -.9)
#> Warning: `position_dodge()` requires non-overlapping x intervals.
#> Warning: `position_dodge()` requires non-overlapping x intervals.
#> Warning: `position_dodge()` requires non-overlapping x intervals.
#> Warning: `position_dodge()` requires non-overlapping x intervals.
#> Warning: `position_dodge()` requires non-overlapping x intervals.
#> Warning: `position_dodge()` requires non-overlapping x intervals.

# }
