Multiplots

library(mrgmisc) # for binning and other functions
library(ggplot2) #plotting
library(purrr) # dataset to handle lists
suppressMessages(suppressWarnings(library(dplyr)))

dat <- sd_oral_richpk %>% filter(ID <= 20)

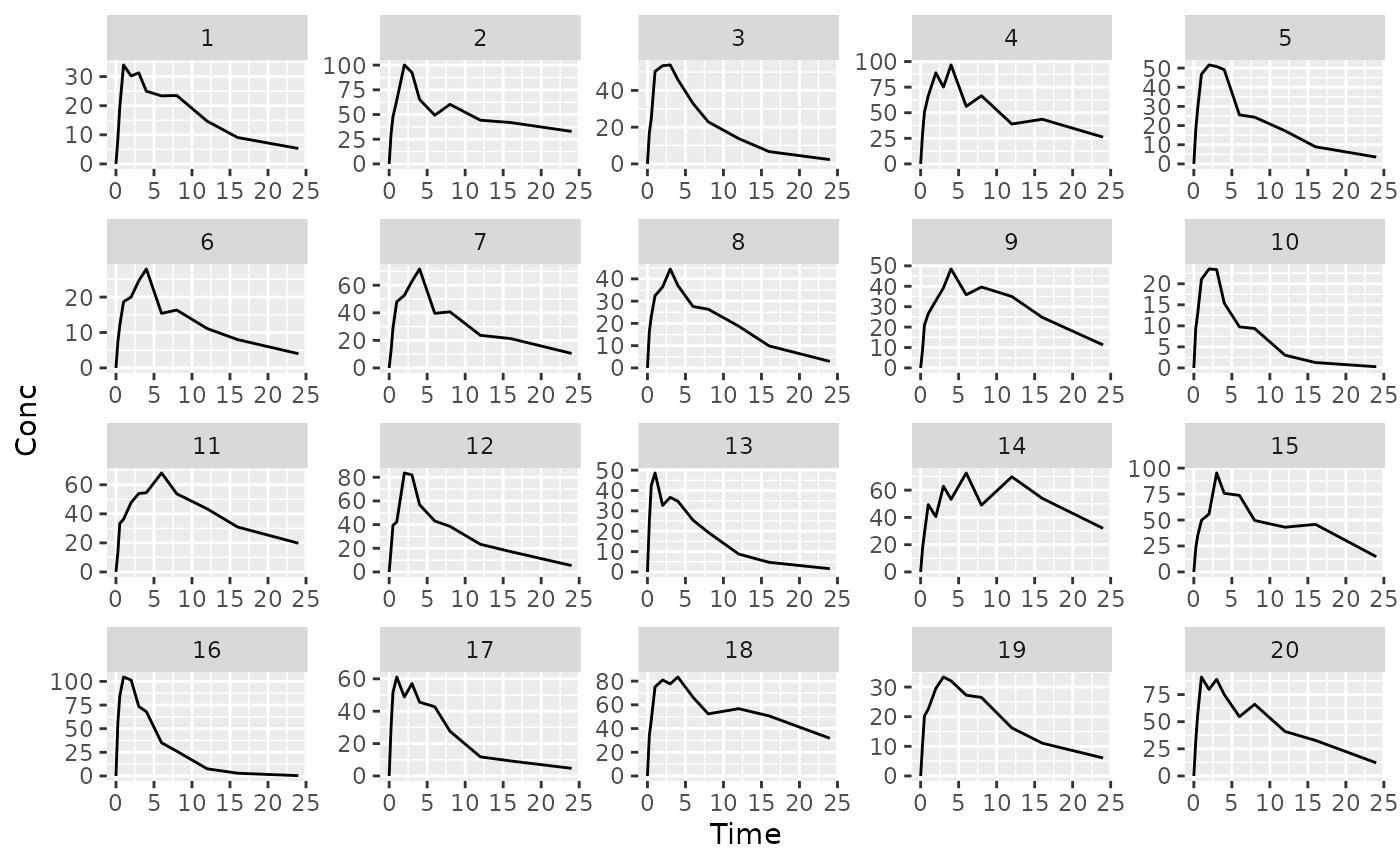

Messy plot can’t see individuals well

ggplot(dat, aes(x = Time, y = Conc, group= ID)) +
  geom_line() +
  facet_wrap(~ID, scales= "free")

What we’d like to be able to do is split up into ‘bins’ of specified numbers of individuals to then plot out multiple plots

# this will automatically create a column of bins such that the
# specified number of individuals is in each bin, in this case
# 9 ids per bin
# split the original dataset into subdatasets corresponding to each bin (list of dataframes)
split_dat <- dat %>%
  mutate(PLOTS = ids_per_plot(ID, 4)) %>% # default is 9 per subplot
  split(.[["PLOTS"]])

To handle plotting each subdataframe, you need to wrap your normal ggplot into a function. You will then apply this function with map to each subdataframe. So in this case it is just like a normal plot, but wrapped up in a function, which takes 1 argument (the dataframe) and outputs the plot

p_conc_time <- function(df) {
ggplot(df, aes(x = Time, y = Conc, group= ID)) +
  geom_line() +
  facet_wrap(~ID, scales= "free")
}

To apply the above function we use map from purrr

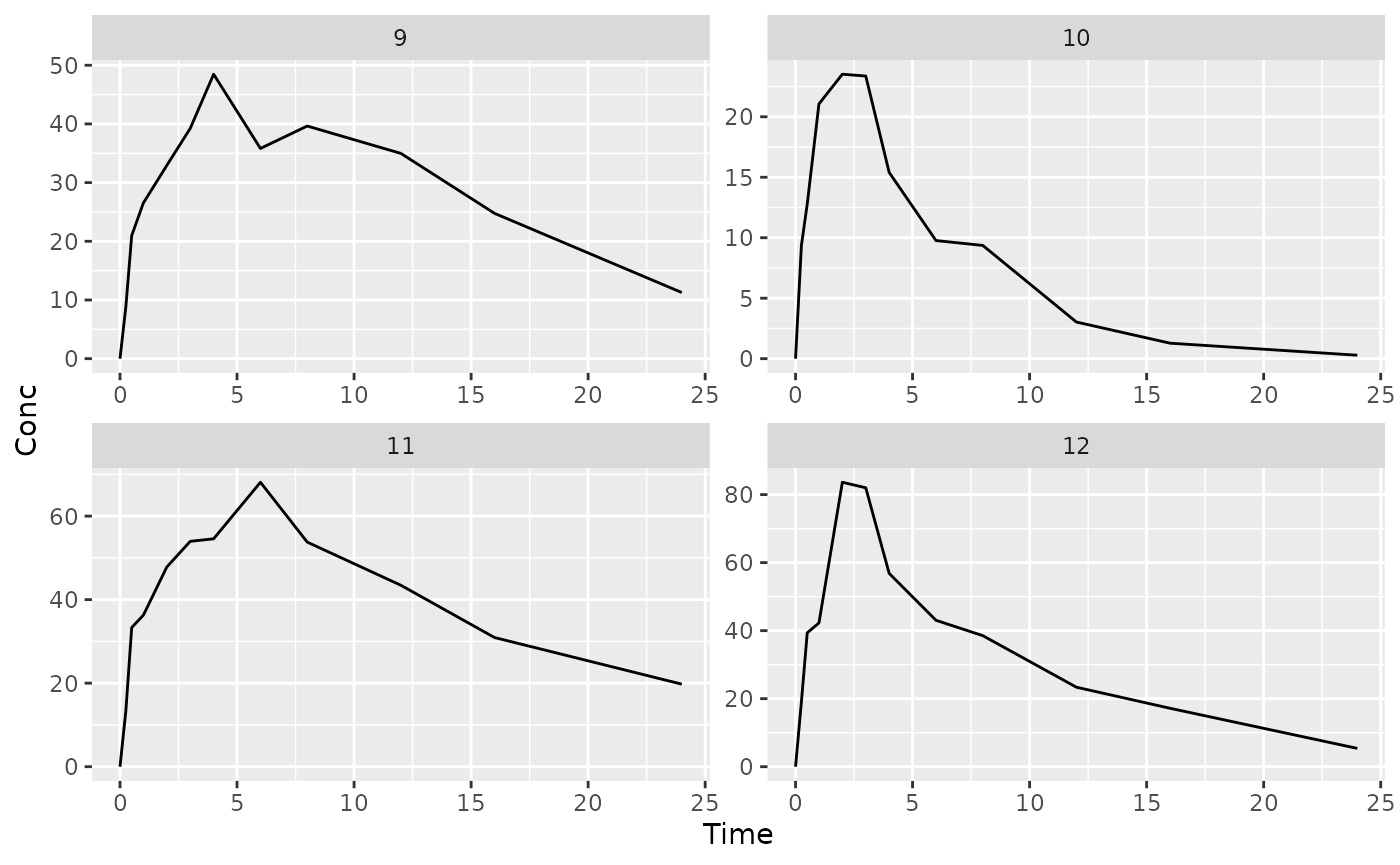

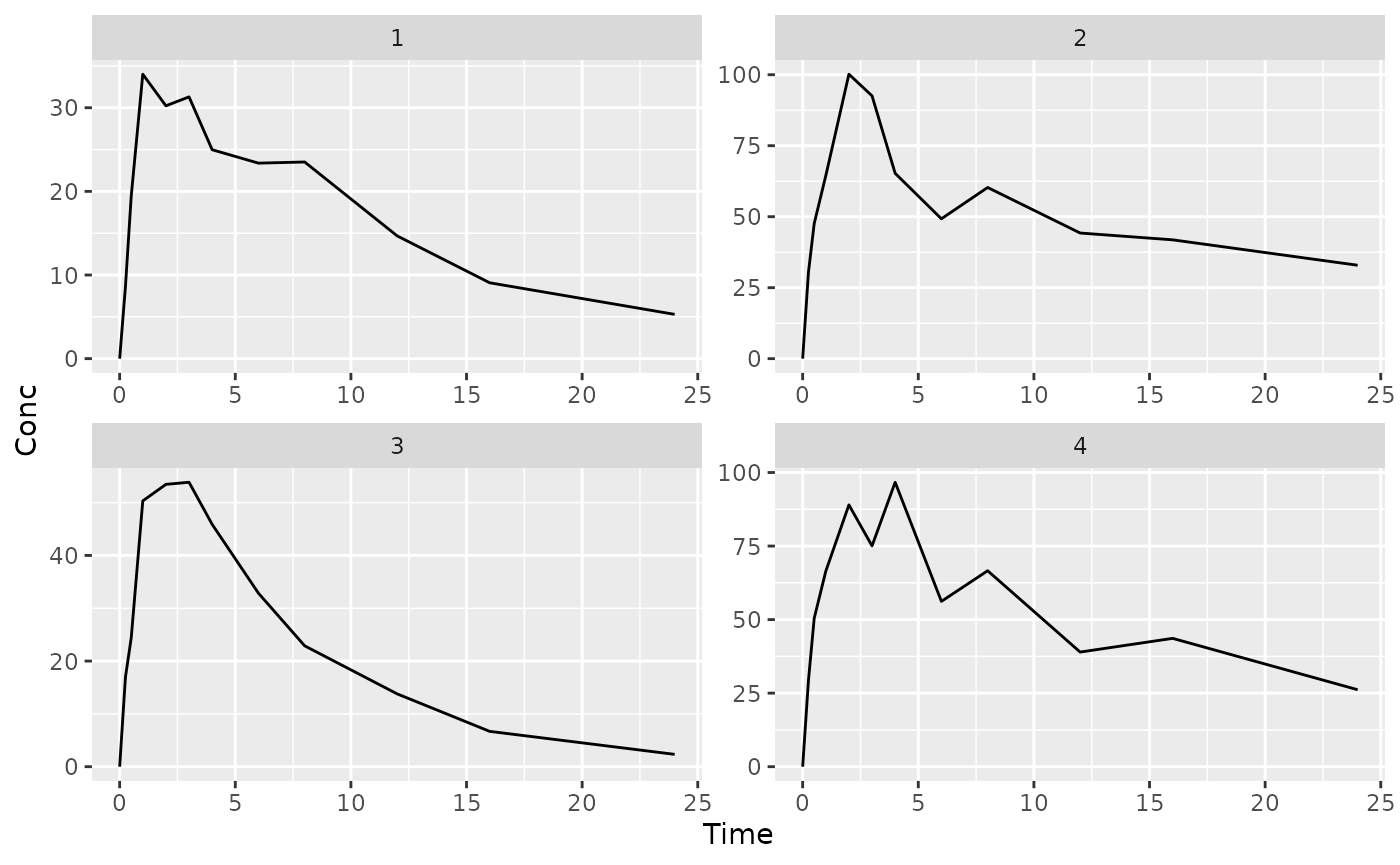

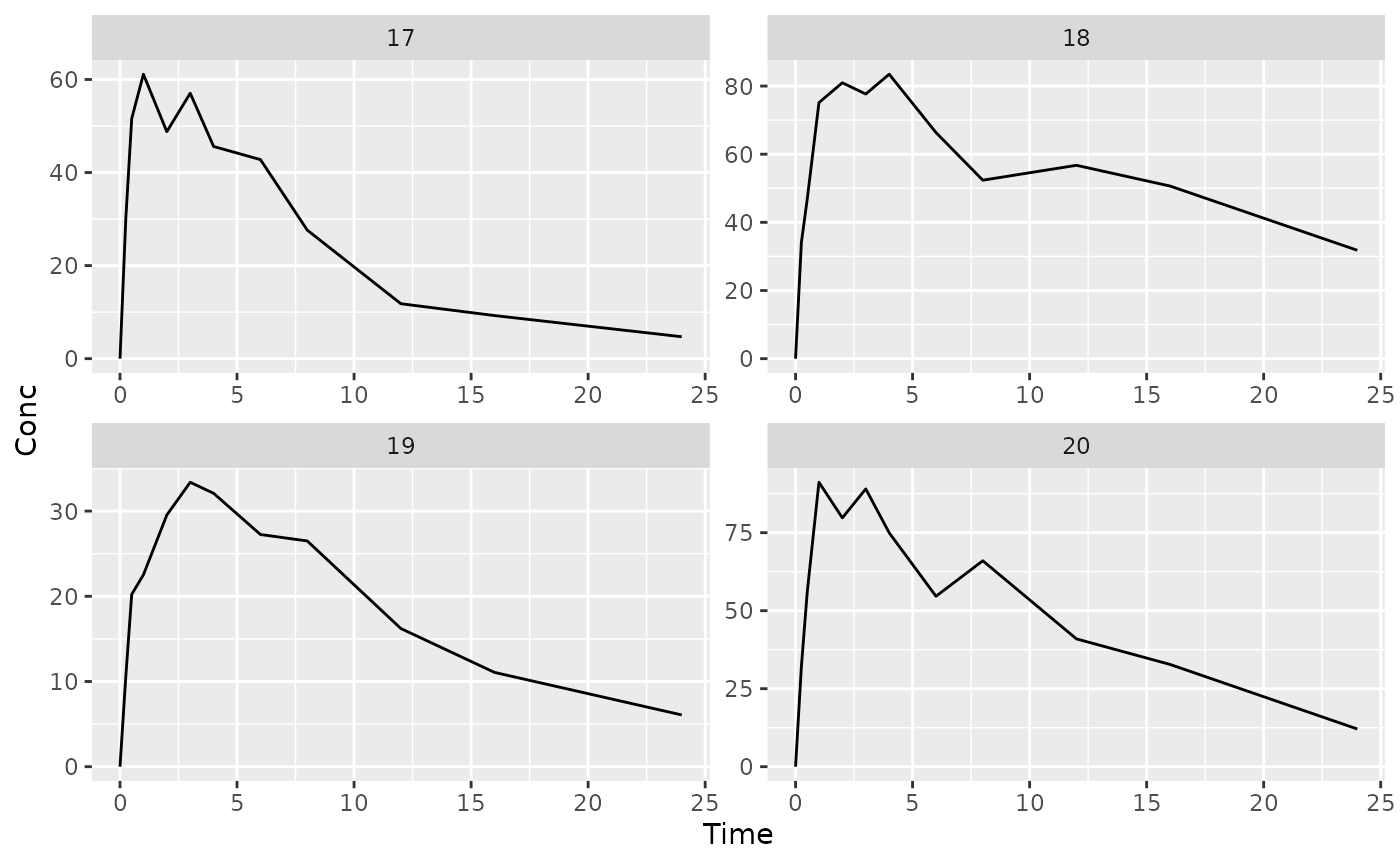

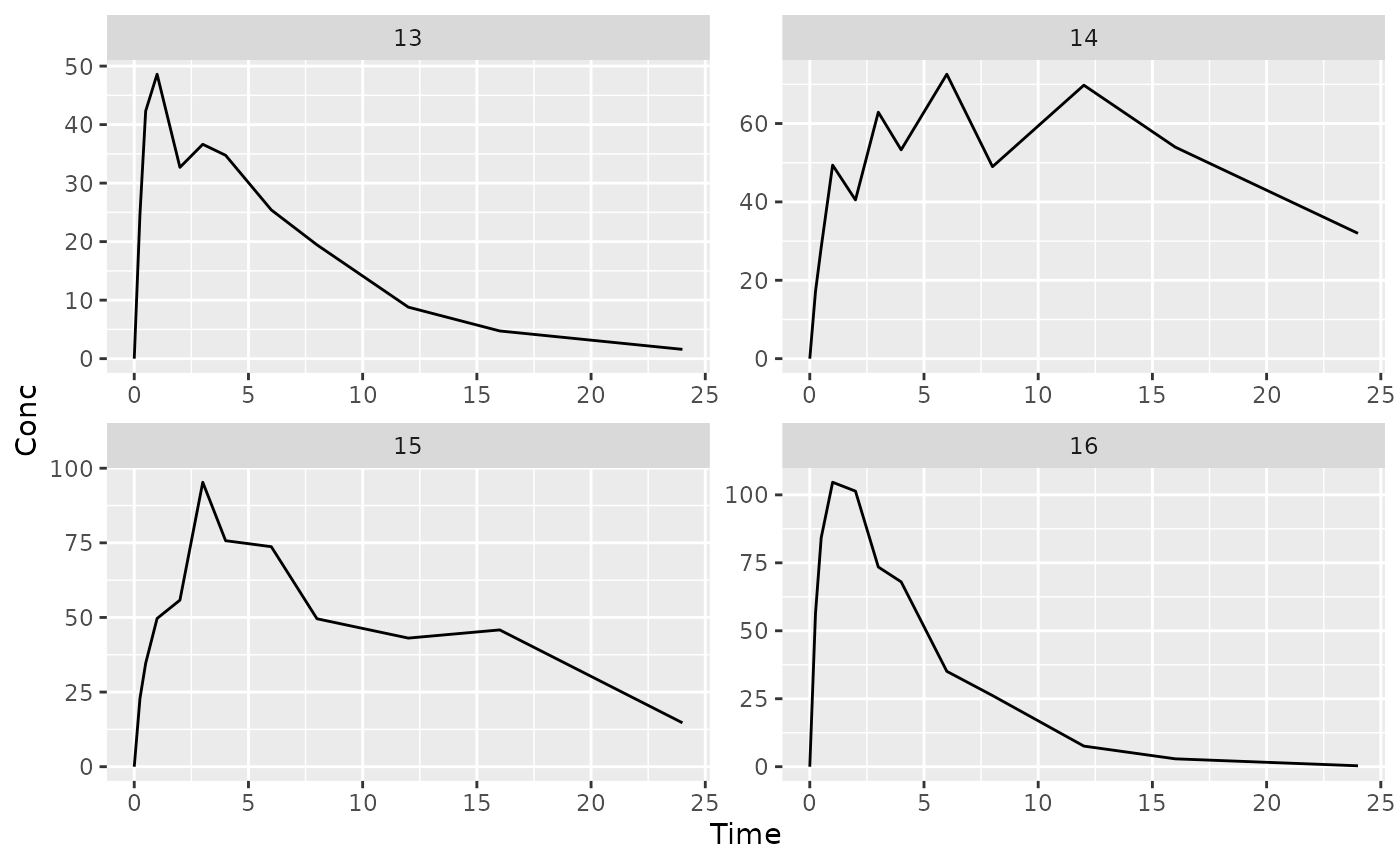

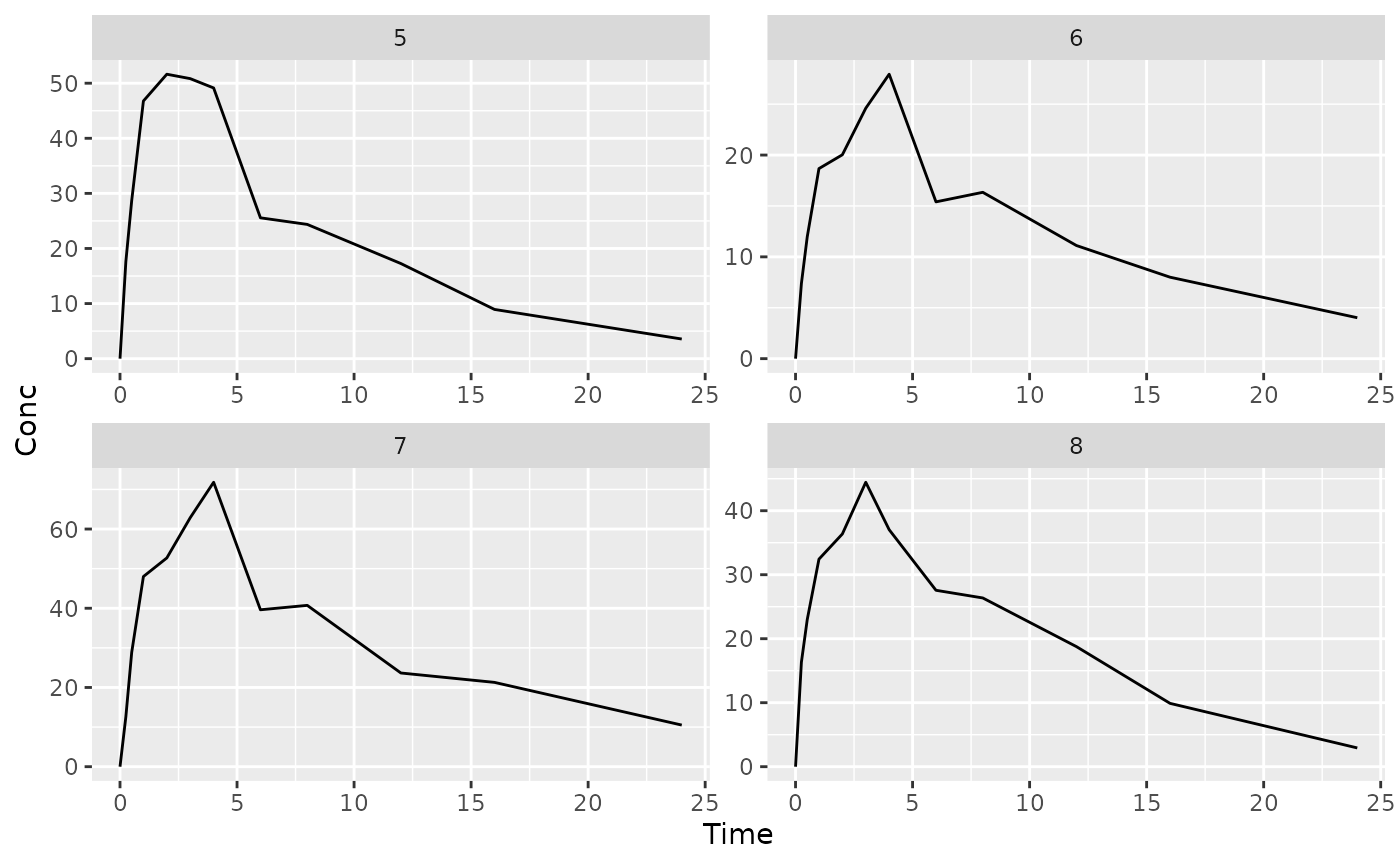

split_dat %>% map(p_conc_time)

## $`1`

##
## $`2`

##
## $`3`

##
## $`4`

##
## $`5`

sessioninfo::session_info()

## ─ Session info ───────────────────────────────────────────────────────────────
##  setting  value
##  version  R version 4.6.1 (2026-06-24)
##  os       Ubuntu 24.04.4 LTS
##  system   x86_64, linux-gnu
##  ui       X11
##  language en
##  collate  C.UTF-8
##  ctype    C.UTF-8
##  tz       UTC
##  date     2026-08-28
##  pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
##  quarto   1.10.18 @ /usr/local/bin/quarto
##
## ─ Packages ───────────────────────────────────────────────────────────────────
##  package      * version date (UTC) lib source
##  bslib          0.12.0  2026-08-04 [2] prism (R 4.6.1)
##  cachem         1.1.0   2024-05-16 [2] PRISM (R 4.6.0)
##  cli            3.6.6   2026-04-09 [2] PRISM (R 4.6.0)
##  desc           1.4.3   2023-12-10 [2] PRISM (R 4.6.0)
##  digest         0.6.39  2025-11-19 [2] PRISM (R 4.6.0)
##  dplyr        * 1.2.1   2026-04-03 [2] PRISM (R 4.6.0)
##  evaluate       1.0.5   2025-08-27 [2] PRISM (R 4.6.0)
##  farver         2.1.2   2024-05-13 [2] PRISM (R 4.6.0)
##  fastmap        1.2.0   2024-05-15 [2] PRISM (R 4.6.0)
##  fs             2.1.0   2026-04-18 [2] prism (R 4.6.0)
##  generics       0.1.4   2025-05-09 [2] PRISM (R 4.6.0)
##  ggplot2      * 4.0.3   2026-04-22 [2] prism (R 4.6.0)
##  glue           1.8.1   2026-04-17 [2] prism (R 4.6.0)
##  gtable         0.3.6   2024-10-25 [2] PRISM (R 4.6.0)
##  htmltools      0.5.9   2025-12-04 [2] PRISM (R 4.6.0)
##  htmlwidgets    1.6.4   2023-12-06 [2] PRISM (R 4.6.0)
##  jquerylib      0.1.4   2021-04-26 [2] PRISM (R 4.6.0)
##  jsonlite       2.0.0   2025-03-27 [2] PRISM (R 4.6.0)
##  knitr          1.51    2025-12-20 [2] PRISM (R 4.6.0)
##  labeling       0.4.3   2023-08-29 [2] PRISM (R 4.6.0)
##  lifecycle      1.0.5   2026-01-08 [2] PRISM (R 4.6.0)
##  magrittr       2.0.5   2026-04-04 [2] PRISM (R 4.6.0)
##  mrgmisc      * 0.4.0   2026-08-28 [1] local
##  otel           0.2.0   2025-08-29 [2] PRISM (R 4.6.0)
##  pillar         1.11.1  2025-09-17 [2] PRISM (R 4.6.0)
##  pkgconfig      2.0.3   2019-09-22 [2] PRISM (R 4.6.0)
##  pkgdown        2.2.1   2026-07-07 [2] prism (R 4.6.1)
##  purrr        * 1.2.2   2026-04-10 [2] PRISM (R 4.6.0)
##  R6             2.6.1   2025-02-15 [2] PRISM (R 4.6.0)
##  ragg           1.5.2   2026-03-23 [2] PRISM (R 4.6.0)
##  RColorBrewer   1.1-3   2022-04-03 [2] PRISM (R 4.6.0)
##  Rcpp           1.1.2   2026-07-05 [2] prism (R 4.6.1)
##  rlang          1.3.0   2026-07-05 [2] prism (R 4.6.1)
##  rmarkdown      2.31    2026-03-26 [2] PRISM (R 4.6.0)
##  S7             0.2.2   2026-04-22 [2] prism (R 4.6.0)
##  sass           0.4.10  2025-04-11 [2] PRISM (R 4.6.0)
##  scales         1.4.0   2025-04-24 [2] PRISM (R 4.6.0)
##  sessioninfo    1.2.4   2026-06-04 [2] prism (R 4.6.0)
##  systemfonts    1.3.2   2026-03-05 [2] PRISM (R 4.6.0)
##  textshaping    1.0.5   2026-03-06 [2] PRISM (R 4.6.0)
##  tibble         3.3.1   2026-01-11 [2] PRISM (R 4.6.0)
##  tidyselect     1.2.1   2024-03-11 [2] PRISM (R 4.6.0)
##  vctrs          0.7.3   2026-04-11 [2] PRISM (R 4.6.0)
##  withr          3.0.3   2026-06-19 [2] prism (R 4.6.1)
##  xfun           0.60    2026-07-09 [2] prism (R 4.6.1)
##  yaml           2.3.12  2025-12-10 [2] PRISM (R 4.6.0)
##
##  [1] /tmp/RtmpGsTunx/temp_libpathf9ea51061586
##  [2] /tmp/.tmpZLIpOK/docs/library
##  [3] /opt/R/4.6.1/lib/R/library
##  * ── Packages attached to the search path.
##
## ──────────────────────────────────────────────────────────────────────────────

Devin Pastoor

2026-08-28
