Visualise underlying gtable layout. — gtable_show

Visualises the table structure or the names of the gtable's components.

gtable_show_grill(x, plot = TRUE)

gtable_show_names(
  x,
  plot = TRUE,
  rect.gp = grid::gpar(col = "black", fill = "white", alpha = 1/4)
)

Arguments

x: A gtable object. If given a ggplot object, it is converted to a gtable object with ggplotGrob.
plot: Logical. When TRUE (default), draws resulting gtable object on a new page.
rect.gp: Graphical parameters (gpar) for background drop.

Value

Modified gtable object, invisibly.

Details

These functions are highly similar to gtable_show_layout. gtable_show_grill draws the grid of the underlying table, and places row and column indicies in the margin. gtable_show_names replaces the grobs with a semi-transparent rectangle and the component's name.

Examples

library(ggplot2)
library(gtable)
library(grid)

p <- ggplot(mtcars, aes(wt, mpg)) + geom_point()

gtable_show_grill(p)

library(ggplot2)
library(gtable)
library(grid)

p <- ggplot(mtcars, aes(wt, mpg)) + geom_point()

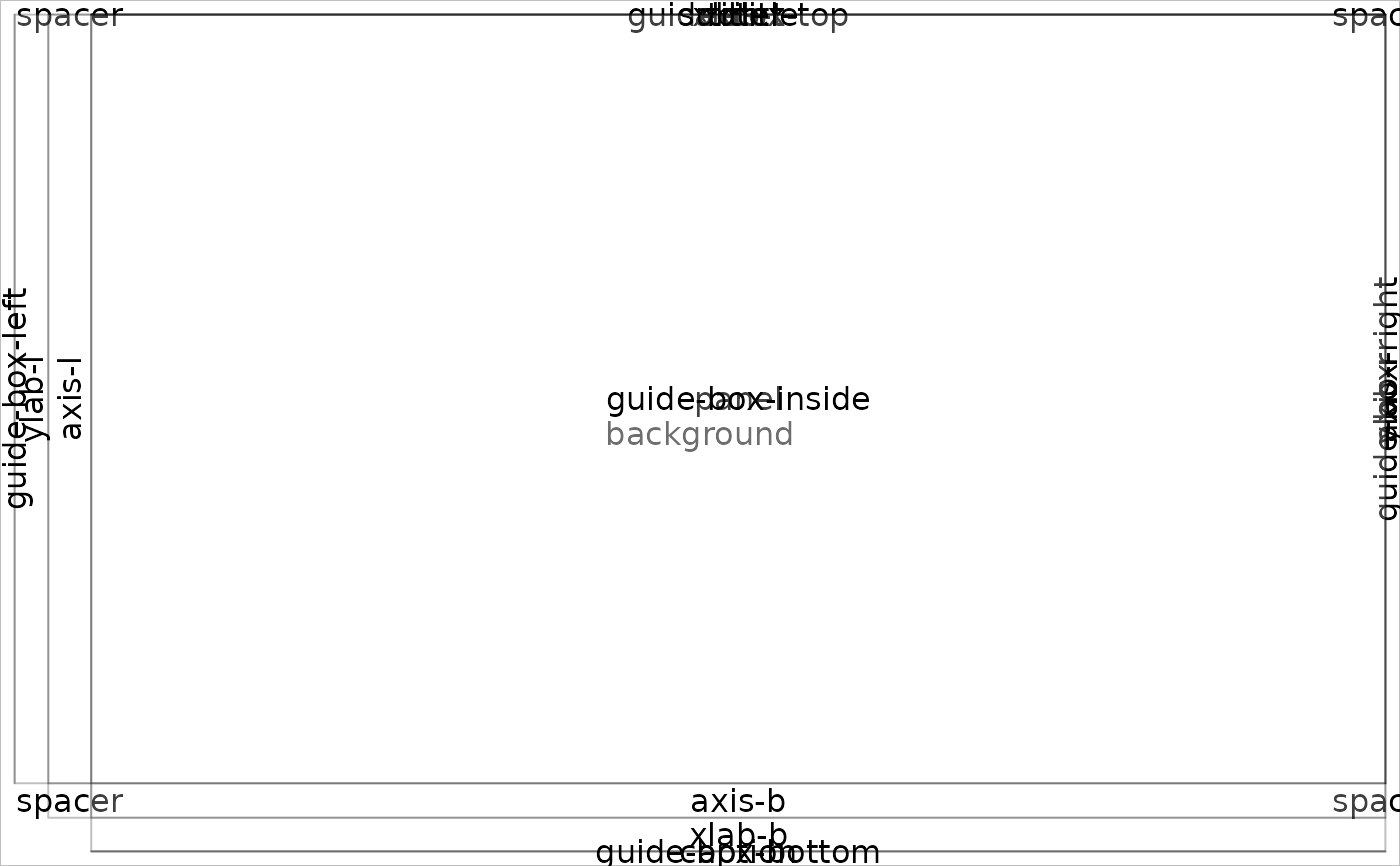

gtable_show_names(p)
