Break aesthetic labels across two lines

Source: R/pm-gg-labs.R
pm_gg_break.Rd

Inserts a single line break into one or more existing plot labels. By default (names_from = "variable"), names in ... refer to data variables mapped to aesthetics; the function locates the corresponding aesthetics and breaks their labels. With names_from = "aes", names refer directly to aesthetic names (x, y, colour, etc.). pm_gg_break_aes() is a shorthand for pm_gg_break(..., names_from = "aes").

Usage

pm_gg_break(..., names_from = c("variable", "aes"))

pm_gg_break_aes(...)

Arguments

...

name = value pairs. When names_from = "variable" (the default), names are data variable names mapped to aesthetics in the plot; when names_from = "aes", names are aesthetic names such as x, y, or colour. In both cases, values are the character width passed as width to str_break(): the label is broken at the last word boundary at or before that width.

names_from

whether names in ... identify data variable names ("variable", the default) or aesthetic names ("aes").

Value

A gg object that can be added to a ggplot with +. Works with & when applied to a patchwork layout.

Functions

  • pm_gg_break_aes(): Shorthand for pm_gg_break(..., names_from = "aes"); names in ... are aesthetic names (x, y, colour, etc.) rather than data variable names.

See also

pm_gg_labs(), pm_relabel()

Examples

data <- pmplots_data_obs()

p <- dv_pred(data) +
  ggplot2::labs(
    x = "Population predicted concentration (ng/mL)",
    y = "Observed concentration (ng/mL)"
  )

# Break by variable name (default)

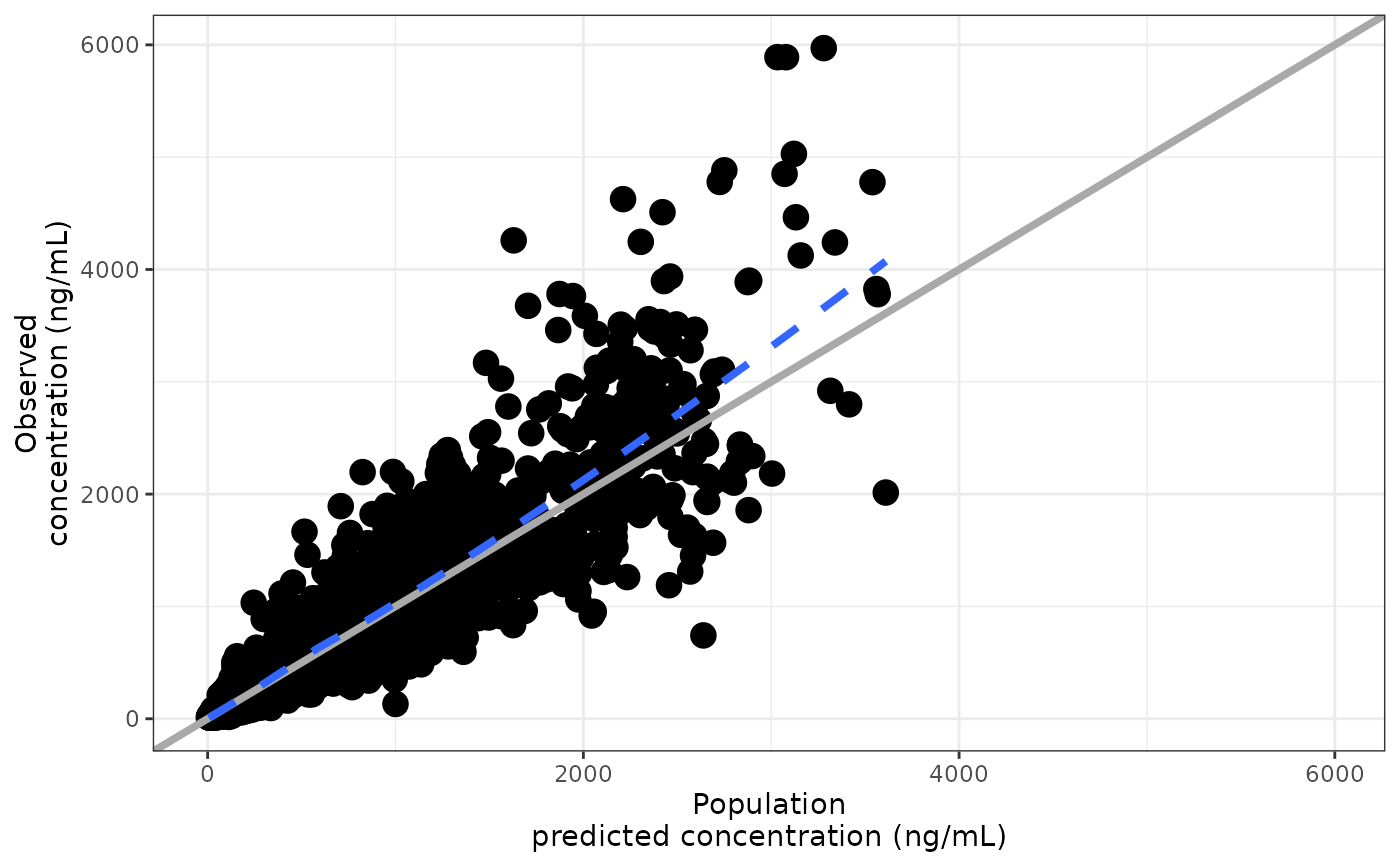

p + pm_gg_break(PRED = 20, DV = 20)
#> `geom_smooth()` using formula = 'y ~ x'
#> `geom_smooth()` using formula = 'y ~ x'


# Equivalent using aesthetic names directly
p + pm_gg_break_aes(x = 20, y = 20)
#> `geom_smooth()` using formula = 'y ~ x'
#> `geom_smooth()` using formula = 'y ~ x'
