VPC Plot Aesthetics

This vignette will review the functionality for updating aesthetic elements of VPC plots generated using vpc() with the new_vpc_theme() function from the vpc package.

plot_legend() is a helper plotting function that creates a legend for plots generated using vpc(). These legends can then be merged with the VPC plot into a single plot object using the patchwork package.

Let’s get started. First, we will load the required packages.

options(scipen = 999, rmarkdown.html_vignette.check_title = FALSE)
library(pmxhelpr)
library(dplyr, warn.conflicts =  FALSE)
library(ggplot2, warn.conflicts =  FALSE)
library(vpc, warn.conflicts =  FALSE)
library(mrgsolve, warn.conflicts =  FALSE)
library(withr, warn.conflicts =  FALSE)
library(patchwork, warn.conflicts = FALSE)

Next, let’s load use the internal data and model objects from pmxhelpr and df_mrgsim_replicate to run the simulation.

data <- data_sad
model <- model_mread_load("model")
#> Building model_cpp ... done.

simout <- df_mrgsim_replicate(data = data, model = model,replicates = 100,
                     time_vars = c(TIME = "TIME", NTIME = "NTIME"),
                     output_vars = c(PRED = "PRED", IPRED = "IPRED", DV = "ODV"),
                     num_vars = c("CMT", "BLQ", "LLOQ", "EVID", "MDV", "DOSE", "FOOD"),
                     char_vars = c("PART"),
                     obsonly = TRUE)

Default Aesthetics

Now let’s plot all data together in a prediction-corrected VPC (pcVPC). There is only single dose administration in this dataset, thus we are able to pool across doses and food conditions with prediction-correction. We will set min_bin_count = 5 to avoid the simulated intervals extending to the final timepoint with only a single observation.

vpc_pc <- plot_vpc_exactbins(
  sim = simout,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  output_vars = c(PRED = "PRED", IPRED = "IPRED", SIMDV = "SIMDV", OBSDV = "OBSDV"),
  log_y = TRUE,
  xlab = "Time (hours)",
  ylab = "Concentration (ng/mL)",
  pcvpc = TRUE,
  min_bin_count = 5
) +
  scale_x_continuous(breaks = seq(0,168,24))
#> Joining with `by = join_by(CMT, NTIME)`
#> Joining with `by = join_by(CMT, NTIME)`
#> Scale for x is already present. Adding another scale for x, which will replace
#> the existing scale.

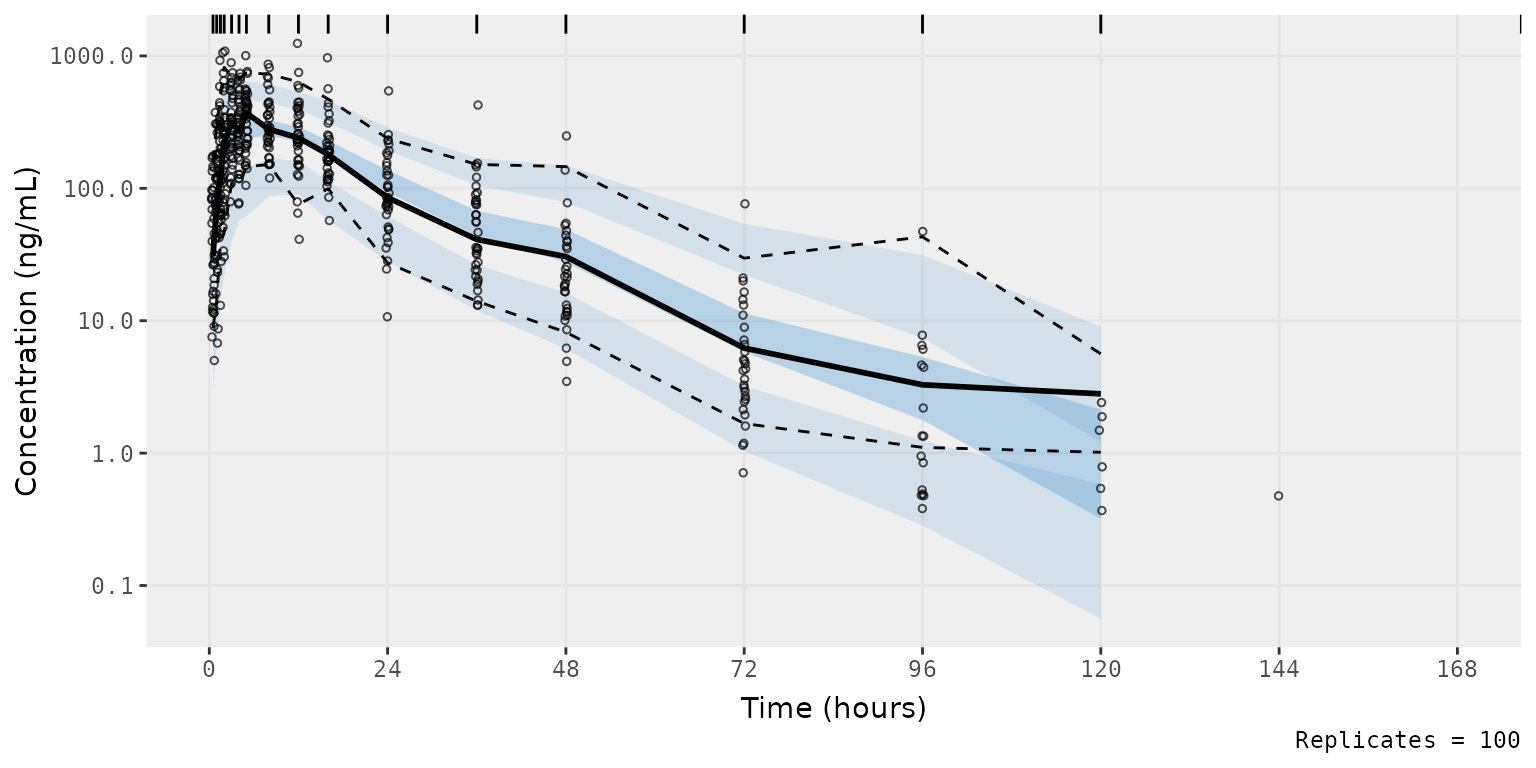

vpc_pc

The default elements shown in the plot are inherited from vpc(). The shown argument can be provided to plot_vpc_exactbins() and passed on to the show argument of vpc().

The default is as follows:

shown_list <- list(obs_dv = TRUE, obs_ci = TRUE,
                   pi = FALSE, pi_as_area = FALSE, pi_ci = TRUE,
                   obs_median = TRUE, sim_median =FALSE, sim_median_ci = TRUE)

The components of the list correspond to the following vpc plot elements: - Observed points: obs_dv = Observed quantiles: obs_ci - Simulated inter-quantile range: pi - Simulated inter-quantile area: pi_as_area - Simulated Quantile CI: pi_ci - Observed Median: obs_median - Simulated Median: sim_median - Simulated Median CI: sim_median_ci

One or more elements to be updated from the defaults above can be passed as a list to the argument shown. Any elements not specified in shown will inherit the defaults.

For example, let’s say we want to remove the observed data points from the plot above to better visualize the observed quntile lines relative to their corresponding simulated confidence intervals. We can do this as follows.


vpc_pc_noobs <- plot_vpc_exactbins(
  sim = simout,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  output_vars = c(PRED = "PRED", IPRED = "IPRED", SIMDV = "SIMDV", OBSDV = "OBSDV"),
  log_y = TRUE,
  xlab = "Time (hours)",
  ylab = "Concentration (ng/mL)",
  pcvpc = TRUE,
  min_bin_count = 5,
  shown = list(obs_dv = FALSE)
) +
  scale_x_continuous(breaks = seq(0,168,24))
#> Joining with `by = join_by(CMT, NTIME)`
#> Joining with `by = join_by(CMT, NTIME)`
#> Scale for x is already present. Adding another scale for x, which will replace
#> the existing scale.

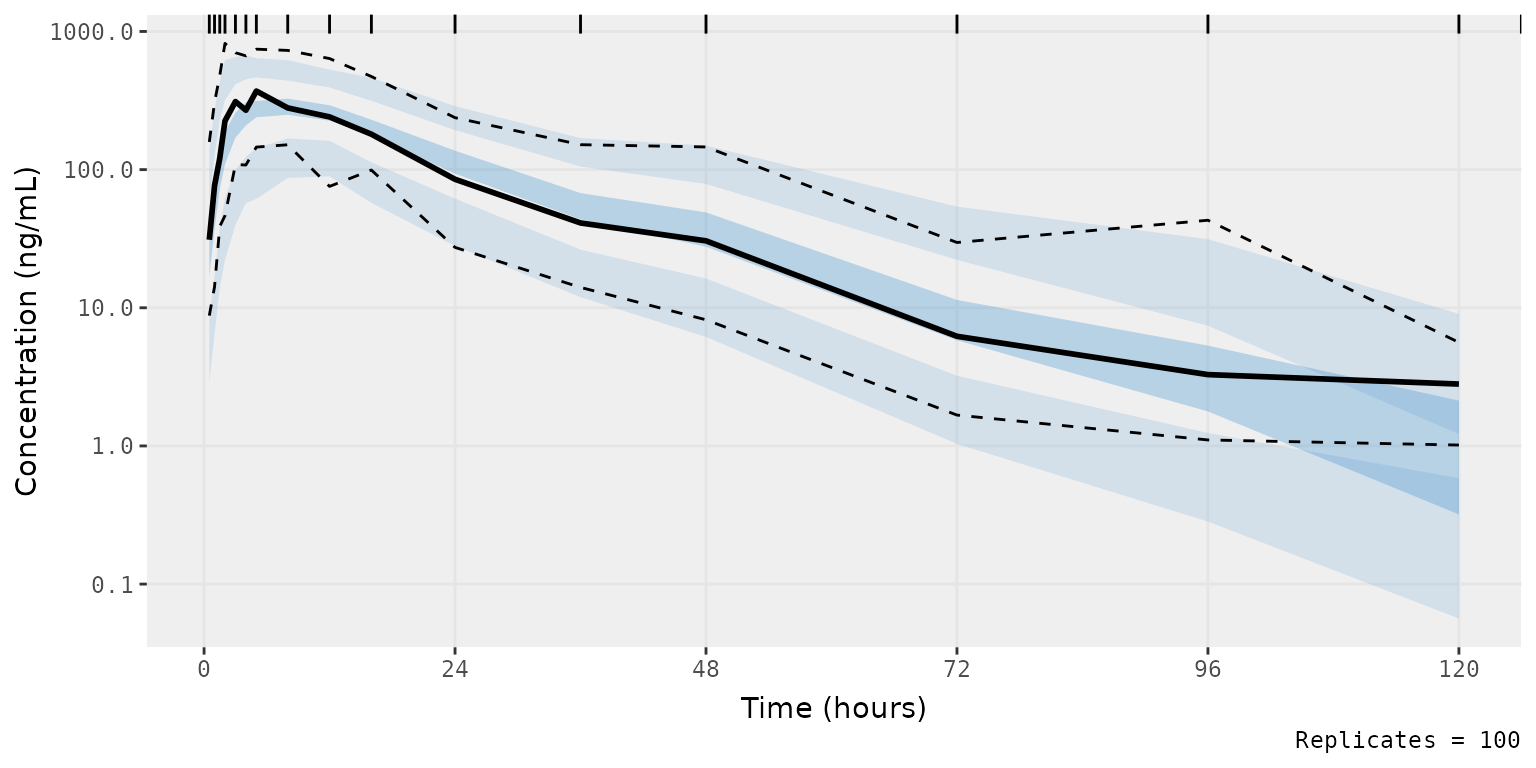

vpc_pc_noobs

We could also take this one step further and only look at the median and the simulated confidence interval of the median, to closely interrogate central tendency. This is common for VPC strata which have few observations, leading to inadrquate sample size to discriminate between the confidence intervals of the median and the extremes. This is common scenario when evaluating VPC plots stratified by individual study arms in early phase trials.


vpc_pc_noobs_medonly <- plot_vpc_exactbins(
  sim = simout,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  output_vars = c(PRED = "PRED", IPRED = "IPRED", SIMDV = "SIMDV", OBSDV = "OBSDV"),
  log_y = TRUE,
  xlab = "Time (hours)",
  ylab = "Concentration (ng/mL)",
  pcvpc = TRUE,
  min_bin_count = 5,
  shown = list(obs_dv = FALSE, obs_ci = FALSE, pi_ci = FALSE)
) +
  scale_x_continuous(breaks = seq(0,168,24))
#> Joining with `by = join_by(CMT, NTIME)`
#> Joining with `by = join_by(CMT, NTIME)`
#> Scale for x is already present. Adding another scale for x, which will replace
#> the existing scale.

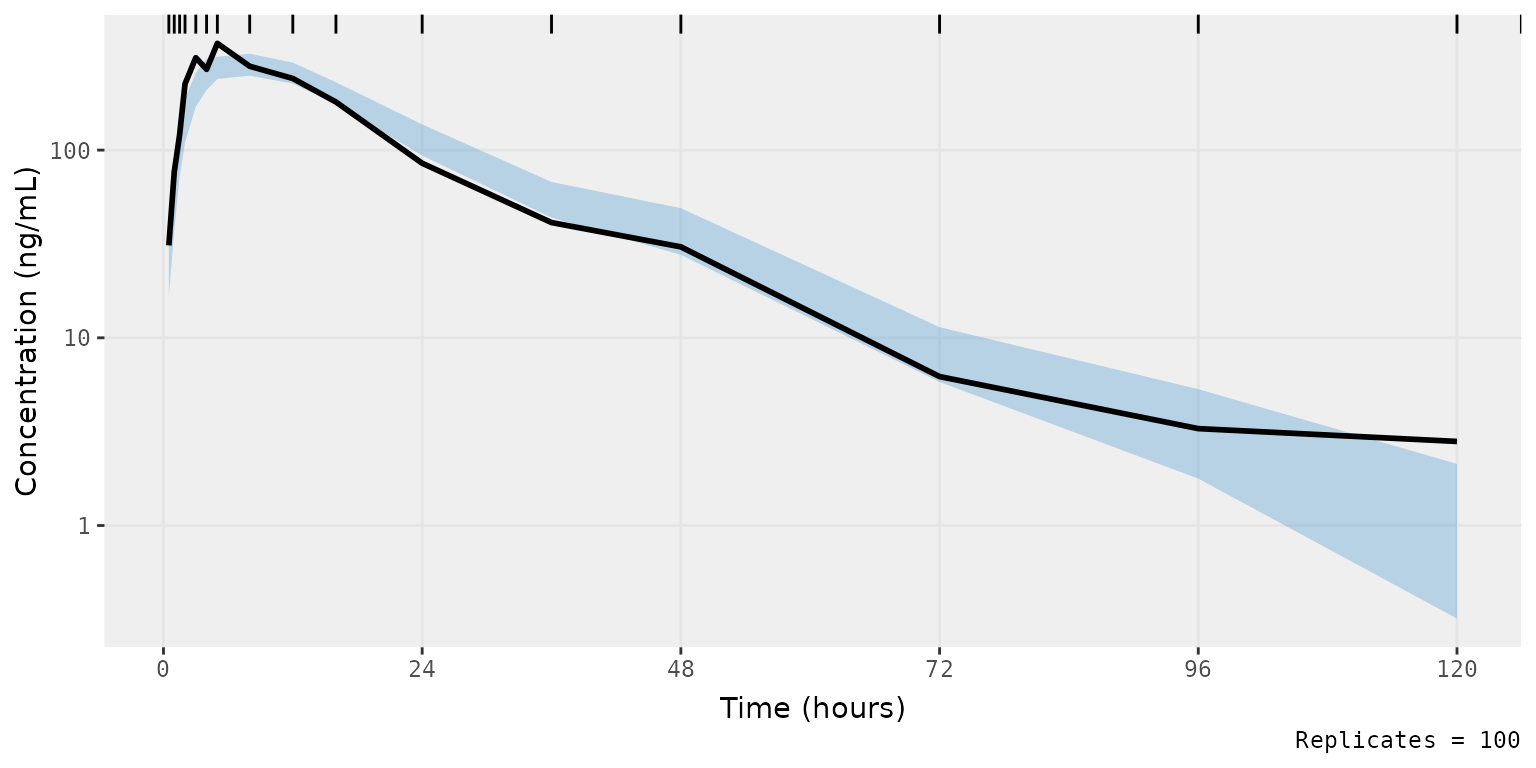

vpc_pc_noobs_medonly

Similarly, the default aesthetics for this plot are inherited from the defaults in the vpc package, which can be viewed by running new_vpc_theme() with no arguments.

vpc_theme_list <- new_vpc_theme()
print(vpc_theme_list)
#> $obs_color
#> [1] "#000000"
#>
#> $obs_size
#> [1] 1
#>
#> $obs_median_color
#> [1] "#000000"
#>
#> $obs_median_linetype
#> [1] "solid"
#>
#> $obs_median_size
#> [1] 1
#>
#> $obs_alpha
#> [1] 0.7
#>
#> $obs_shape
#> [1] 1
#>
#> $obs_ci_color
#> [1] "#000000"
#>
#> $obs_ci_linetype
#> [1] "dashed"
#>
#> $obs_ci_fill
#> [1] "#80808033"
#>
#> $obs_ci_size
#> [1] 0.5
#>
#> $sim_pi_fill
#> [1] "#3388cc"
#>
#> $sim_pi_alpha
#> [1] 0.15
#>
#> $sim_pi_color
#> [1] "#000000"
#>
#> $sim_pi_linetype
#> [1] "dotted"
#>
#> $sim_pi_size
#> [1] 1
#>
#> $sim_median_fill
#> [1] "#3388cc"
#>
#> $sim_median_alpha
#> [1] 0.3
#>
#> $sim_median_color
#> [1] "#000000"
#>
#> $sim_median_linetype
#> [1] "dashed"
#>
#> $sim_median_size
#> [1] 1
#>
#> $bin_separators_color
#> [1] "#000000"
#>
#> $loq_color
#> [1] "#990000"
#>
#> attr(,"class")
#> [1] "vpc_theme"

Now, suppose we want to change the default aesthetics of the VPC plot, without changing what is being shown. This can be accomplished by passing a named list of elements to update to the function new_vpc_theme(). The named list object generated from this function can then be passed to the theme argument in vpc_plot_exactbins, which is also an alias for the vpc_theme argument in vpc().

Let’s say we prefer a more classical VPC color schema, based only on basic red-blue-green color brewer. We will make the following changes: - Observed points blue - Observed median and simulated 90% CI of the median red - Observed 5th and 95th and simulated 90% CI of the 5th and 95th blue

vpc_theme <- new_vpc_theme(
  list(
  obs_color = rgb(0,0,1),

  obs_median_color = rgb(1,0,0),
  obs_ci_color = rgb(0,0,1),

  sim_median_fill = rgb(1,0,0),
  sim_pi_fill = rgb(0,0,1)
  )
)

Now, let’s take a look at our plot prior plot with the new color schema.

vpc_pc_new <- plot_vpc_exactbins(
  sim = simout,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  output_vars = c(PRED = "PRED", IPRED = "IPRED", SIMDV = "SIMDV", OBSDV = "OBSDV"),
  log_y = TRUE,
  xlab = "Time (hours)",
  ylab = "Concentration (ng/mL)",
  pcvpc = TRUE,
  theme = vpc_theme,
  min_bin_count = 5
) +
  scale_x_continuous(breaks = seq(0,168,24))
#> Joining with `by = join_by(CMT, NTIME)`
#> Joining with `by = join_by(CMT, NTIME)`
#> Scale for x is already present. Adding another scale for x, which will replace
#> the existing scale.

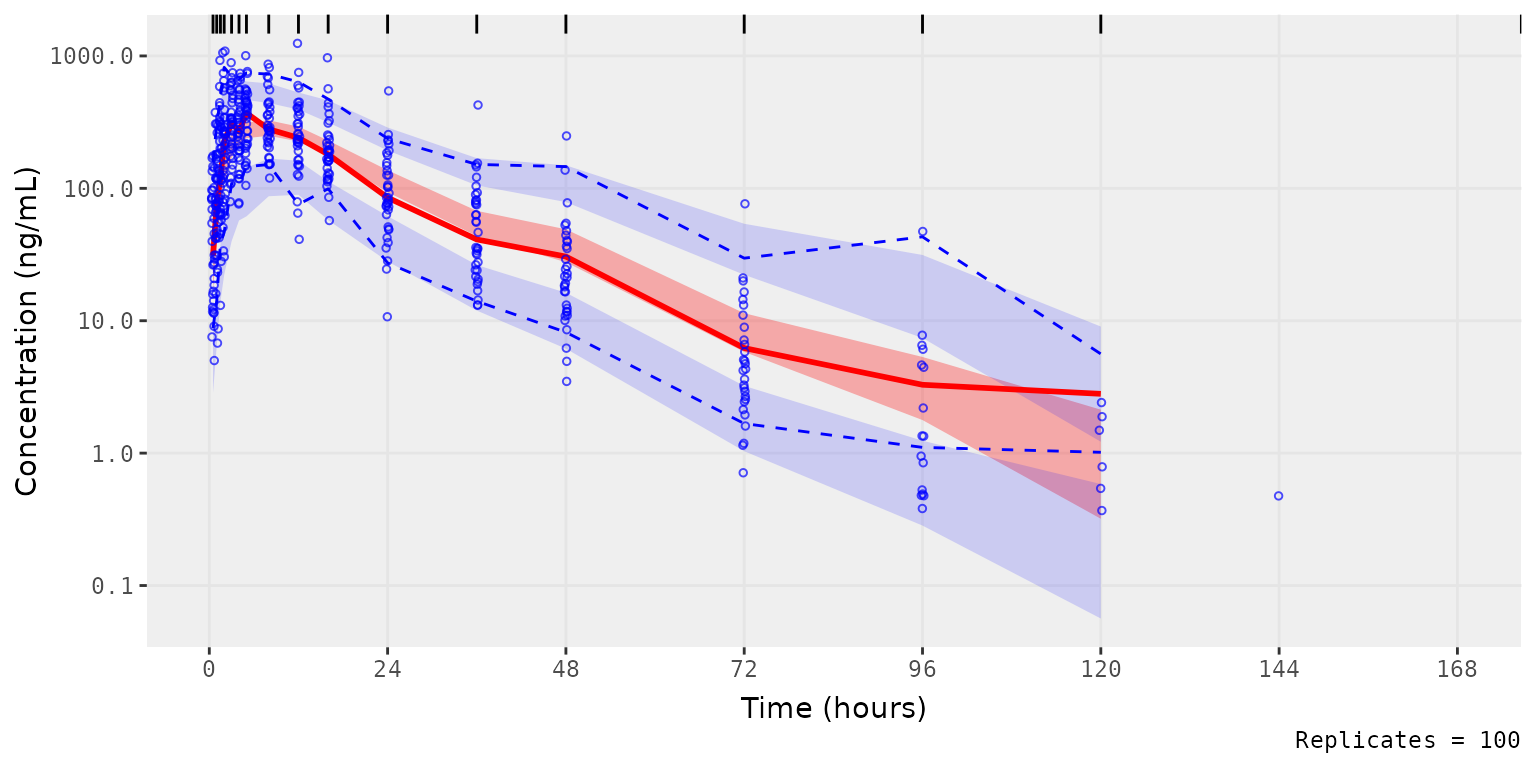

vpc_pc_new

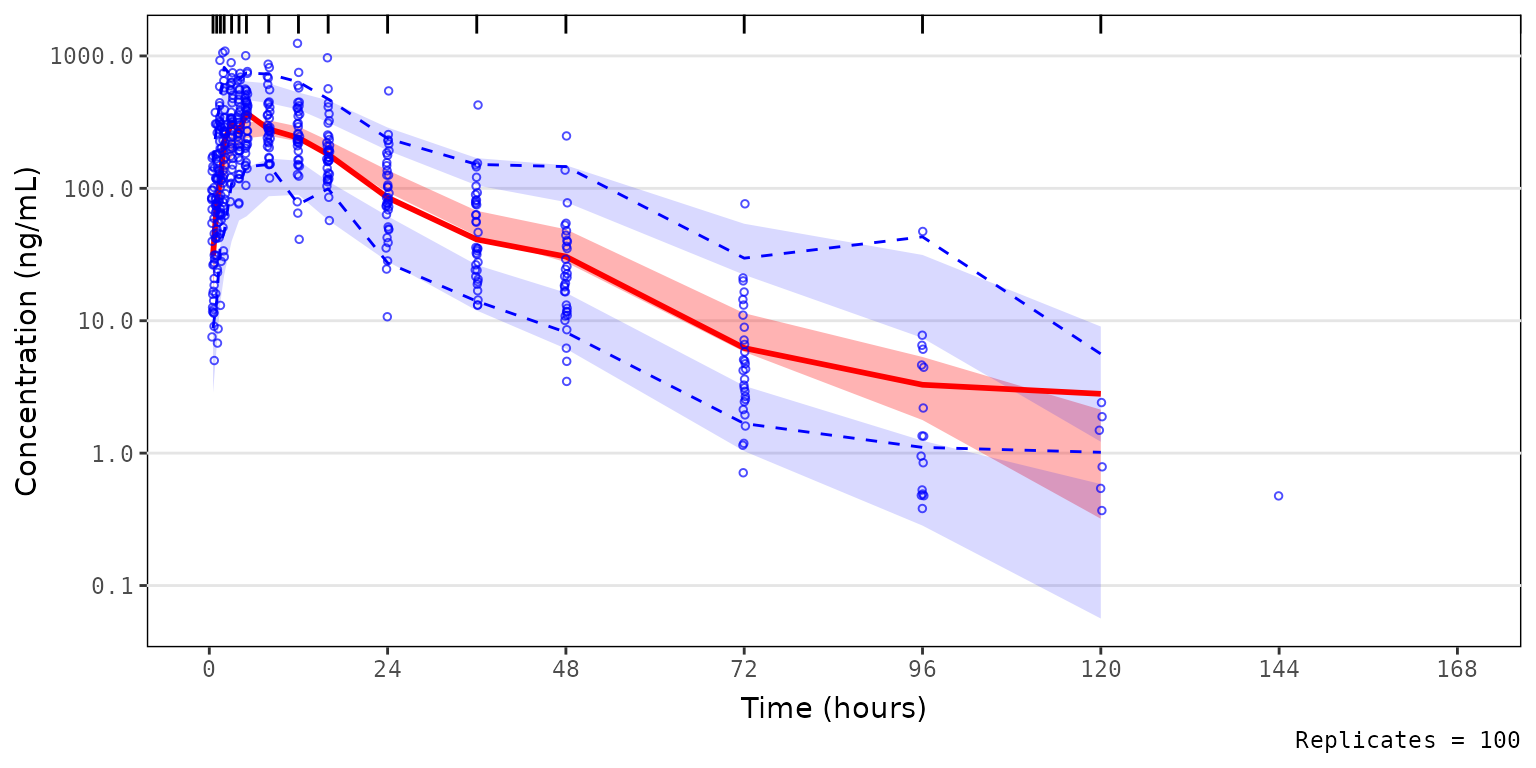

This is nice; however, I do not like the grey background and I would prefer only major y-axis grid lines without any x-axis grid lines. Conveniently, we can just add theme() elements on top of the plot object using the standard ggplot2 approach.

vpc_pc_new2 <- plot_vpc_exactbins(
  sim = simout,
  time_vars = c(TIME = "TIME", NTIME = "NTIME"),
  output_vars = c(PRED = "PRED", IPRED = "IPRED", SIMDV = "SIMDV", OBSDV = "OBSDV"),
  log_y = TRUE,
  xlab = "Time (hours)",
  ylab = "Concentration (ng/mL)",
  pcvpc = TRUE,
  min_bin_count = 5,
  theme = vpc_theme
) +
  scale_x_continuous(breaks = seq(0,168,24)) +
  theme(panel.background = element_rect(fill = "white", linewidth = 0.5, color = "black"),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank(),
        panel.grid.major.x = element_blank())
#> Joining with `by = join_by(CMT, NTIME)`
#> Joining with `by = join_by(CMT, NTIME)`
#> Scale for x is already present. Adding another scale for x, which will replace
#> the existing scale.

vpc_pc_new2

VPC Plot Legends

Okay, now we have gotten the plot aesthetics where we want them; however, there is one other element we may like to include in the figure to make it more easily interpreted in isolation - a legend.

pmxhelpr provides a useful helper function for this purpose, plot_legend(). The arguments to plot_legend() are as follows: - ci simulated confidence interval plotted. Default is c(0.05, 0.95). - pi prediction intervals plotted. Default is c(0.05, 0.95). - lloq label for lower limit of quantification in the plot legend. - update list containing the plot elements to be updated. Default is set by vpc::new_vpc_theme(). - shown Named list of logicals specifying which layers to include on the plot.

To obtain a legend for a plot using default aesthetics, simply run plot_legend() without any arguments specified.

vpc_pc_legend <- plot_legend()
vpc_pc_legend

Now we have a ggplot object legend for our first plot!

To generate one for our second plot with updated aesthetics, let’s pass the same named list object (vpc_theme) to the update argument.

vpc_pc_new_legend <- plot_legend(update = vpc_theme)
vpc_pc_new_legend

Okay, now that we have our legend plot objects, let’s combine them with the VPC plot objects into a single plot object with the patchwork package.

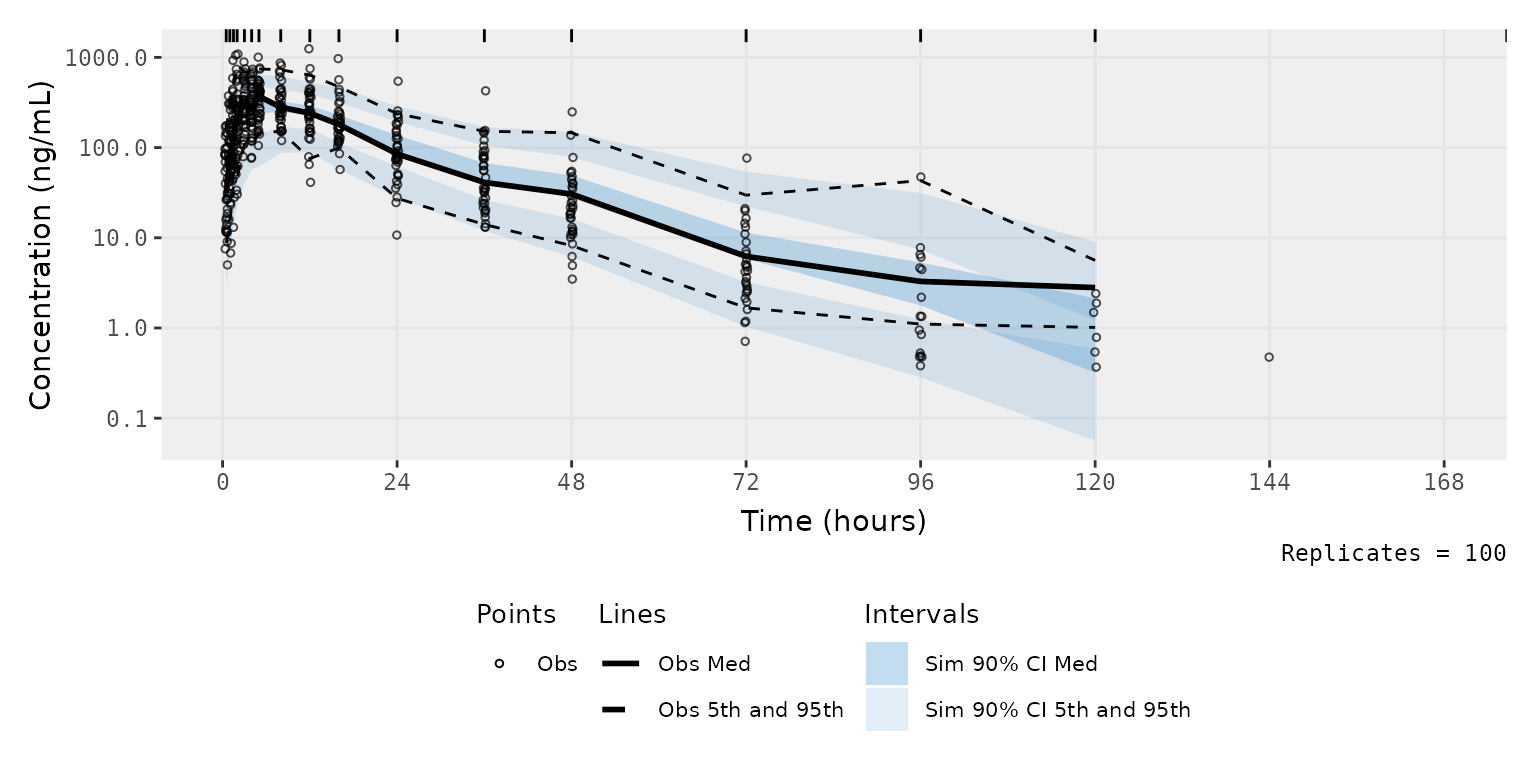

vpc_pc_wleg <- vpc_pc + vpc_pc_legend + plot_layout(heights = c(2.5,1))
vpc_pc_wleg

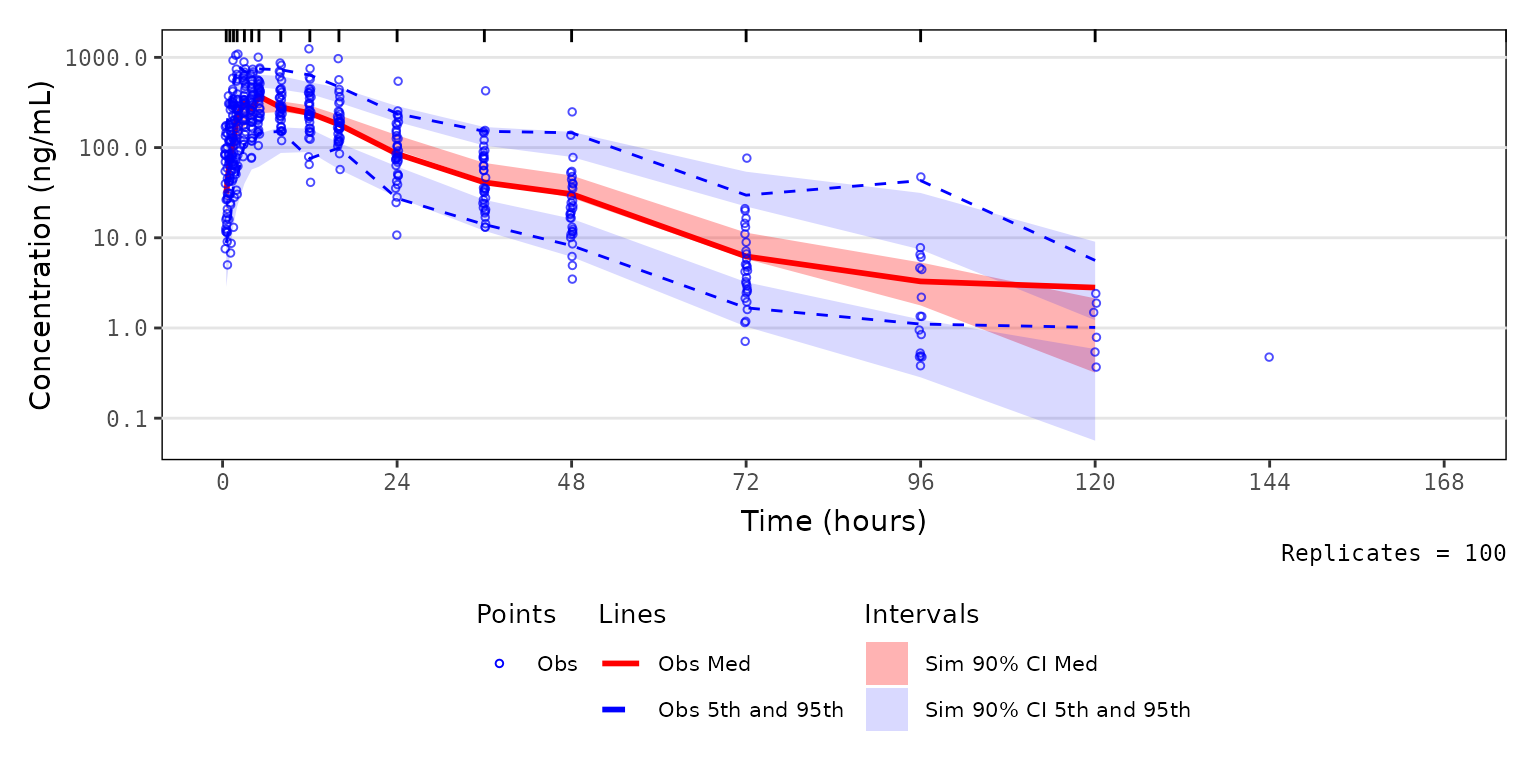

vpc_pc_new_wleg <- vpc_pc_new2 + vpc_pc_new_legend + plot_layout(heights = c(2.5,1))
vpc_pc_new_wleg
