Dose-Proportionality Workflow

Source: vignettes/articles/doseprop-workflow.Rmd
doseprop-workflow.Rmd

This vignette demonstrates the pmxhelpr dose-proportionality assessment workflow using power law (log-log) regression of exposure versus dose.

The pipeline mirrors the VPC workflow: a stats function (df_doseprop()) returns a class-tagged object, a public renderer (plot_build_doseprop()) draws plots from that object, and a top-level wrapper (plot_doseprop()) bundles both for one-shot use.

options(scipen = 999, rmarkdown.html_vignette.check_title = FALSE)
library(pmxhelpr)
library(dplyr, warn.conflicts =  FALSE)
library(ggplot2, warn.conflicts =  FALSE)

Background

Dose proportionality assessment evaluates whether exposure increases proportionally with dose. The standard approach is power law regression on the relationship

Exposure=α⋅DOSEγExposure = \alpha \cdot DOSE^\gamma

which linearizes via log transformation to

log(Exposure)=intercept+γ⋅log(DOSE)\log(Exposure) = intercept + \gamma \cdot \log(DOSE)

Hypothesis testing proceeds via the confidence interval around the power estimate (γ\gamma): the null is dose-proportional (γ=1\gamma = 1); the alternative is non-proportional (γ≠1\gamma \ne 1). Interpretation rules of thumb:

  • CI includes 1: dose-proportional
  • CI excludes 1, upper bound below 1: less than dose-proportional
  • CI excludes 1, lower bound above 1: greater than dose-proportional

This assessment is typically performed on both Cmax and AUC. The combination informs which phase of the PK profile is contributing most to non-linearity (absorption rate, absorption extent, or elimination).

Data

This vignette uses the internal data_sad_nca dataset, which is the NCA parameter output for the data_sad SAD + food-effect study. The dataset is formatted in the SDTM PP (Pharmacokinetic Parameters) domain conventions, with one row per subject per parameter.

glimpse(data_sad_nca)
#> Rows: 648
#> Columns: 11
#> $ ID         <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2,…
#> $ DOSE       <dbl> 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10,…
#> $ PART       <chr> "Part 1-SAD", "Part 1-SAD", "Part 1-SAD", "Part 1-SAD", "Pa…
#> $ start      <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
#> $ end        <dbl> Inf, Inf, Inf, Inf, Inf, Inf, Inf, Inf, Inf, Inf, Inf, Inf,…
#> $ PPTESTCD   <chr> "auclast", "cmax", "tmax", "tlast", "clast.obs", "lambda.z"…
#> $ PPORRES    <dbl> 277.7701457207, 13.4300000000, 7.8100000000, 35.9500000000,…
#> $ exclude    <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA,…
#> $ units_dose <chr> "mg", "mg", "mg", "mg", "mg", "mg", "mg", "mg", "mg", "mg",…
#> $ units_conc <chr> "ng/mL", "ng/mL", "ng/mL", "ng/mL", "ng/mL", "ng/mL", "ng/m…
#> $ units_time <chr> "hours", "hours", "hours", "hours", "hours", "hours", "hour…

For dose-proportionality assessment we want to focus on the SAD cohort and exclude the food-effect arm — food can also influence exposure and may confound dose-proportionality interpretation.

data_nca1 <- filter(data_sad_nca, PART == "Part 1-SAD")
unique(data_nca1$PART)
#> [1] "Part 1-SAD"

Computing summary statistics with df_doseprop()

The required arguments are:

  • data — a data.frame of NCA parameters (typically PKNCA::pk.nca() output)
  • metrics — character vector of exposure metric names to evaluate
dose_prop_obj <- df_doseprop(data_nca1, metrics = c("aucinf.obs", "cmax"))
dose_prop_obj
#> <doseprop_stats>
#>   stats: 2 rows x 10 columns
#>   obs:   60 rows
#>   config: metric_name_var = PPTESTCD, metric_value_var = PPORRES, dose_var = DOSE, ci = 0.9, method = normal
#>
#>   stats body:
#>   Intercept StandardError  CI Power   LCL  UCL Proportional
#> 1      3.97        0.0438 90% 0.979 0.907 1.05         TRUE
#> 2      1.06        0.0616 90% 1.060 0.959 1.16         TRUE
#>                            PowerCI    Interpretation   PPTESTCD
#> 1 Power: 0.979 (90% CI 0.907-1.05) Dose-proportional aucinf.obs
#> 2  Power: 1.06 (90% CI 0.959-1.16) Dose-proportional       cmax
#>
#>   Use `x$obs` for the observation overlay.

Optional arguments must be specified if input dataset defaults differ from SDTM formatting and PKNCA defaults:

  • metric_name_var: variable in data containing metric names requested in metrics, default PPTESTCD.
  • metric_value_var: variable in data containing exposure metric values, default PPORRES.

The default argument for the numeric dose variable dose_var is DOSE.

stats <- dose_prop_obj$stats
stats
#>   Intercept StandardError  CI Power   LCL  UCL Proportional
#> 1      3.97        0.0438 90% 0.979 0.907 1.05         TRUE
#> 2      1.06        0.0616 90% 1.060 0.959 1.16         TRUE
#>                            PowerCI    Interpretation   PPTESTCD
#> 1 Power: 0.979 (90% CI 0.907-1.05) Dose-proportional aucinf.obs
#> 2  Power: 1.06 (90% CI 0.959-1.16) Dose-proportional       cmax

The stats slot holds the per-metric estimates from the log log regression, which contains all the information needed to format an output table.

Adjusting the summary statistics

The summary statistics calculated from the log-log regression of exposure versus dose can be customized using the following arguments:

  • method: distribution used to calculate the confidence interval: Default is "normal". Alternative is "tdist", which may be preferred for analysis with a small sample size where normality cannot be assumed (e.g, < 30).
  • ci: confidence interval to return expressed as a proportion. Default is "0.9" based on the CI recommended for the bioequivalence assessment.
  • sigdigits: number of significant digits to return in outputs

The example below modifies the previous calculation by requesting the tdist method, 95%, and rounding to only 2 significant digits.

dose_prop_obj_95ci_tdist <- df_doseprop(data_nca1,
                                        metrics = c("aucinf.obs", "cmax"),
                                        method = "tdist",
                                        ci = 0.95,
                                        sigdigits = 2)
dose_prop_obj_95ci_tdist
#> <doseprop_stats>
#>   stats: 2 rows x 10 columns
#>   obs:   60 rows
#>   config: metric_name_var = PPTESTCD, metric_value_var = PPORRES, dose_var = DOSE, ci = 0.95, method = tdist
#>
#>   stats body:
#>   Intercept StandardError  CI Power  LCL UCL Proportional
#> 1       4.0         0.044 95%  0.98 0.89 1.1         TRUE
#> 2       1.1         0.062 95%  1.10 0.93 1.2         TRUE
#>                         PowerCI    Interpretation   PPTESTCD
#> 1 Power: 0.98 (95% CI 0.89-1.1) Dose-proportional aucinf.obs
#> 2  Power: 1.1 (95% CI 0.93-1.2) Dose-proportional       cmax
#>
#>   Use `x$obs` for the observation overlay.

Plotting with plot_doseprop()

plot_doseprop() is the top-level wrapper that bundles df_doseprop() and plot_build_doseprop(). The required arguments are the same as df_doseprop(). The output is a ggplot object with one panel per metric, where the facet label includes the metric name and the PowerCI text.

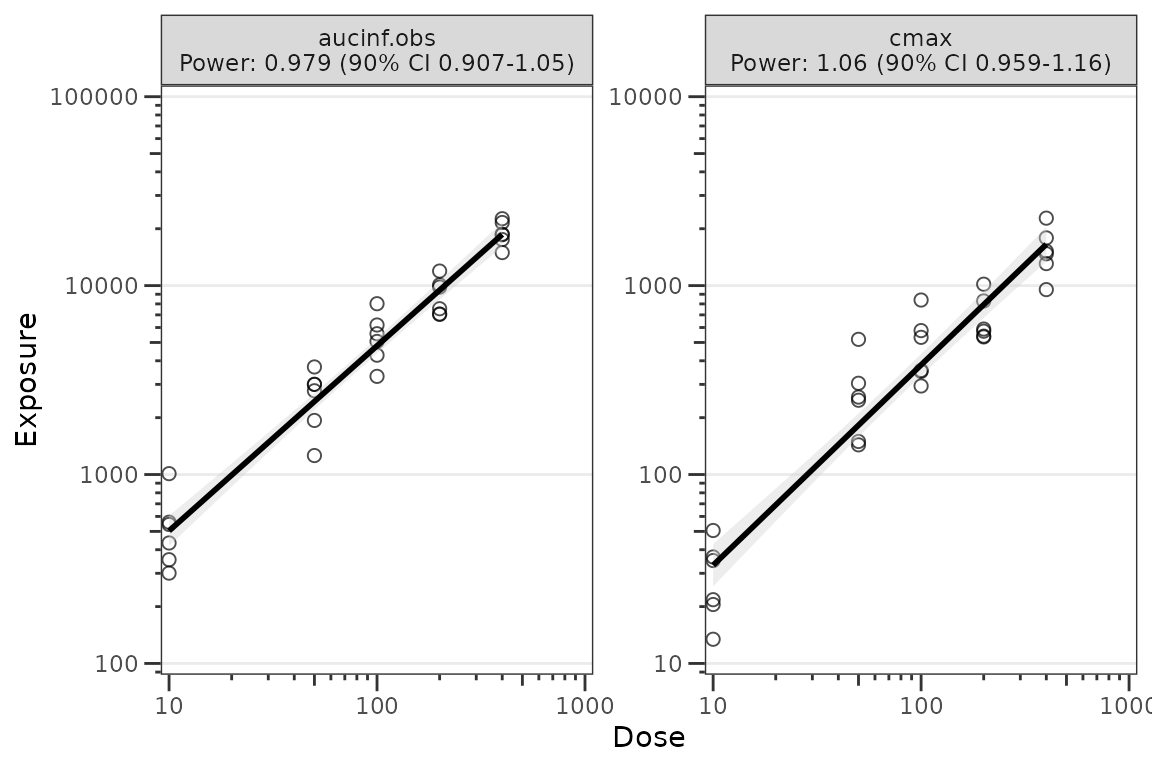

plot_doseprop(data_nca1, metrics = c("aucinf.obs", "cmax"))

The default appearance uses open circles at alpha = 0.7 for the observation points and a black regression line with a grey SE ribbon. This matches the package design language for exploratory plots. To restore filled black circles with full opacity, override obs_point via the style argument (see Styling below).

Passing summary-statistic arguments through plot_doseprop()

The summary statistics calculated from the log-log regression of exposure versus dose can be customized using the following arguments:

  • method: distribution used to calculate the confidence interval: Default is "normal". Alternative is "tdist", which may be preferred for analysis with a small sample size where normality cannot be assumed (e.g, < 30).
  • ci: confidence interval to return expressed as a proportion. Default is "0.9" based on the CI recommended for the bioequivalence assessment.
  • sigdigits: number of significant digits to return in outputs
plot_doseprop(data_nca1,
              metrics = c("aucinf.obs", "cmax"),
              method = "tdist",
              ci = 0.95,
              sigdigits = 2)

Reusing precomputed stats

plot_doseprop() also accepts a doseprop_stats object directly. This skips the regression refit and is useful when you want to inspect the stats object and then render the same data multiple times — for example, with and without the SE ribbon, or with different aesthetic overrides — without paying the regression cost again.

# With the SE ribbon (default)
plot_doseprop(dose_prop_obj)


# Without the SE ribbon

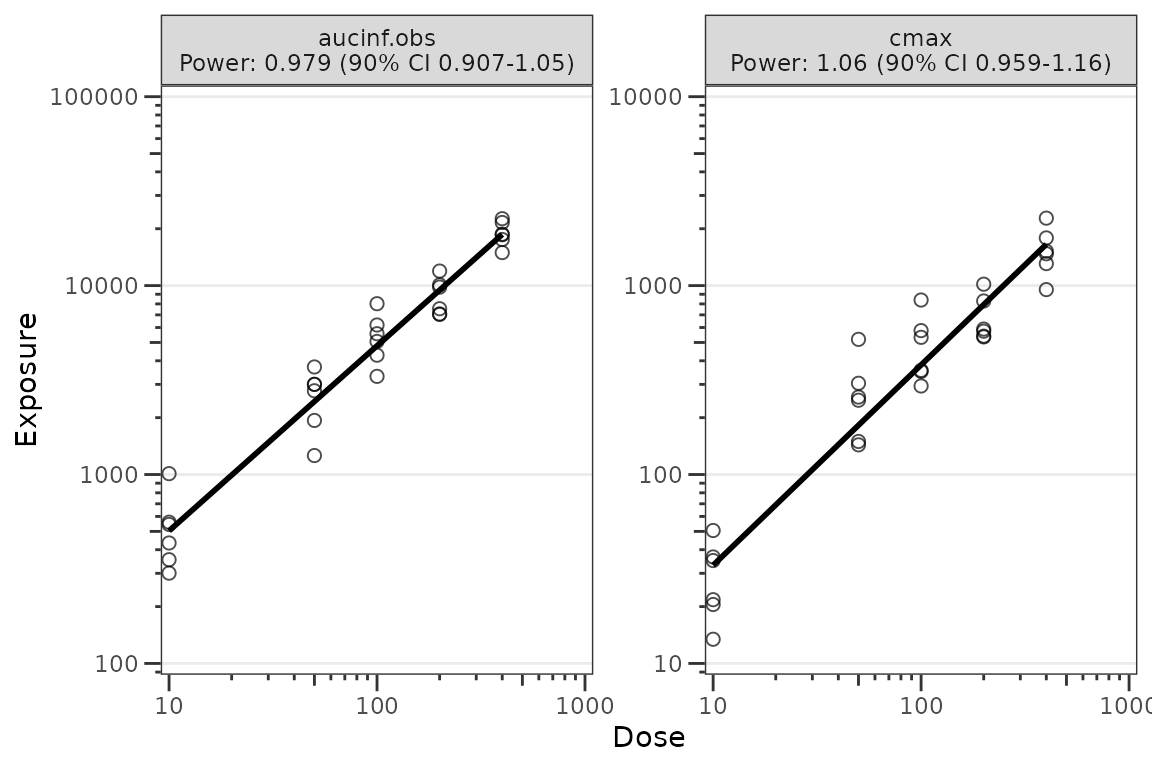

plot_doseprop(dose_prop_obj, se = FALSE)

When data is a precomputed doseprop_stats result, the pipeline arguments (metrics, metric_name_var, metric_value_var, dose_var, method, ci, sigdigits) cannot be honored — those decisions were already made when df_doseprop() ran, and re-passing them on the cached path would silently shadow the original values. Passing any of them aborts with a message pointing the caller back at df_doseprop(). Only plot-only arguments (style, se) are accepted on this path; to change a regression setting, re-run df_doseprop() and pass the new result.

Inspecting the doseprop_stats object

df_doseprop() performs the per-metric log-log regression and returns a doseprop_stats [pmx_stats][is_pmx_stats] object with three slots:

  • stats (one row per metric),
  • obs (the observation rows used for the scatter overlay)
  • config (the regression configuration). Downstream plot builders read directly from these slots to render without a refit.

The returned object is class-tagged c("doseprop_stats", "pmx_stats"), which provides three S3 methods designed for interactive inspection.

print() shows a focused summary — object dimensions, the regression configuration values (metric_name_var, metric_value_var, dose_var, ci, method), the count of observation rows attached for the scatter overlay, and the per-metric stats body.

print(dose_prop_obj)
#> <doseprop_stats>
#>   stats: 2 rows x 10 columns
#>   obs:   60 rows
#>   config: metric_name_var = PPTESTCD, metric_value_var = PPORRES, dose_var = DOSE, ci = 0.9, method = normal
#>
#>   stats body:
#>   Intercept StandardError  CI Power   LCL  UCL Proportional
#> 1      3.97        0.0438 90% 0.979 0.907 1.05         TRUE
#> 2      1.06        0.0616 90% 1.060 0.959 1.16         TRUE
#>                            PowerCI    Interpretation   PPTESTCD
#> 1 Power: 0.979 (90% CI 0.907-1.05) Dose-proportional aucinf.obs
#> 2  Power: 1.06 (90% CI 0.959-1.16) Dose-proportional       cmax
#>
#>   Use `x$obs` for the observation overlay.

summary() shares the header but condenses the body to one line per metric using the PowerCI and Interpretation columns. This is the most compact way to scan the assessment.

summary(dose_prop_obj)
#> <doseprop_stats>
#>   stats: 2 rows x 10 columns
#>   obs:   60 rows
#>   config: metric_name_var = PPTESTCD, metric_value_var = PPORRES, dose_var = DOSE, ci = 0.9, method = normal
#>
#>   per-metric:
#>     aucinf.obs: Power: 0.979 (90% CI 0.907-1.05) -- Dose-proportional
#>     cmax: Power: 1.06 (90% CI 0.959-1.16) -- Dose-proportional

as.data.frame() returns the stats slot as a plain data.frame — useful when downstream tooling expects a flat tabular result. The observation overlay and run configuration remain accessible via dose_prop_obj$obs and dose_prop_obj$config.

plain <- as.data.frame(dose_prop_obj)
class(plain)
#> [1] "data.frame"
dose_prop_obj$config$metric_name_var
#> [1] "PPTESTCD"

Use is_doseprop_stats() to test class membership programmatically — for example, in user code that should accept either a precomputed doseprop_stats object or a raw NCA data.frame. Pass strict = TRUE to additionally validate structural integrity.

is_doseprop_stats(dose_prop_obj)
#> [1] TRUE
is_doseprop_stats(plain)  # FALSE -- coerced to a plain data.frame
#> [1] FALSE

Styling

Plot aesthetics are customized via the style argument and the style_doseprop() preset, which returns a ggstylekit::style_spec(). The relevant roles are:

  • obs_point — observation point aesthetics
  • linear — regression line (colors/linewidths/linetypes) and SE ribbon (base line_fill, ribbon alpha via the linear entry of alphas)
style_doseprop()
#> <ggstylekit_style_spec>
#>   colors                 black
#>   fill                   NULL
#>   linetypes              solid
#>   alphas                 0.7, 0.4
#>   shapes                 1
#>   sizes                  2
#>   linewidths             1
#>   point_color            NULL
#>   point_alpha            NULL
#>   point_size             NULL
#>   point_shape            NULL
#>   line_color             NULL
#>   line_alpha             NULL
#>   line_linetype          NULL
#>   line_linewidth         NULL
#>   line_fill              lightgrey
#>   errorbar_color         NULL
#>   errorbar_alpha         NULL
#>   errorbar_linetype      NULL
#>   errorbar_linewidth     NULL
#>   errorbar_width         NULL
#>   errorbar_fill          NULL
#>   bar_fill               NULL
#>   bar_color              NULL
#>   bar_alpha              NULL
#>   bar_linewidth          NULL
#>   area_fill              NULL
#>   area_color             NULL
#>   area_alpha             NULL
#>   area_linewidth         NULL
#>   box_fill               NULL
#>   box_color              NULL
#>   box_alpha              NULL
#>   box_linewidth          NULL
#>   title                  NULL
#>   xlabel                 NULL
#>   ylabel                 NULL
#>   xlims                  NULL
#>   ylims                  NULL
#>   logx                   NULL
#>   logy                   NULL
#>   xbreaks                NULL
#>   ybreaks                NULL
#>   xminor_breaks          NULL
#>   yminor_breaks          NULL
#>   xtick_labels           NULL
#>   ytick_labels           NULL
#>   xorder                 NULL
#>   yorder                 NULL
#>   equal_axis             NULL
#>   legends                NULL
#>   legend.position        NULL
#>   legend.title.position  top
#>   legend_nrow            NULL
#>   legend_ncol            NULL
#>   legend.title.hjust     NULL
#>   caption_hjust          NULL
#>   fill_alpha             NULL
#>   facet                  NULL
#>   facet_scales           NULL
#>   facet_nrow             NULL
#>   facet_ncol             NULL
#>   theme                  <ggplot2 theme>

A typical override:

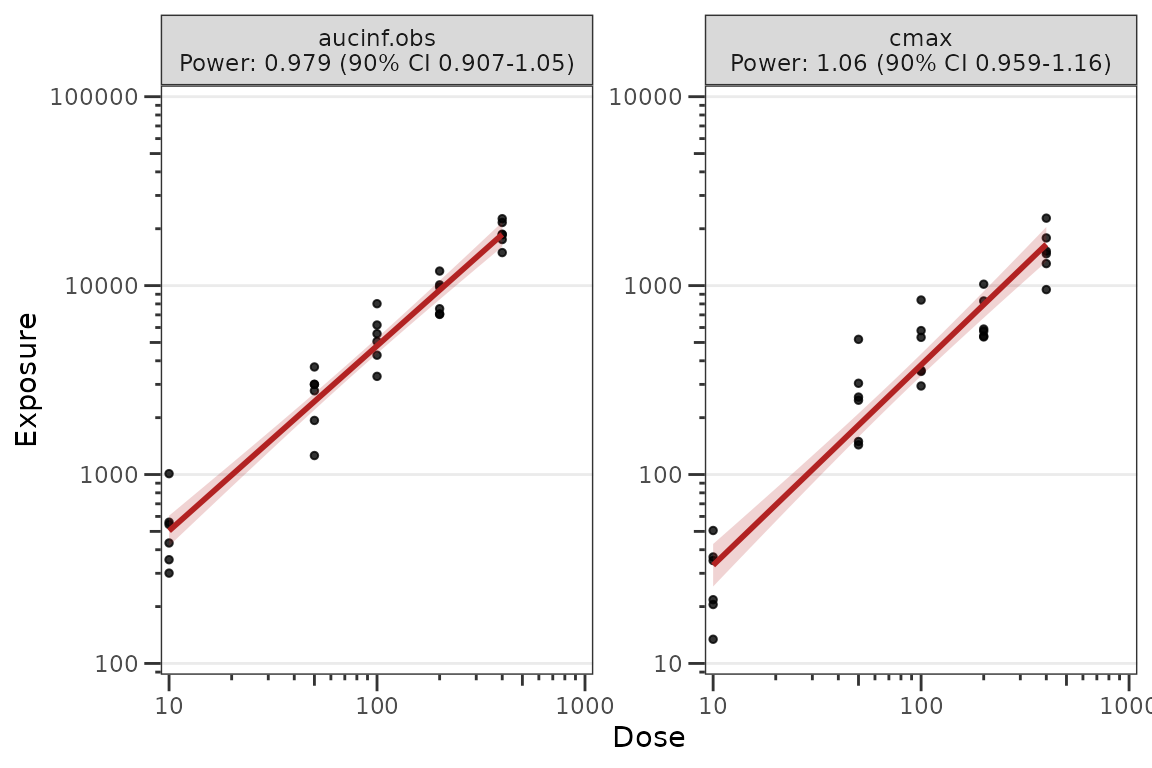

plot_doseprop(
  dose_prop_obj,
  style = style_doseprop(
    shapes    = c(obs_point = 19),
    colors    = c(obs_point = "black", linear = "firebrick"),
    alphas    = c(obs_point = 0.8, linear = 0.2),
    sizes     = c(obs_point = 1),
    line_fill = "firebrick")
)

For a deeper treatment of the styling system — style_spec() fields, per-role maps, and post-hoc restyle_plot() / reveal() — see the Plot Styling and Aesthetics vignette.

See also
