Plot stats::stepfun

Plot stats::stepfun

Usage

# S3 method for class 'stepfun'
autoplot(
  object,
  colour = NULL,
  size = NULL,
  linetype = NULL,
  alpha = NULL,
  shape = 1,
  xlim = c(NA, NA),
  ylim = c(NA, NA),
  log = "",
  main = NULL,
  xlab = NULL,
  ylab = NULL,
  asp = NULL,
  ...
)

Arguments

object

stats::stepfun instance

colour

colour

size

point size

linetype

line type

alpha

alpha

shape

point shape

xlim

limits for x axis

ylim

limits for y axis

log

which variables to log transform ("x", "y", or "xy")

main

character vector or expression for plot title

xlab

character vector or expression for x axis label

ylab

character vector or expression for y axis label

asp

the y/x aspect ratio

...

other arguments passed to methods

Value

ggplot

Examples

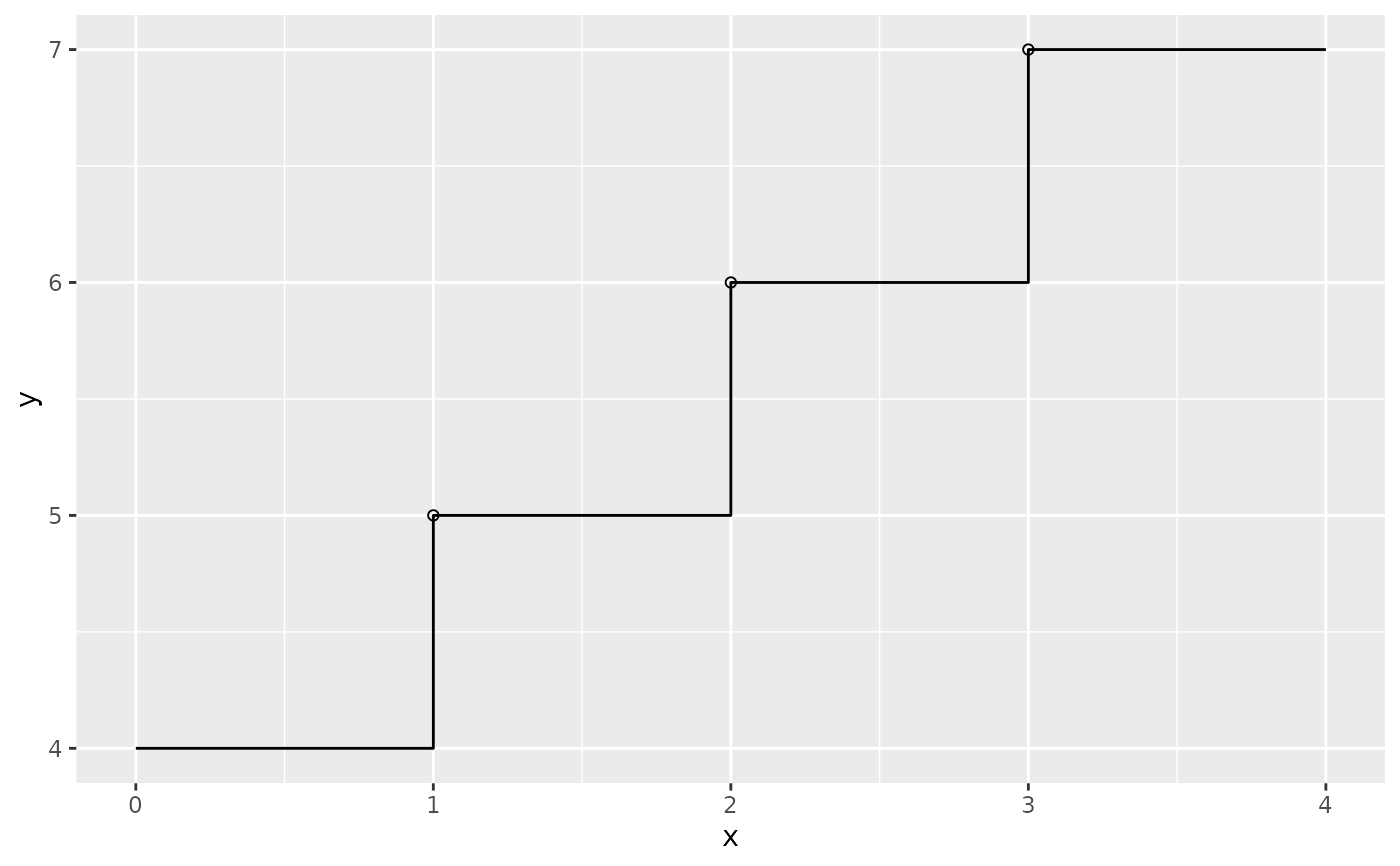

autoplot(stepfun(c(1, 2, 3), c(4, 5, 6, 7)))

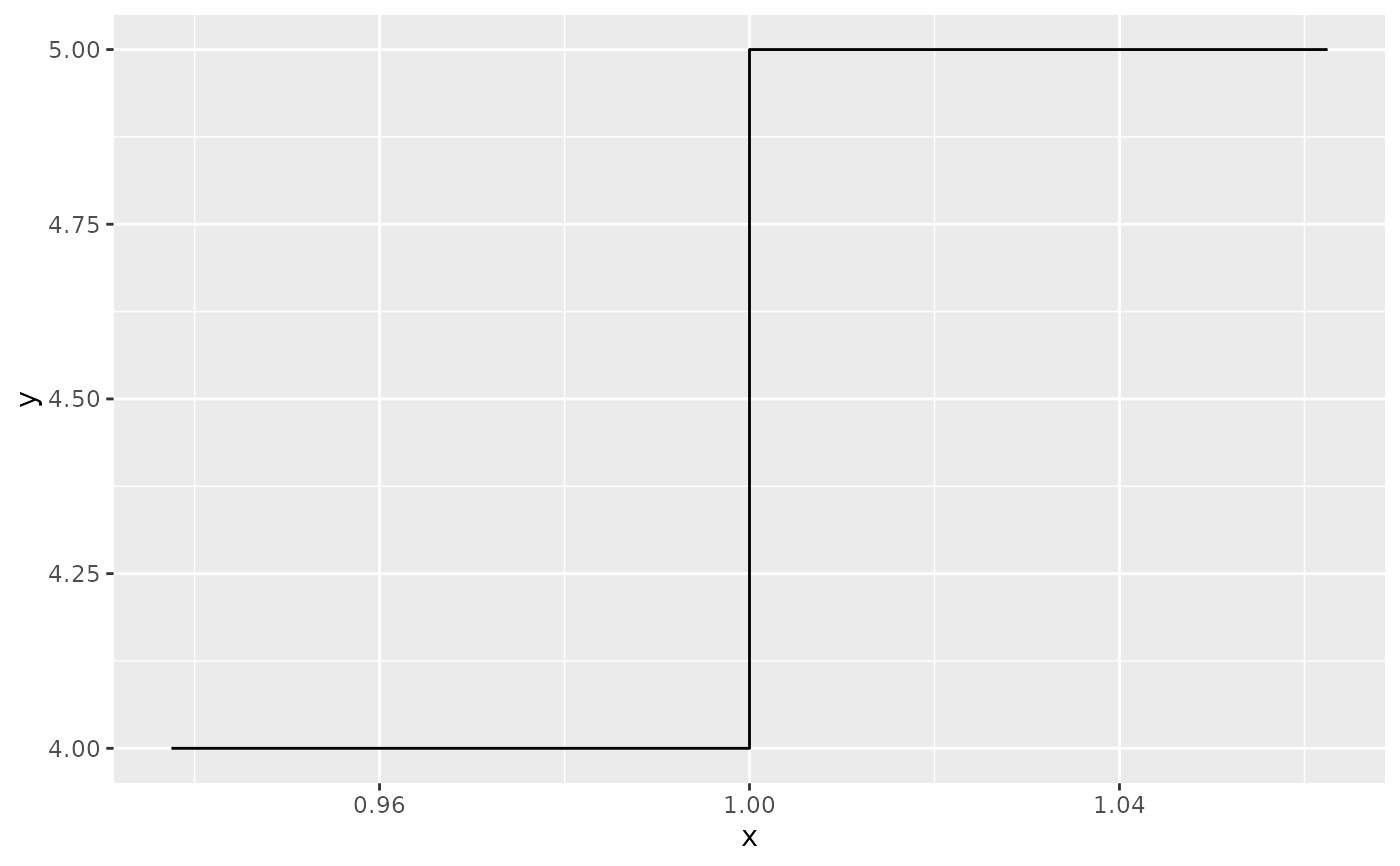

autoplot(stepfun(c(1), c(4, 5)), shape = NULL)

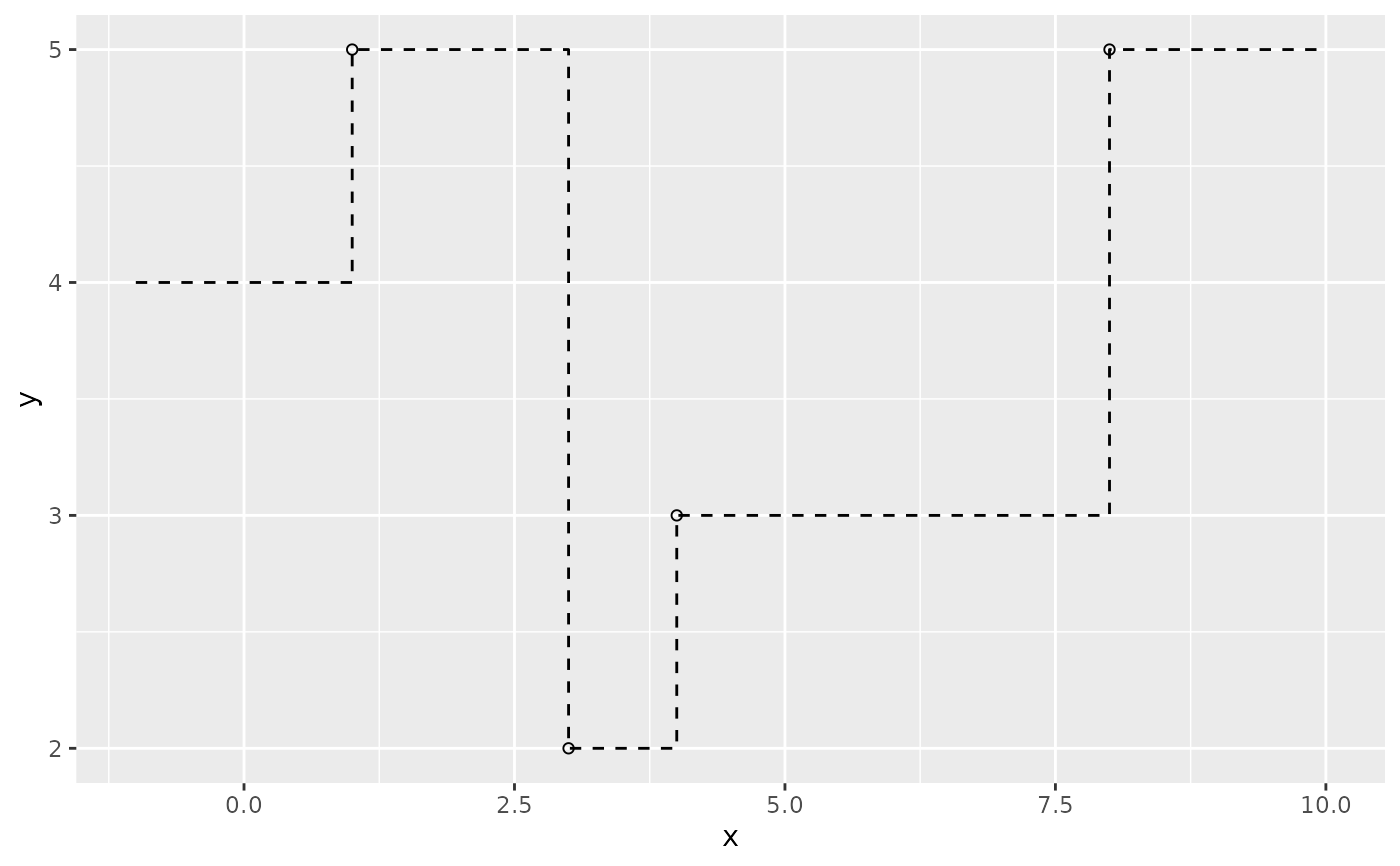

autoplot(stepfun(c(1, 3, 4, 8), c(4, 5, 2, 3, 5)), linetype = 'dashed')

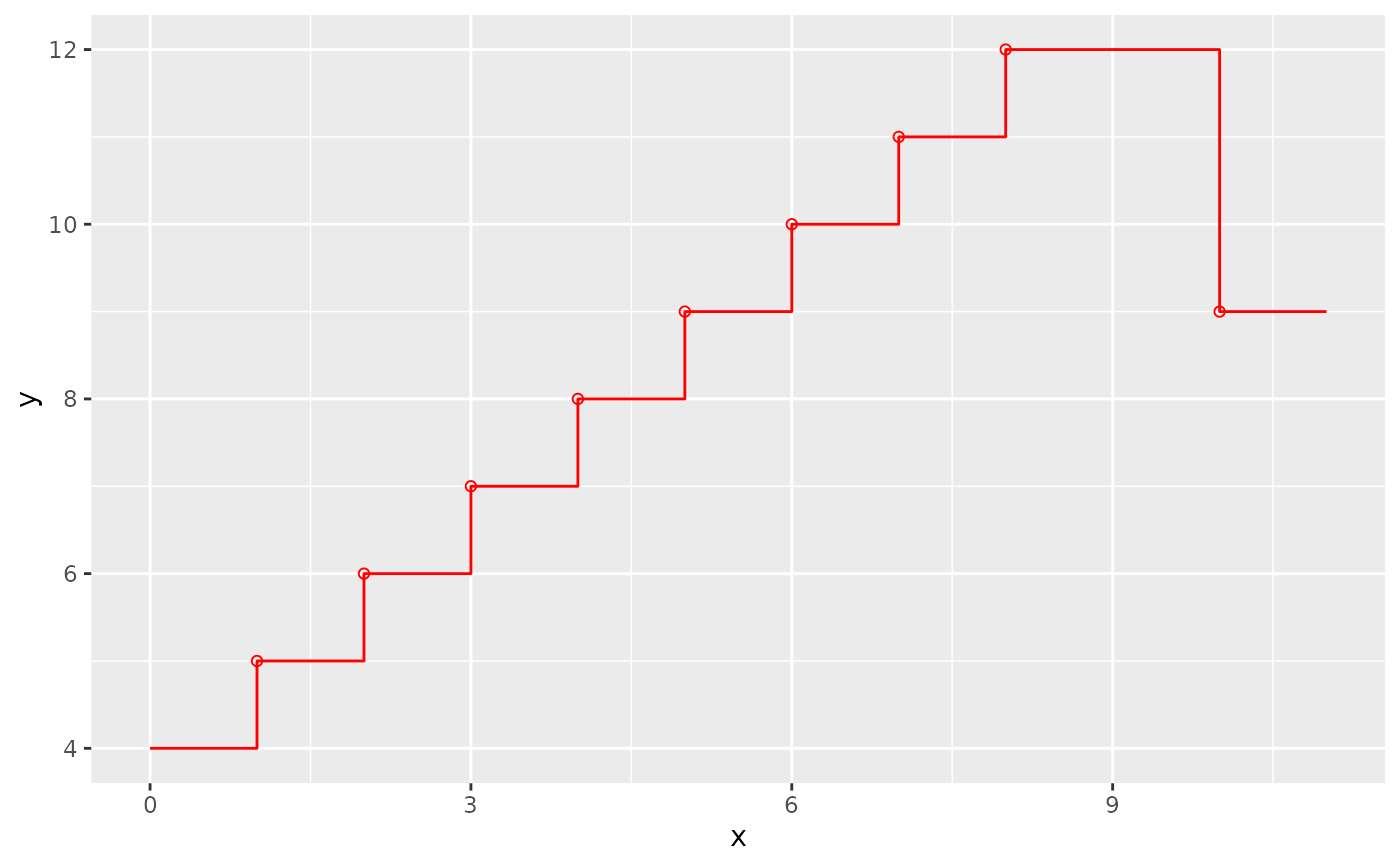

autoplot(stepfun(c(1, 2, 3, 4, 5, 6, 7, 8, 10), c(4, 5, 6, 7, 8, 9, 10, 11, 12, 9)), colour = 'red')
